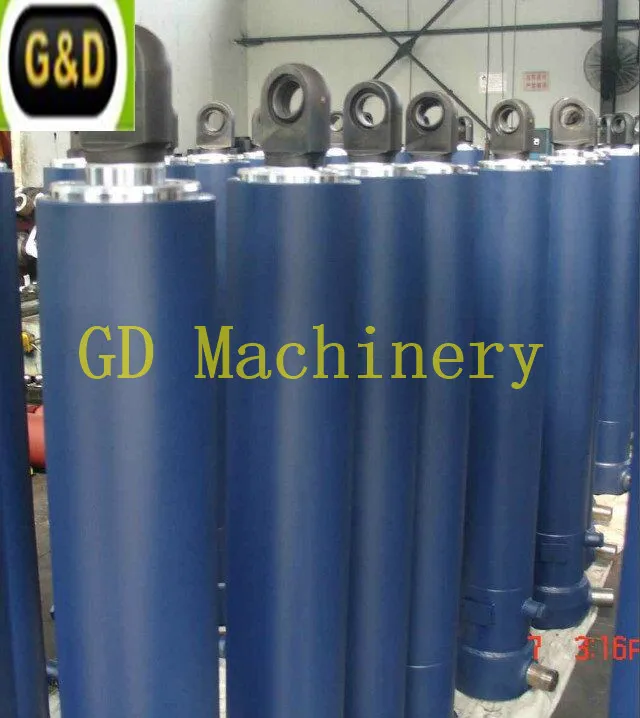

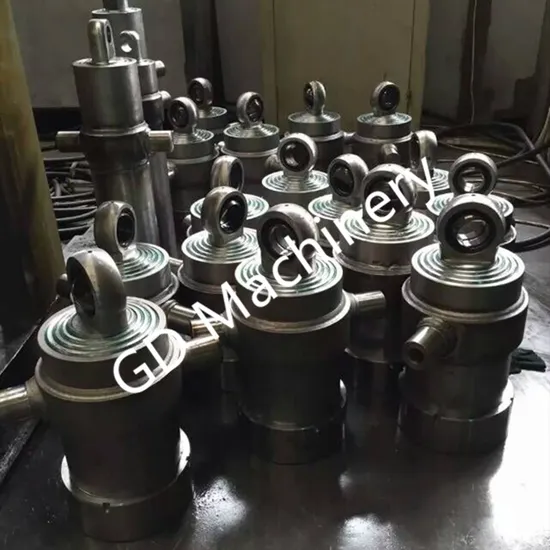

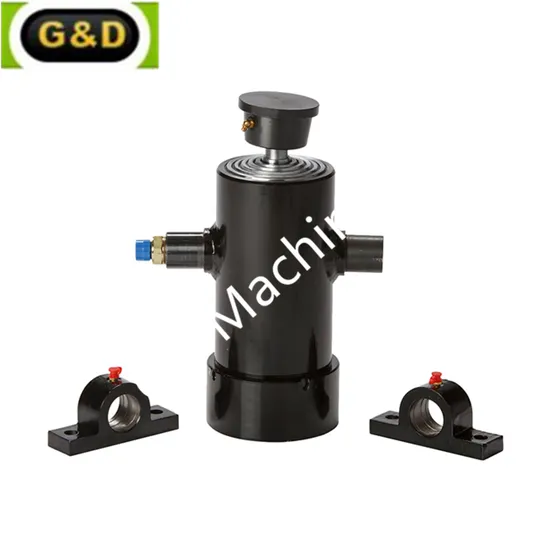

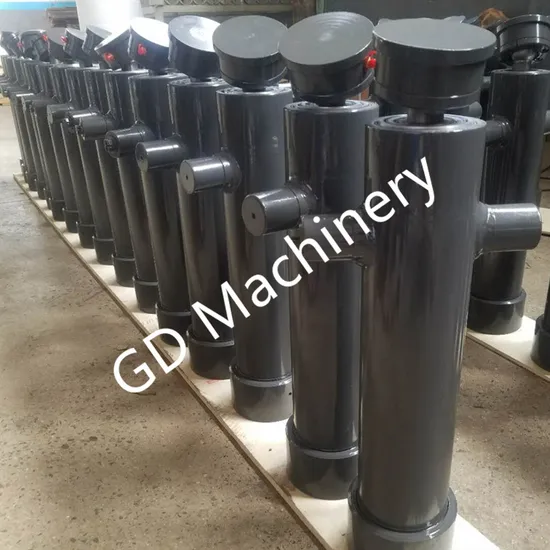

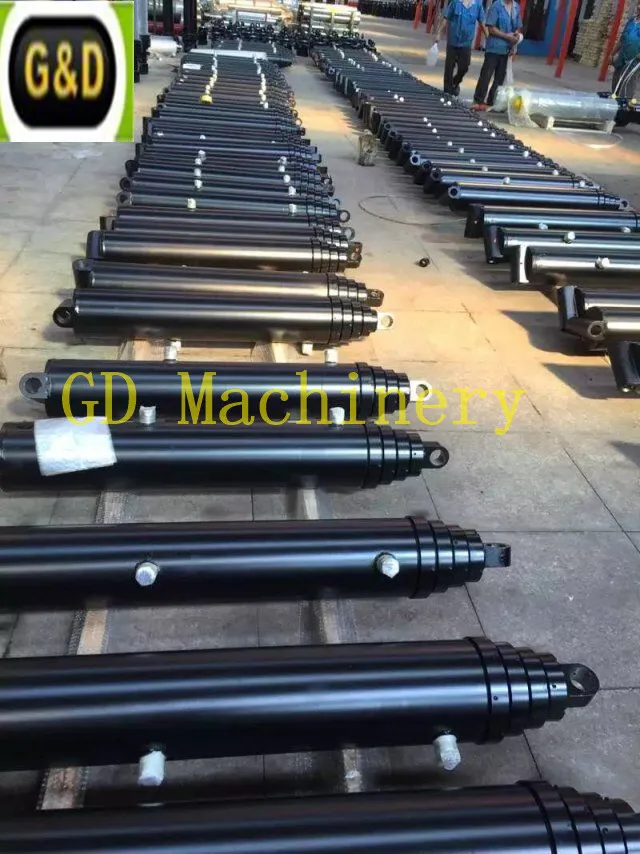

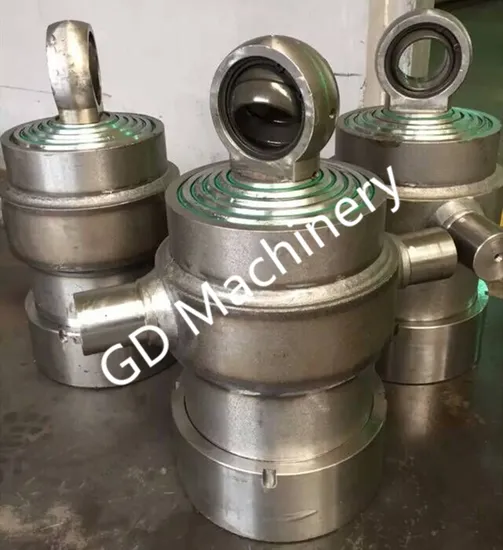

Single Acting Telescopic Cylinder
SAT SERIES
The new Series SAT represents a substantial design upgrade to the previous Series SAT cylinder line. Custom SAT cylinders are available in a large variety of styles and configurations to accommodate even the most rigorous and demanding mobile equipment.
Additionally, the new SAT design features a changeable base bearing and overall lighter weight than the previous model. Extensive field testing involving nine cylinder models have taken place in large OEMs, Internal testing with three different models run at 16 hours per day, 15,000 pound loads and 33,000 cycles have shown no failures.
PERFORMANCE CHARACTERISTICS
1026 Steel, A36 Steel
13.8 Mpa
Various Operating Fluids
Various options availabe based on application requirements
Up to 17" inch
up to 500 inch
Up to 16" inch
-40 DEG TO 275 DEG F °F
Every single acting telescopic cylinder is individually tested before leaving our plant to assure proper performance and leak-free operation. All cylinder products carry one year warranty.
Markets:
• Truck
• Refuse
• Mining
• Material Handling
• Forestry
• Construction
Features and Benefits:

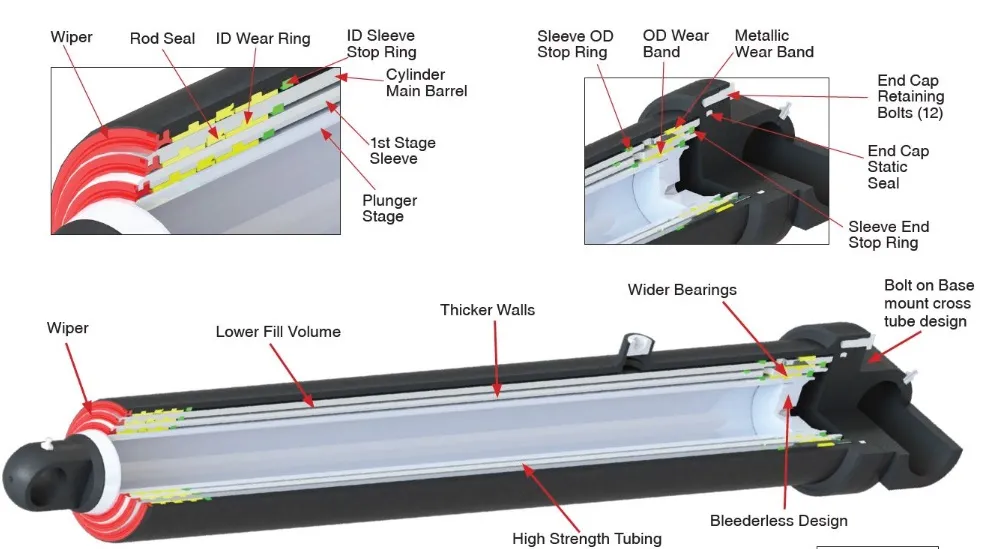

• Snap on glass filled bearings that absorb contaminants without damaging cylinder walls.
• Nylon tipped set screws that conform to packing nut threads to decrease the probability of packing nuts backing off.
• 18-month warranty.
Applications:
• Dump Trucks and Trailers
• Mining Vehicles
• Material Handling Vehicles
• Construction Vehicles
Single Acting Telescopic Hydraulic Cylinders provide extremely long cycle life and are field-repairable.Our telescopic cylinders are 2,000 PSI rated and support application specific requirements (stroke lengths, closed lengths, and mountings).
Learn more about GD Single Acting Hydraulic Telescopic Cylinder operating pressure and design features under Product Support.

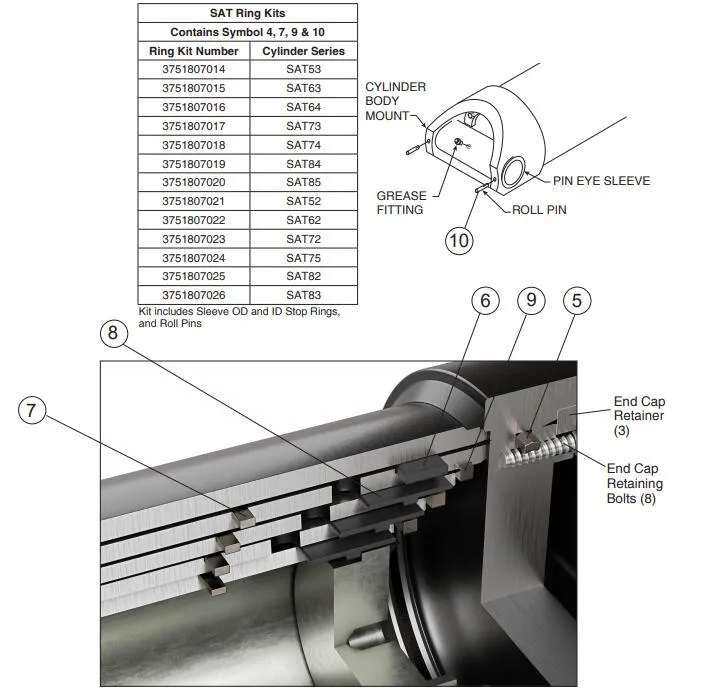

Please kindly check our Seal kits .
| Qingdao GD Machinery CO.,LTD. | |
| Product | |
| tie rod hydraulic cylinder, welded hydraulic cylinder, telescopic cylinders cylinder, flange type hydraulic cylinder, hydraulic cylinder with valve function, hydraulic power unit, Hydraulic manifold block, pneumatic fitting, | |
| Material | Tube - Cold Drawn Precision seamless Tubing Mounts - Trunnion with angular Swivels |
| Application | Agriculture, Concrete & Asphalt, Forestry & Logging,Mining & Rock Crushing, Snow & Ice Control,Waste Management Engineering Equipment |
| Feature | 1.High quality with a reasonable price 2.ISO9001-2008 3.Customized specification are accepted |
| Payment | T/T;L/C,WESTERN UNION. |
| Port | Qingdao ,China |
| Quotation | According to the specific request |
| MOQ | According to the product |
| Packaging | metal case;plywood case;carton or as requirement |
| Delivery time | 30days upon receipt of 30% deposit; or upon receipt of relevant L/C; |

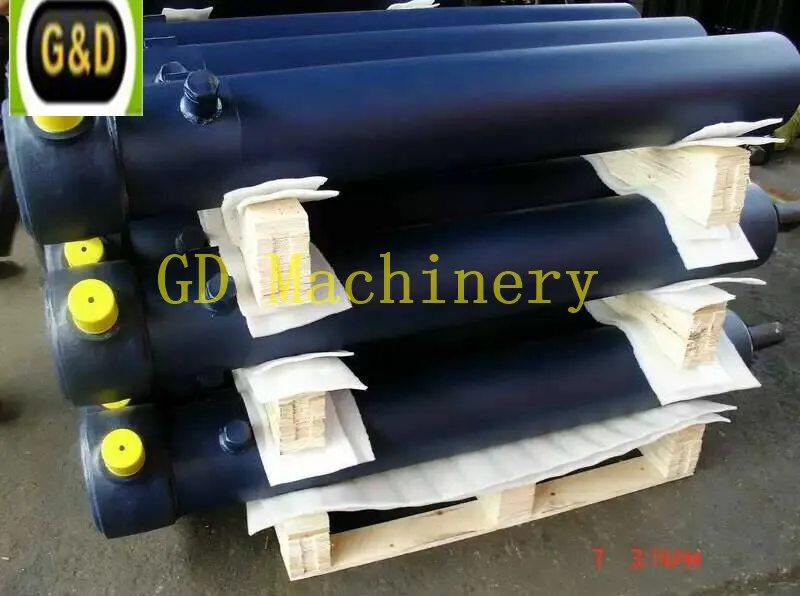

Packaging
We use metal case,plywood case /carton or as Customer's requirements
Hydraulic cylinders can be built according to your drawings or technical requirement.
Sample order are acceptable
Please kindly contact:
