Clutch Brake Unit for Textile Machinery

Customization:	Available
After-sales Service:	One Year
Warranty:	One Year

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

GD400

Part

Clutch Disc

Material

Steel

Classification

Pneumatically Operated

Certification

CE, RoHS

Usage

Heavy Duty Trucks, Tractors

Working Mode

Power Combining

Working State

No linkage

Transport Package

Export Standard Pallet

Trademark

GD

Origin

China

Production Capacity

5000per Month

Packaging & Delivery

Package Size

380.00cm * 300.00cm * 350.00cm

Package Gross Weight

80.000kg

Product Description

Clutch Brake Unit for Textile machinery Fiber twisters,Weaving machines
Metal Finishing system: Extruders, wire stretchers, presses, welder
Lathes, Millers, Hoists, feeder, Paper making system
Air actuated clutch-brake unit Precision and long service life
Features of GD clutch-brake:
Does not require adjustment
Sealed cylinder ensures low air consumption
Single friction face design virtually eliminates drag torque

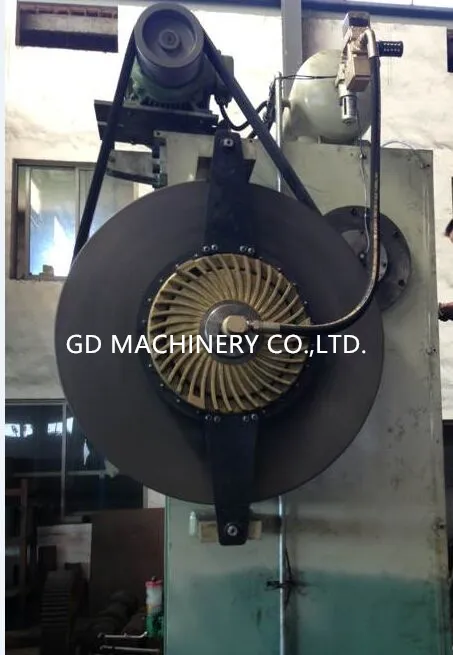

Clutch Brake Unit for Textile Machinery

Product description:

Body material: DUCtile cast iron--- Superior quality, good mechannical properties.

Springs and sealings parts: Durable non asbestos composite material---prolong clutch's life.

Shaft diameter: 20-220mm, torque is 100-400000N.m.

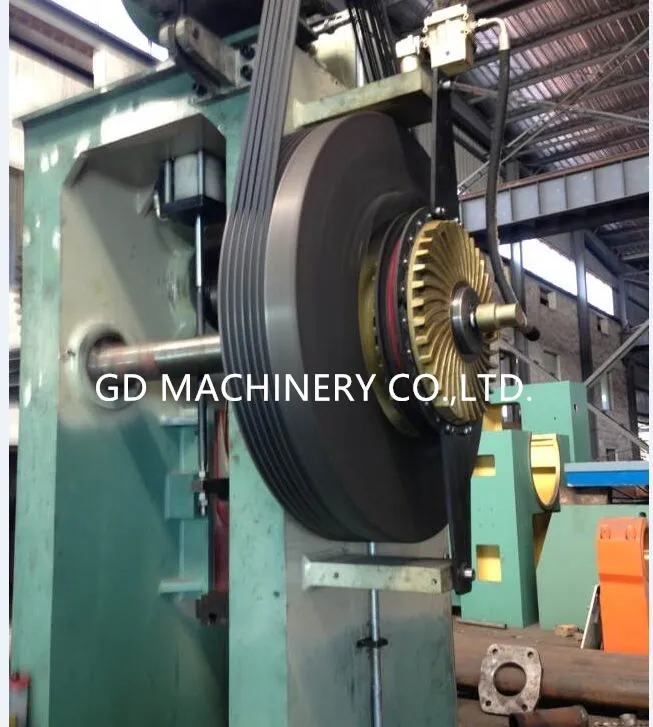

Die cutting machine pneumatic clutch and brake unit

Clutch: The air filling from shaft two air inlet ports
Piston compressed braking springs, brake released, clutch linked.
On the contrary, if exhausting air pressure, braking springs return back, brake linked, clutch released.

Features:

1. Design compact, easy installation.
---Large torque, small axial dimention, various installation types for various kinds of working situations.

2. Performance evaluation: Clutch mainly adapts modified phenolic resin and little toughening material as adhesives. Inorganic fiber and a
small amount of organic fiber with friction material as regulator.

3. Using for Cold heading machinery, high speed stamping machinery, forging and stamping machinery, high precision punch machinery, textile machinery, paper making machinery, die cutting machinery, cutting machinery.

4. Replace friction plate without disassemble element.
