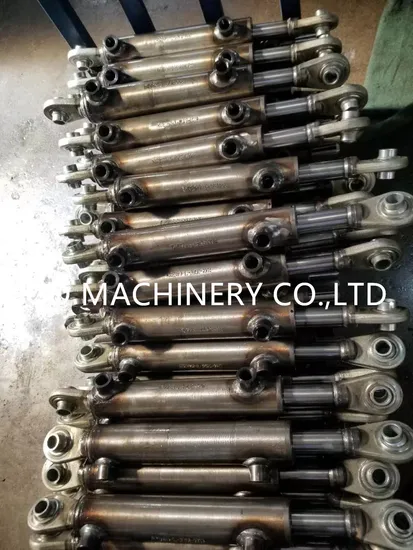

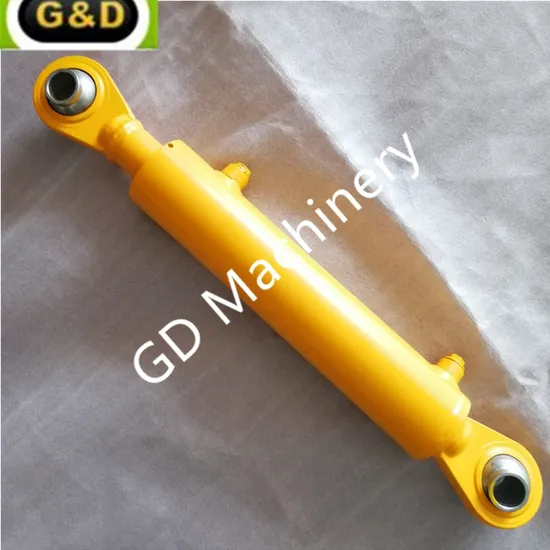

1.5 in. Bore X 8 in. Stroke Wsb, 1 in. Rod Diameter Swivel Ball Welded Hydraulic Cylinder

Double Acting Welded Swivel Mount Hydraulic Ram Used by Farming Back Blades & Plows

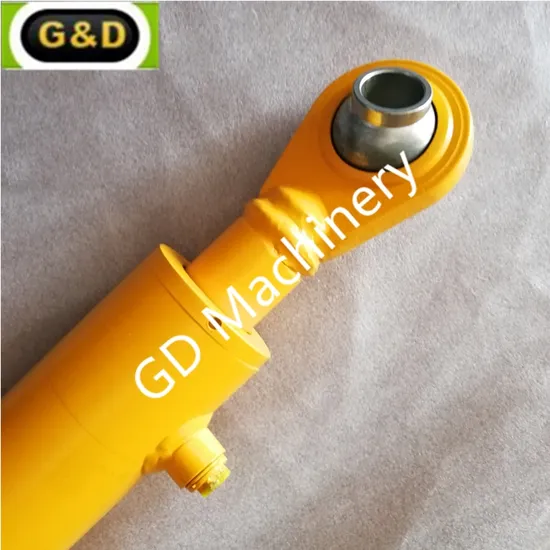

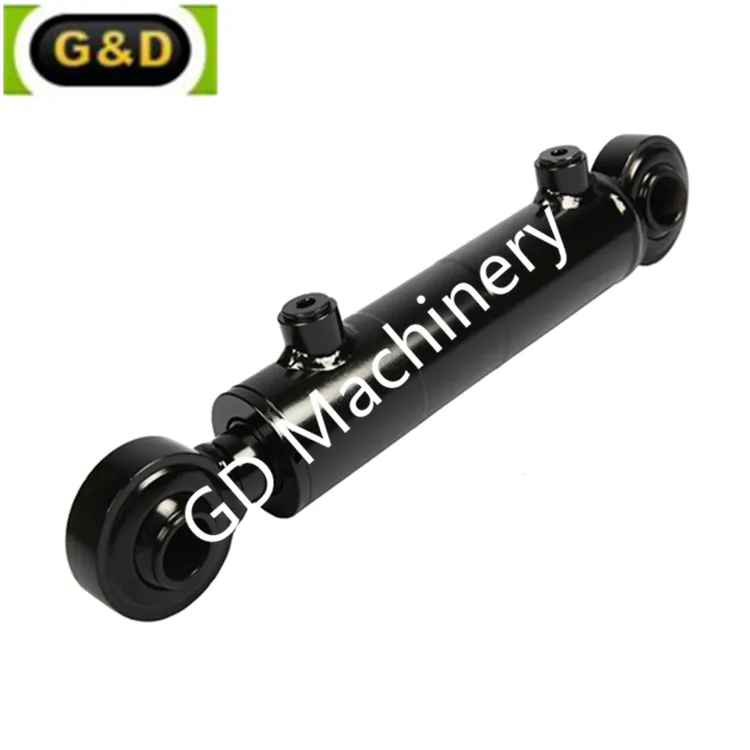

The GD 1.5 in. Bore x 8 in. Stroke WSB Swivel Ball Welded Hydraulic Cylinder features swivel ball mounts, which make it great for use on compact equipment. The swivel ball hydraulic cylinder is designed for demanding applications and comes built to ensure maximum reliability and performance. A truly versatile design, this hydraulic cylinder is intended for double-acting applications, and it performs in those applications masterfully.

• Intended use of swivel ball hydraulic cylinder: double-acting applications
• Piston: ductile iron
• Piston lock nut: nylock nut
• Gland: ductile iron with rod wear band
• Steel tube is honed or skived for extended seal life
• Tube seal: O-ring and backup
• Ground and polished hard chrome-plated rod for durability
• Rod seal: U-cup
• Wiper: polyurethane
• End mounts: spherical
• All seals: manufactured to US specifications
• Ports: O-ring boss
• Paint: black
• 1.5 in. bore hydraulic cylinder has 8 in. strokes
• Measures 15.25 in. retracted and 23.25 in. extended
• Column load: 5,300 lb.
• Pin diameter of 0.75 in. and rod diameter of 1 in.
• 1 year warranty
• Maximum PSI: 3,000 PSI

About Our Company

Qingdao GD Machinery Co., Ltd. is a specialized manufacturer and trader with main products: hydraulic cylinders, hydraulic power units, hydraulic manifolds-blocks, hydraulic flanges,pneumatic cylinders and custom-made components and parts, like industrial valves.

Our sales markets have covered our sales markets have covered North America, Europe, Australia and Japan.

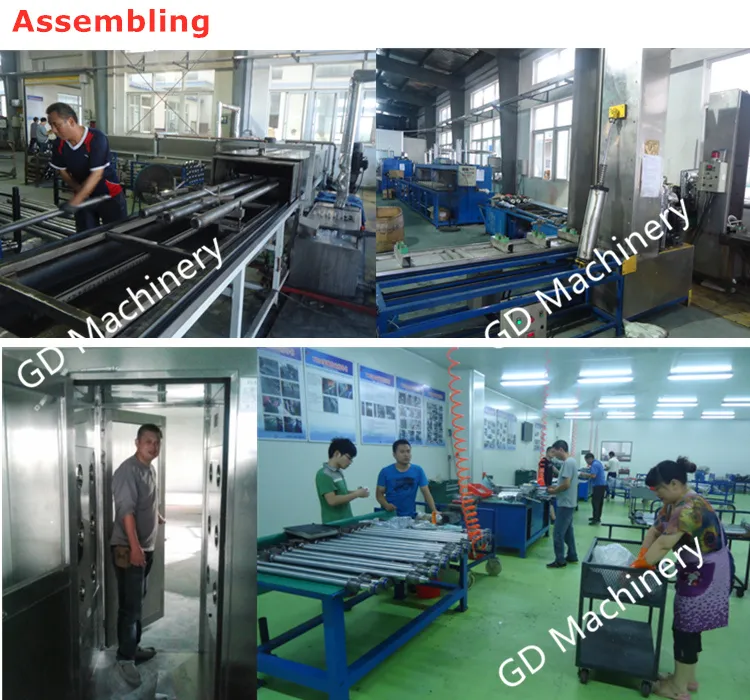

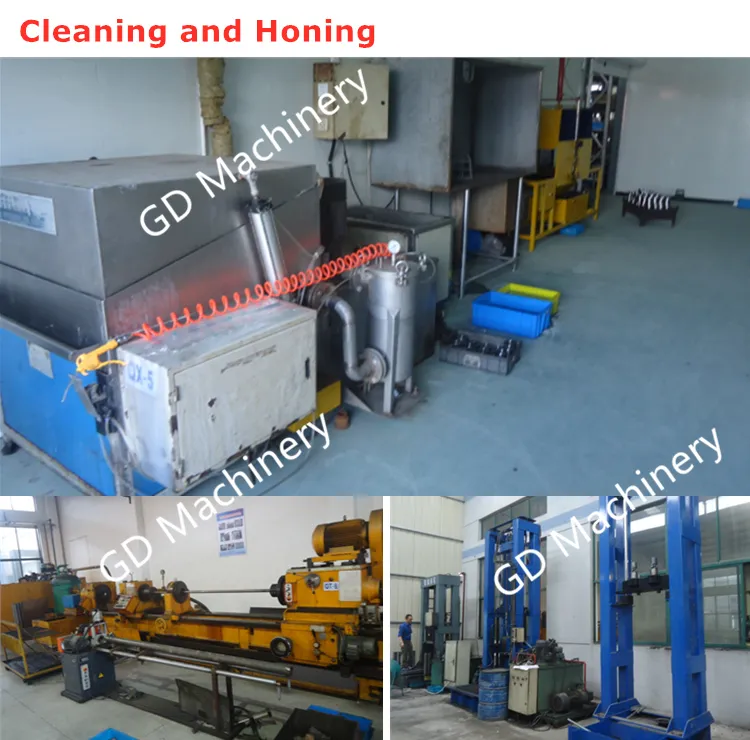

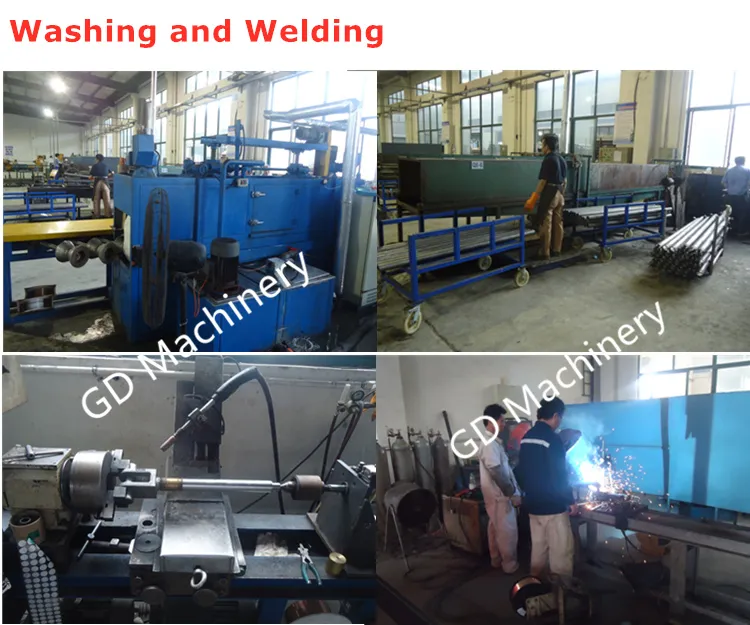

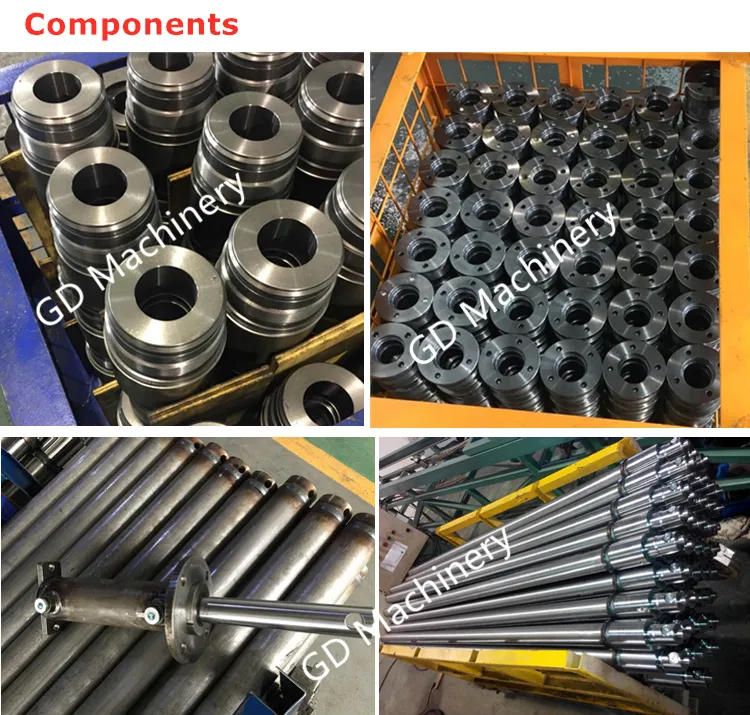

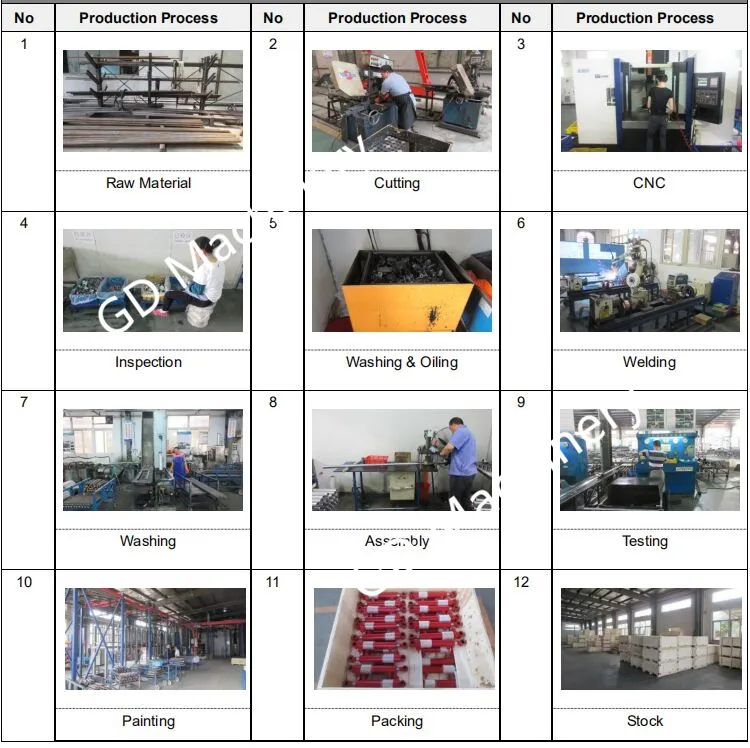

The Process Flow of Welded Swivel Mount Hydraulic Ram

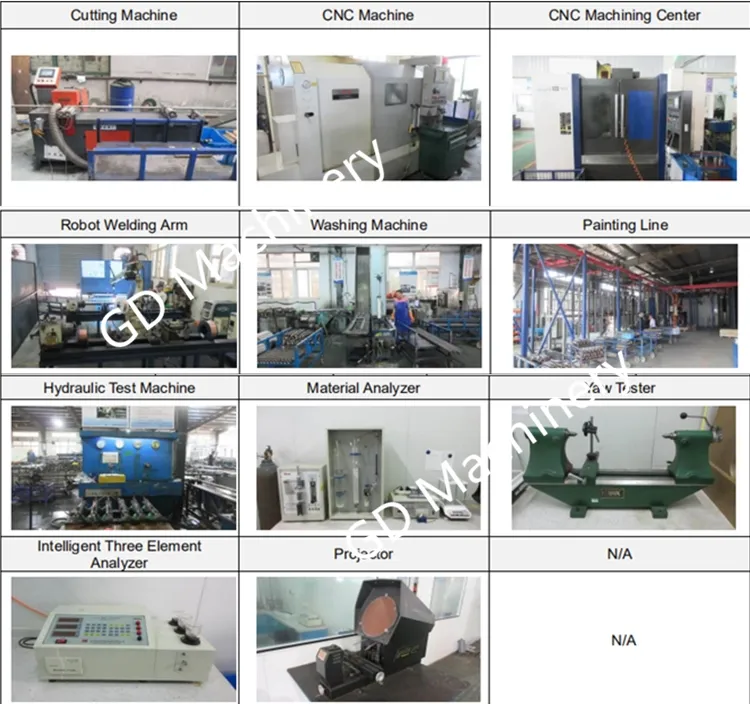

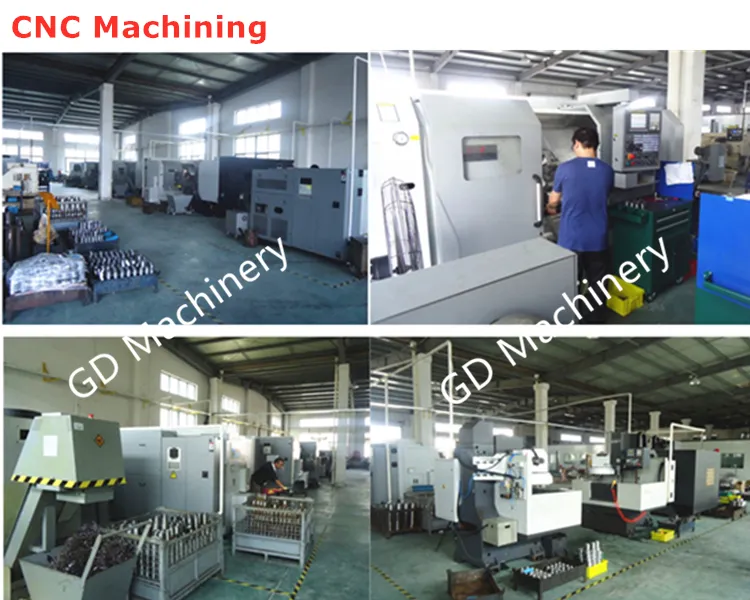

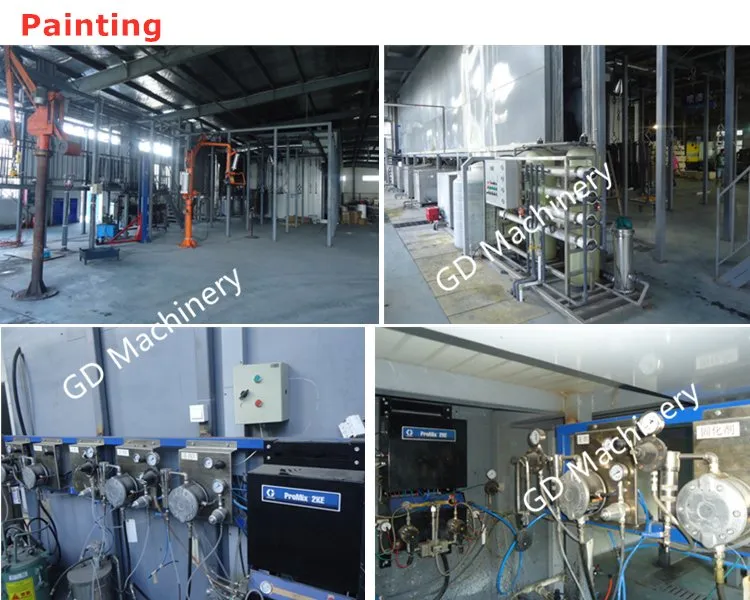

The Machinery to Produce Welded Swivel Mount Hydraulic Ram

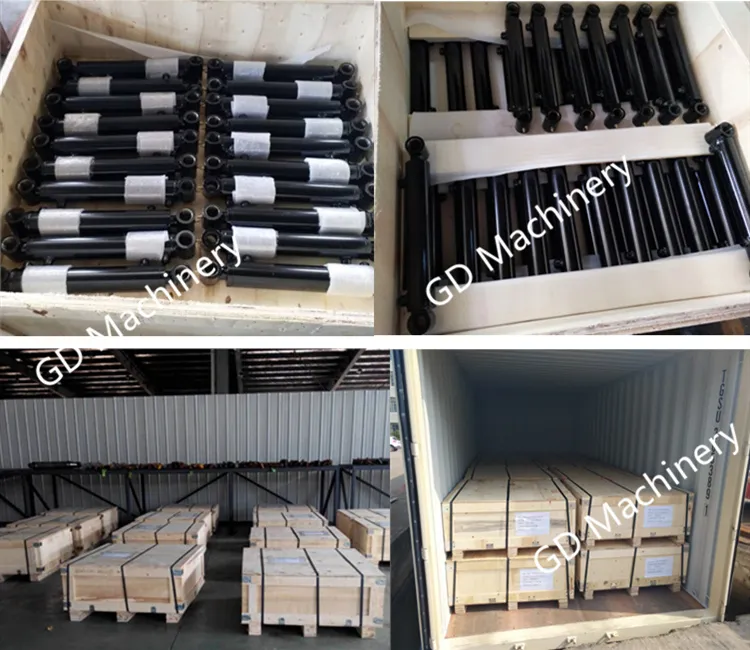

The Packing of Welded Swivel Mount Hydraulic Ram

Welcome to send us a quotation. We'd like to give you the best survice.
