Hydraulic Cylinder Design Options

A wide range of options, bore sizes, and styles to fit your needs

• Size. We can develop cylinders with 1- to 9-inch bore and stroke up to 12 inches
• Duty. We'll help you determine whether you need light-, medium- or heavy-duty, up to 5,000 psi, hydraulic cylinders.
• Style. Select the best style for your cylinder, whether that's single- or double-action, displacement or piggyback style.
• Mounting. Choose from clevis, trunnion, single-tang, plate, or double-ended cylinder mounting styles.
• Shafting. There are multiple shafting materials available including chrome plated, nitrided, and induction-hardened chrome plated shafting

• Integration. Our engineers can help develop manifolds with valve integration for base, head or tube mounted.
• Options. We'll help you select the best options for optimizing your cylinders including port block fluid lines and cushioning.
• Smarts. Smart cylinders incorporate sensors for accurate feedback and optimizing electrohydraulic control. Our engineers will guide you through the smart solutions for your custom cylinders.
• Seals. GD Machhinery inventories thousands of different seals for a variety of applications and sizes ensuring that the seals used in your hydraulic cylinders will perform.

Features

>Counterbalance

>Overload Protection

> Regenerative Circuits

> Load Locking

>Sequence Control

>Flow Control/ Velocity Fuse

> Thermal Protection

>Master / Slave Circuits

> Directional Control

>Pressure Control

>Proportional Flow Product

When your application requires counterbalance or pilot-operated check valves, the ideal location is directly mounted to the cylinder because it continues to provide load holding protection even when a hose fails. From basic single or dual counterbalance valves to complex integrated circuits, our team will design your cylinders with compact valve manifolds.

Direct Mounting Can Eliminate

• Mounting brackets
• Hardware
• Fluid connectors
• Assembly time

Compact Valve Manifolds Can Meet

• Broad safety expectations
• Performance requirements
• Aesthetics

Packaging

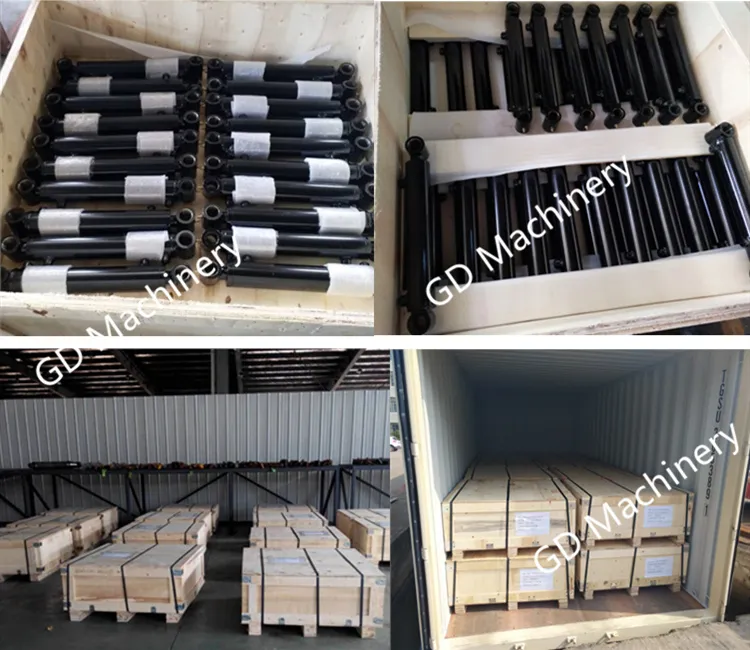

Metal case,plywood case/carton or as customers' requirements.

Other cylinder types

Hydraulic cylinders can be built according to your drawings or technical requirement.

For more inquiries,Joyce will be so glad to be at your service.
