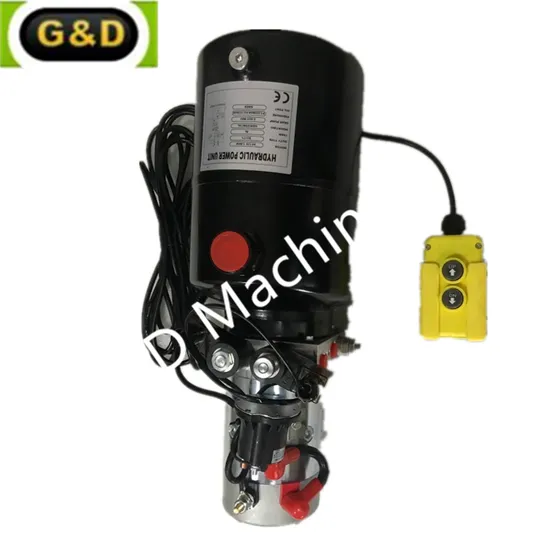

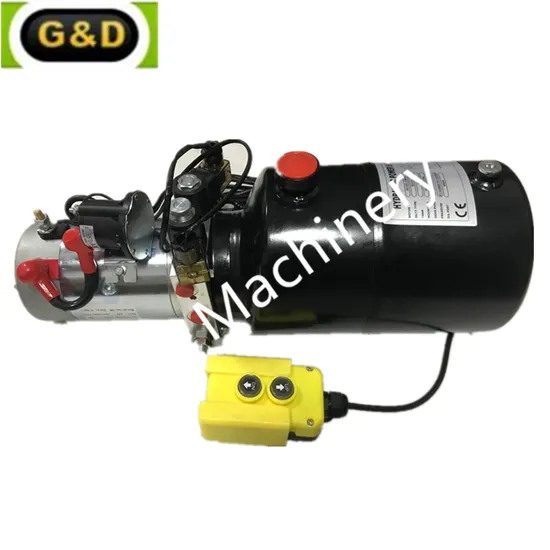

Heavy Duty Horizontal 2.5 Cc Hydraulic Power Unit

Heavy Duty Horizontal 2.5 Cc Hydraulic Power Unit

Customization:	Available
Certification:	ISO9001
Pressure:	Medium Pressure

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

HPU-01

Work Temperature

Normal Temperature

Acting Way

Double Acting

Working Method

Straight Trip

Adjusted Form

Regulated Type

Structure

Thin-Film Type

Material

Carbon Steel

System Pressure

19MPa

Tank Capacity

3L

Solienoid Valve Volt

12VDC

Power

1.5 Kw

Transport Package

Metal Casemetal Case, Plywood Case

Specification

23cmx25cmx59cm

Trademark

GD

Origin

China

HS Code

84122100

Production Capacity

100000PCS/Year

Product Description

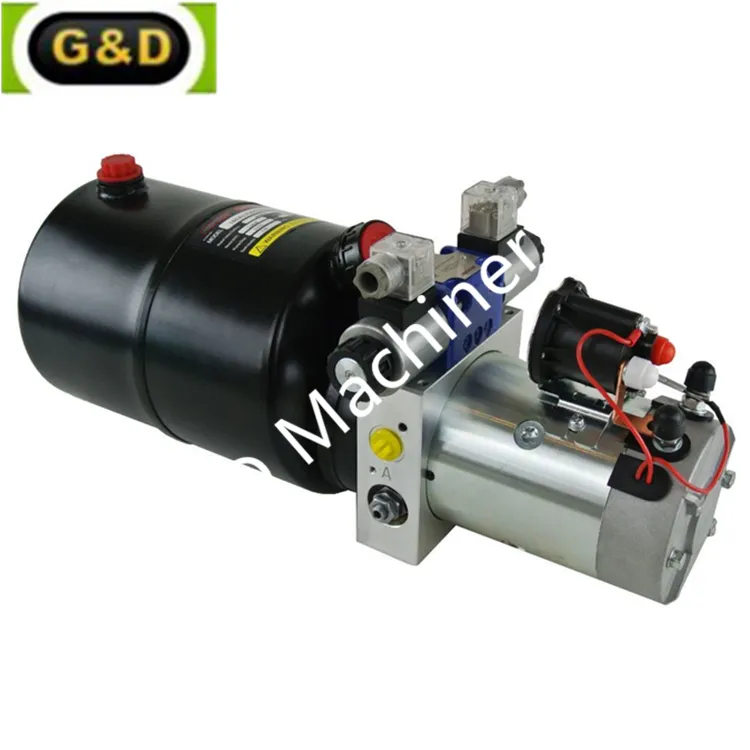

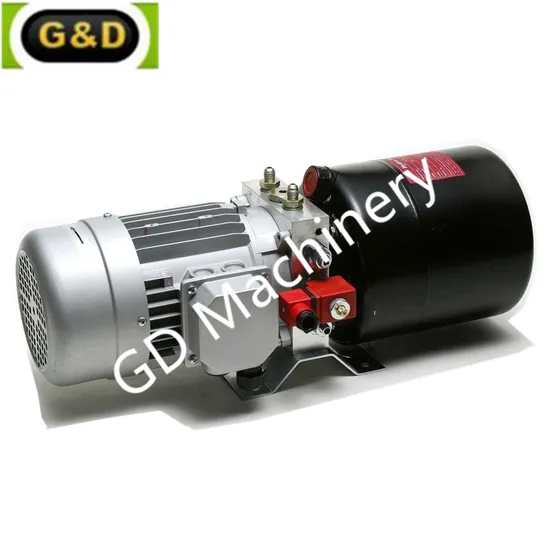

Hydraulic power unit

Heavy Duty Horizontal 2.5 Cc Hydraulic Power Unit

About GD Machinery Co.,Ltd

GD Machinery Co., Ltd. is a specialized manufacturer and trader with main products: hydraulic cylinders, hydraulic power units, hydraulic manifolds-blocks, hydraulic flanges,pneumatic cylinders and custom-made components and parts, like industrial valves.

Our sales markets have covered our sales markets have covered North America, Europe, Australia and Japan.

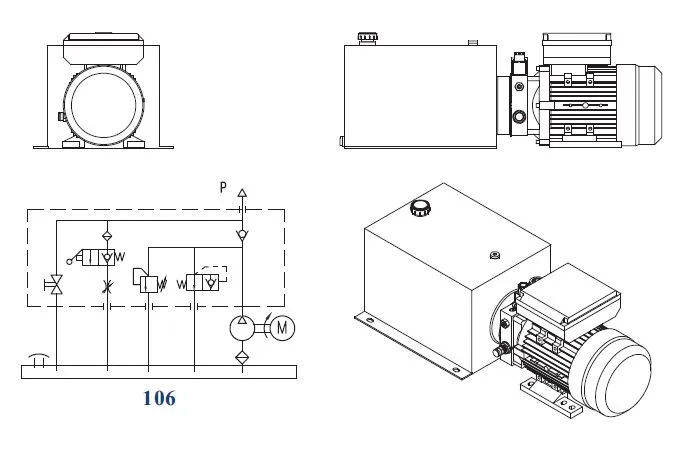

Hydraulic Power Unit

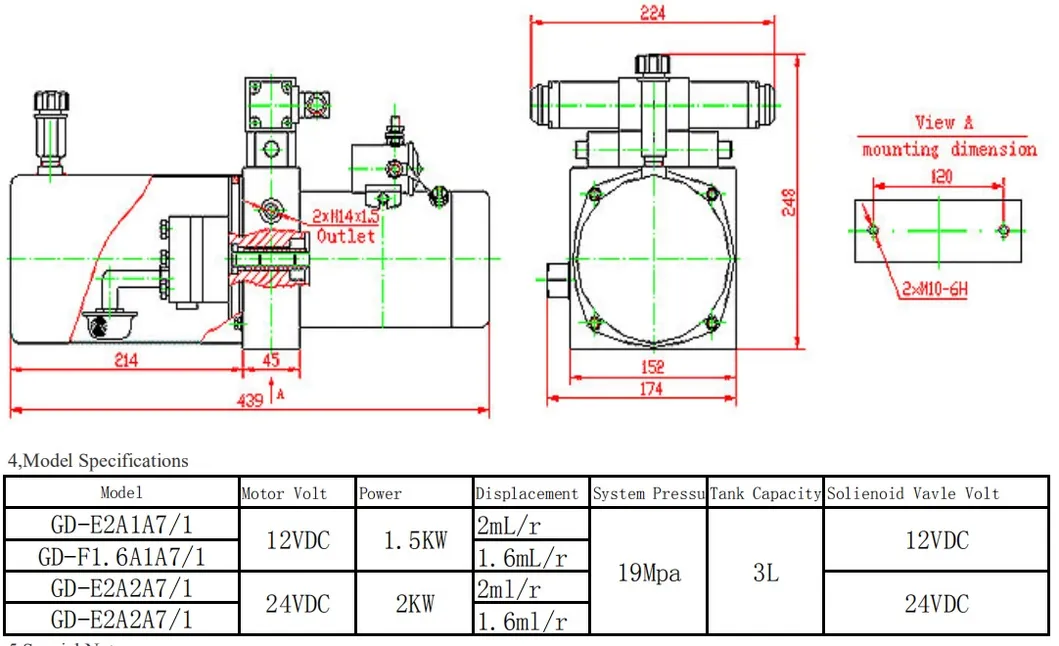

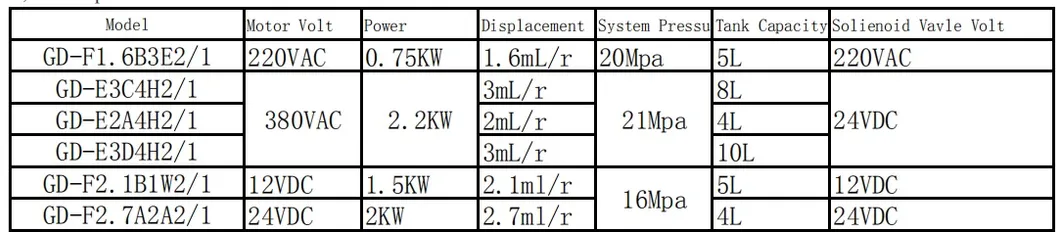

Specification

Special Notes

1) The motor is a S3 duty one, which can only be worked intermittently, ie., 1 mimute on and 9 minutes off.

2) Viscosity of the oil should be 15-68 cst.

3) Check the oil level in the tank after the first start of the power unit.

4) Change the oil after the first 100 hours of using the power unit, then change the oil every 3000 hours.

5) We are at your disposal to offer you the power units with your favorate power, flow, pressure as well as the tank capacity.

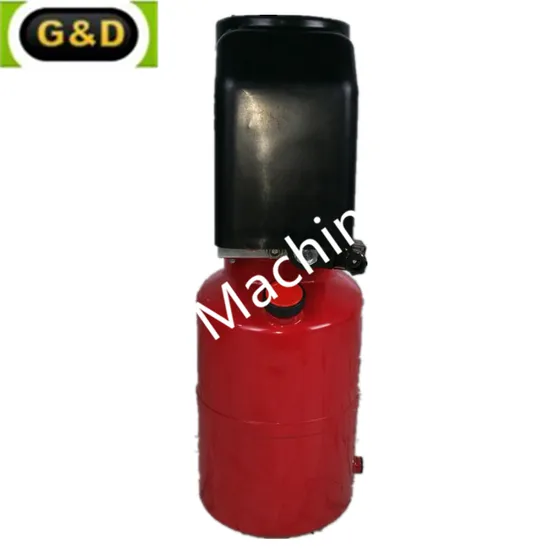

6) There are two optional mounting styles--horizontal or vertical. Indicate a proper one when ordering.

100%Tested

Tested to perfection, Hydraulic Power Unit goes through a thorough pressure test to assure compliance and quality expectations.

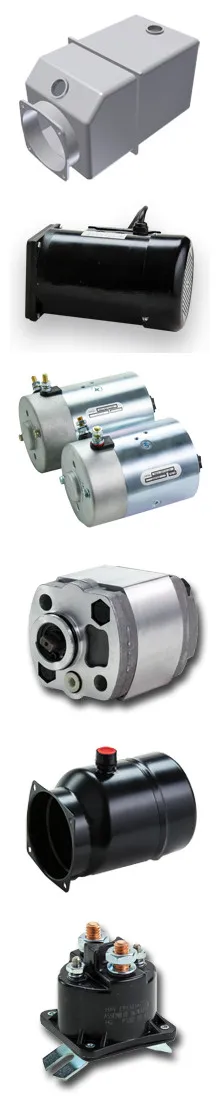

Available accessories

Packaging

We use metal case,plywood case /carton or as Customer's requirements

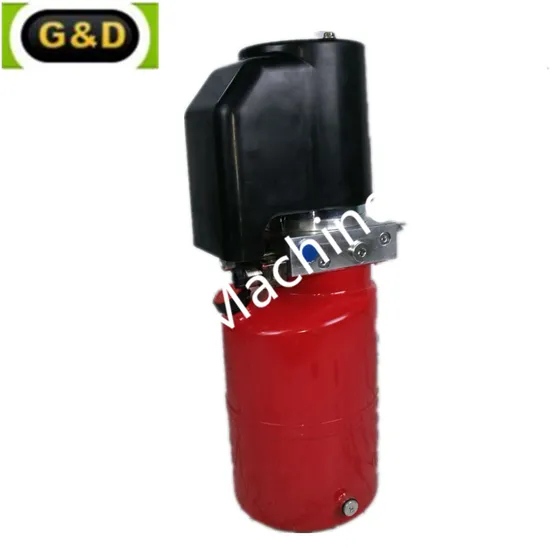

Heavy Duty Horizontal 2.5 Cc Hydraulic Power Unit

Delivery time:

30-40 days upon 30%deposit and drawing approval

Hydraulic Power unit can be built according to your drawings or technical requirement.
Sample order are acceptable.

Looking forward to your inquires about hydraulic cylinders and hydraulic power unit.
