Hydraulic Cylinder Design Options

A wide range of options, bore sizes, and styles to fit your needs

• Size. We can develop cylinders with 1- to 9-inch bore and stroke up to 12 inches
• Duty. We'll help you determine whether you need light-, medium- or heavy-duty, up to 5,000 psi, hydraulic cylinders.
• Style. Select the best style for your cylinder, whether that's single- or double-action, displacement or piggyback style.
• Mounting. Choose from clevis, trunnion, single-tang, plate, or double-ended cylinder mounting styles.
• Shafting. There are multiple shafting materials available including chrome plated, nitrided, and induction-hardened chrome plated shafting

• Integration. Our engineers can help develop manifolds with valve integration for base, head or tube mounted.
• Options. We'll help you select the best options for optimizing your cylinders including port block fluid lines and cushioning.
• Smarts. Smart cylinders incorporate sensors for accurate feedback and optimizing electrohydraulic control. Our engineers will guide you through the smart solutions for your custom cylinders.
• Seals. GD Machhinery inventories thousands of different seals for a variety of applications and sizes ensuring that the seals used in your hydraulic cylinders will perform.

Features

>Counterbalance

>Overload Protection

> Regenerative Circuits

> Load Locking

>Sequence Control

>Flow Control/ Velocity Fuse

> Thermal Protection

>Master / Slave Circuits

> Directional Control

>Pressure Control

>Proportional Flow Product

When your application requires counterbalance or pilot-operated check valves, the ideal location is directly mounted to the cylinder because it continues to provide load holding protection even when a hose fails. From basic single or dual counterbalance valves to complex integrated circuits, our team will design your cylinders with compact valve manifolds.

Direct Mounting Can Eliminate

• Mounting brackets
• Hardware
• Fluid connectors
• Assembly time

Compact Valve Manifolds Can Meet

• Broad safety expectations
• Performance requirements
• Aesthetics

Packaging

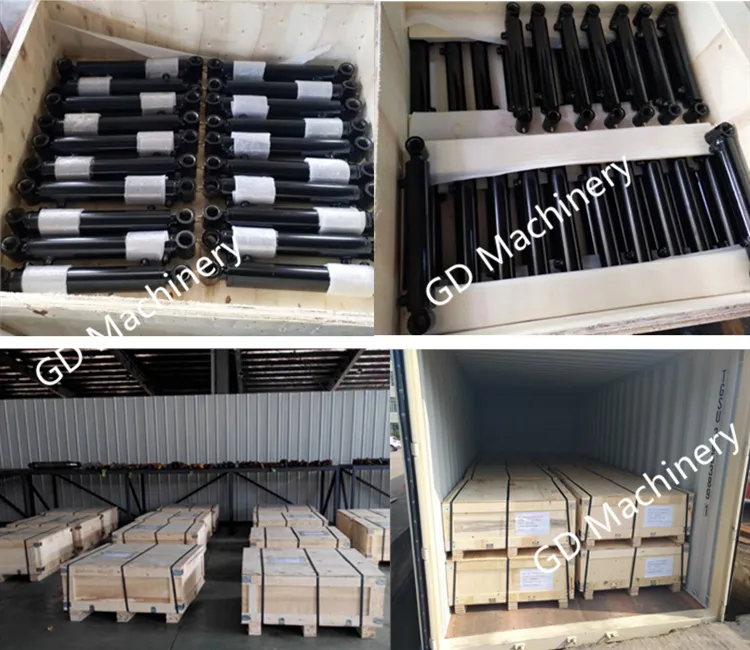

Metal case,plywood case/carton or as customers' requirements.

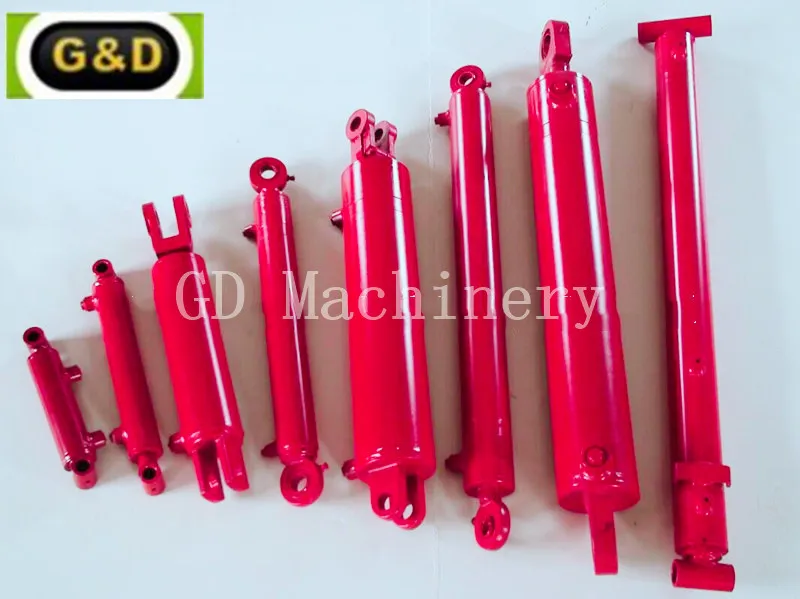

Other cylinder types

Hydraulic cylinders can be built according to your drawings or technical requirement.
