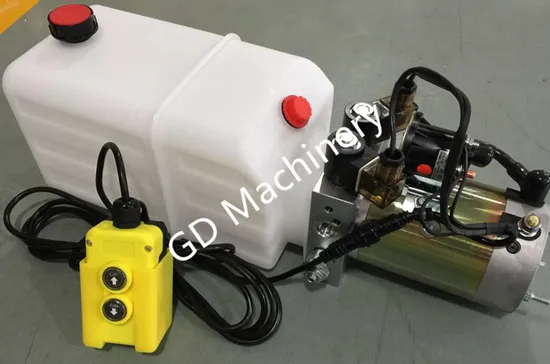

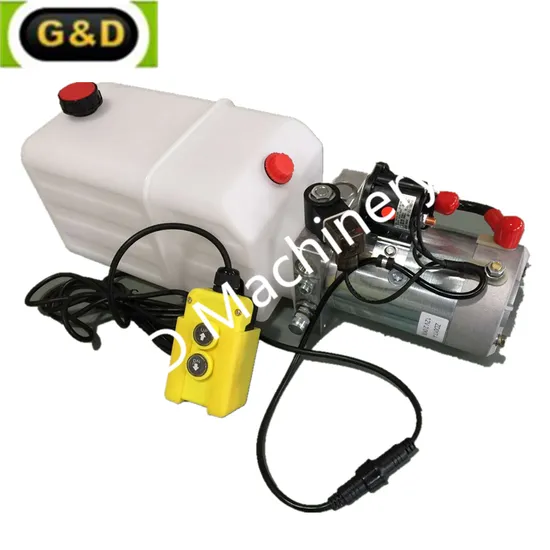

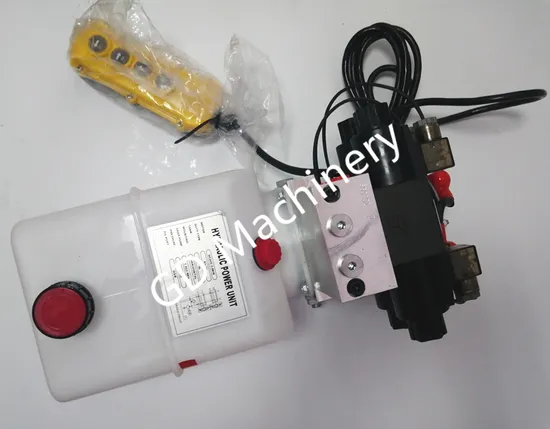

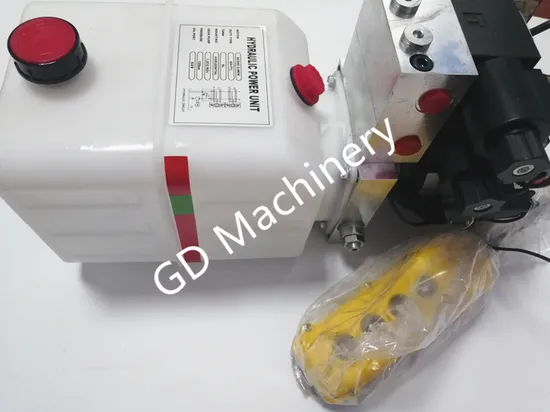

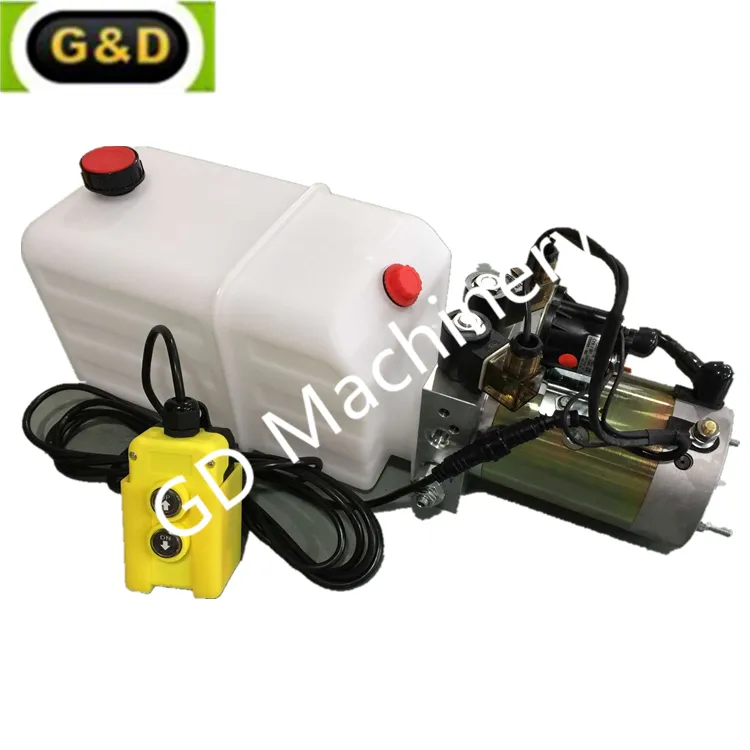

Lifting Power Station 12V DC Steel Hydraulic Power Unit

Lifting Power Station 12V DC Steel Hydraulic Power Unit

Customization:	Available
Certification:	ISO9001
Pressure:	Medium Pressure

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

HPU-01

Work Temperature

Normal Temperature

Acting Way

Double Acting

Working Method

Straight Trip

Adjusted Form

Regulated Type

Structure

Thin-Film Type

Material

Carbon Steel

System Pressure

19MPa

Tank Capacity

3L

Solienoid Valve Volt

12VDC

Power

1.5 Kw

Flow Direction

Variety of Circuits Including Reversible Locking

Motor Type

12 VDC, 24 VDC

Transport Package

Metal Casemetal Case, Plywood Case

Specification

23cmx25cmx59cm

Trademark

GD

Origin

China

HS Code

84122100

Production Capacity

100000PCS/Year

Product Description

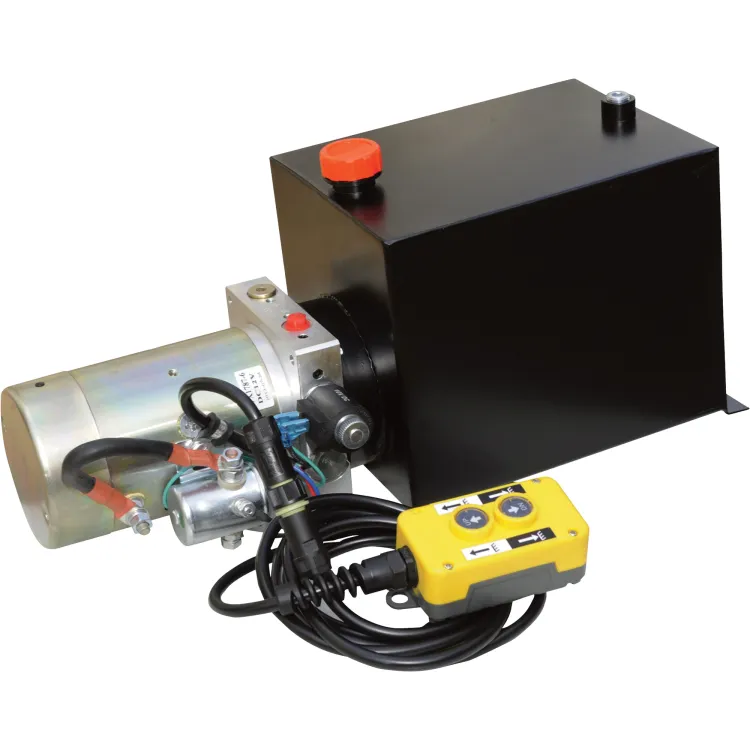

Hydraulic power unit

Special Notes

1) The motor is a S3 duty one, which can only be worked intermittently, ie., 1 mimute on and 9 minutes off.

2) Viscosity of the oil should be 15-68 cst.

3) Check the oil level in the tank after the first start of the power unit.

4) Change the oil after the first 100 hours of using the power unit, then change the oil every 3000 hours.

5) We are at your disposal to offer you the power units with your favorate power, flow, pressure as well as the tank capacity.

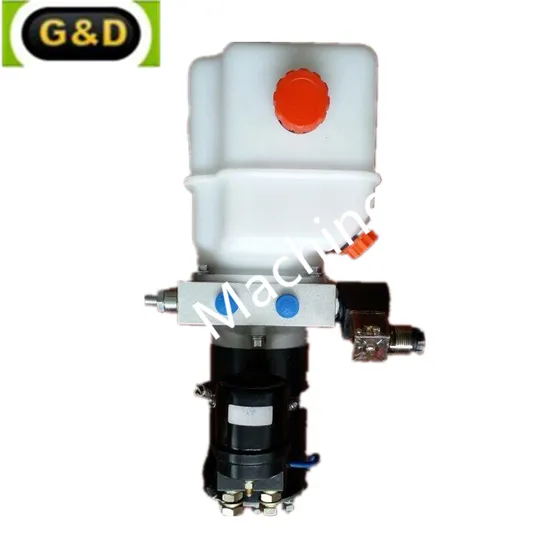

6) There are two optional mounting styles--horizontal or vertical. Indicate a proper one when ordering.

About GD Macinery Co.,Ltd

GD Machinery Co., Ltd. is a specialized manufacturer and trader with main products: hydraulic cylinders, hydraulic power units, hydraulic manifolds-blocks, hydraulic flanges,pneumatic cylinders and custom-made components and parts, like industrial valves.

Our sales markets have covered our sales markets have covered North America, Europe, Australia and Japan.

Hydraulic Power Unit

Specification

Single direction hydraulic power units are commonly used to charge accumulators, power single direction hydraulic motors and single-acting cylinders, as well as for use with multi-function circuits through external valving. Bi-directional hydraulic power units are commonly used to operate double-acting cylinders and reversible motors.

Markets:
• Industrial
• Medical
• Packaging
• Material Handling
• Manufacturing
• Construction

Features/Benefits:
• Design Flexibility
• Bi-directional, reversible units
• Vertical and horizontal mounting
• Double-acting cylinders with two-way motors
• Multiple reservoir sizes
• Improved Performance
• Thermal relief valve to allow bleed-off of built-up pressure Back-pressure circuits to provide closed-loop operation Soft seat load hold valves

Applications:
• Wheelchair lifts
• Scissor lift tables
• RV levelers
• RV room slides
• Cab tilts
• Mobile sign lifts
• Boat lifts
• Pallet movers

Technical Characteristics:
• 800 W (1 HP), 12 & 24 VDC motors
• Flow rates from 2.8 to 5.3 lpm (.75 to 1.4 gpm)
• Pressures capability of 241 bar (3500 psi)
• Available in three standard pump sizes

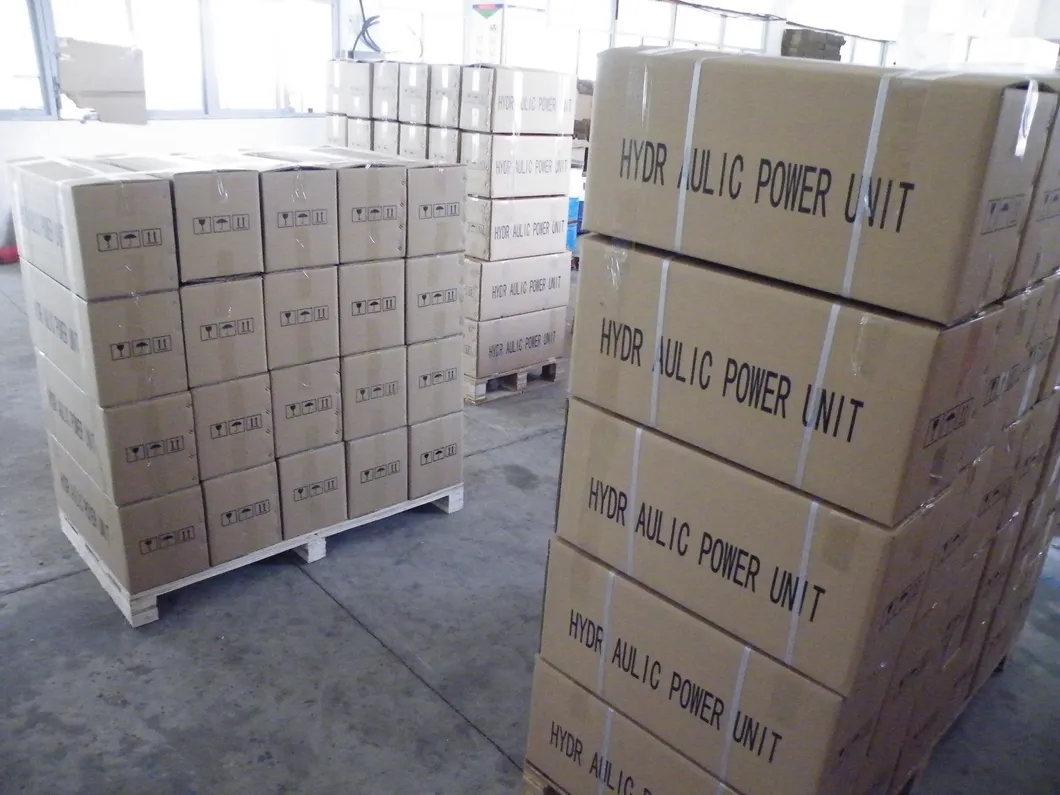

Packaging

Delivery time:

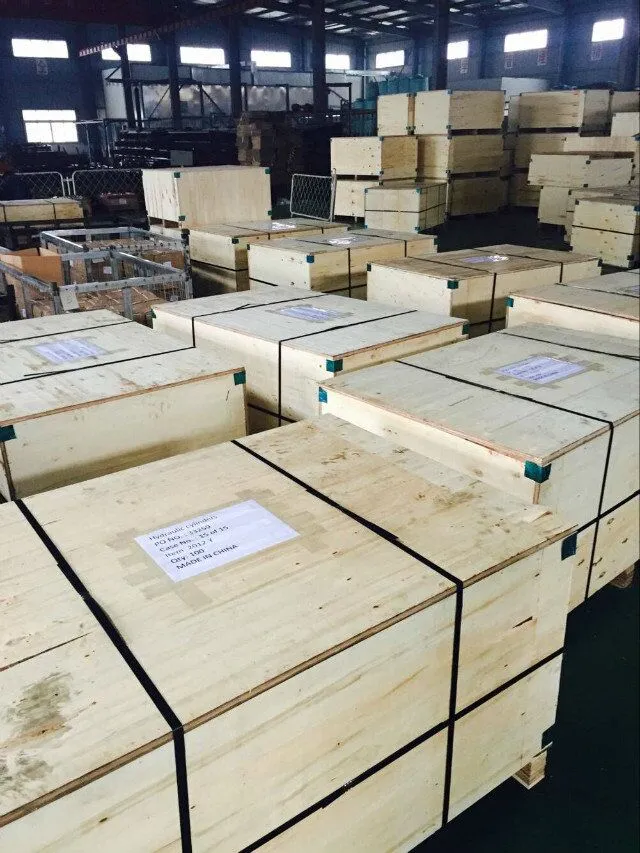

We use metal case,plywood case /carton or as Customer's requirements

30-40 days upon 30%deposit and drawing approval

Hydraulic Power unit can be built according to your drawings or technical requirement.
Sample order are acceptable.

Qingdao GD Machinery CO.,LTD.
Product
Tie rod hydraulic cylinder, Welded hydraulic cylinder, Telescopic cylinders cylinder, Flange type hydraulic cylinder, Hydraulic cylinder with valve function, Hydraulic power unit, Hydraulic manifold block, pneumatic fitting
Material	Tube - Cold Drawn Precision seamless Tubing End Caps - Steel, threaded fixed; Wear Ring - Nylon Backup Washer Rod Seals - Polyurethane U-Cap Rod - Chromed, ground & polished piston rod Mounts - Trunnion with angular Swivels Rod Wiper - Polyurethane
Application	Agriculture, Concrete & Asphalt Cranes, Fire & Rescue, Forestry & Logging,Mining & Rock Crushing Oil & Gas, Snow & Ice Control,Waste Management Material Recycling Industry , Engineering Equipment Special Vehicle
Feature	1.High quality with a reasonable price 2.ISO9001-2008 3.Customized specification are accepted
Payment	T/T;L/C,WESTERN UNION.
Port	Qingdao ,China
Quotation	According to the specific request
MOQ	According to the product
Packaging	Metal case;plywood case;carton or as requirement
Delivery time	30days upon receipt of 30% deposit; or upon receipt of relevant L/C;
