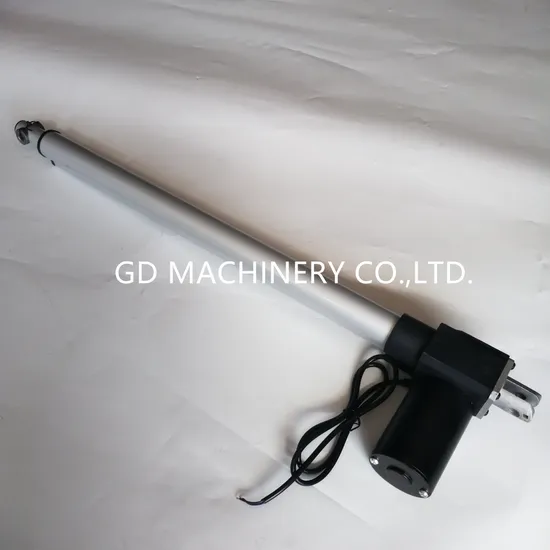

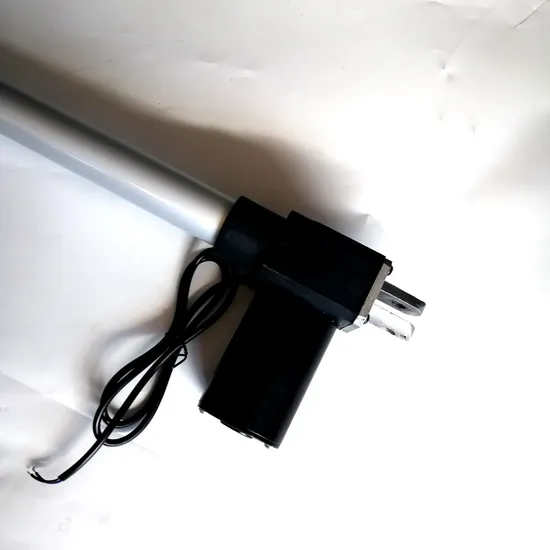

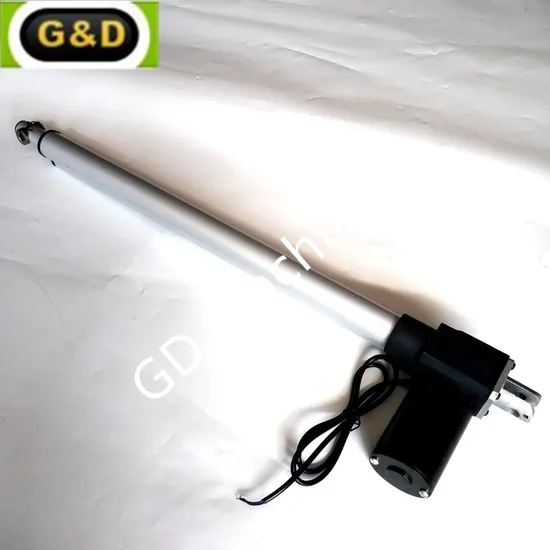

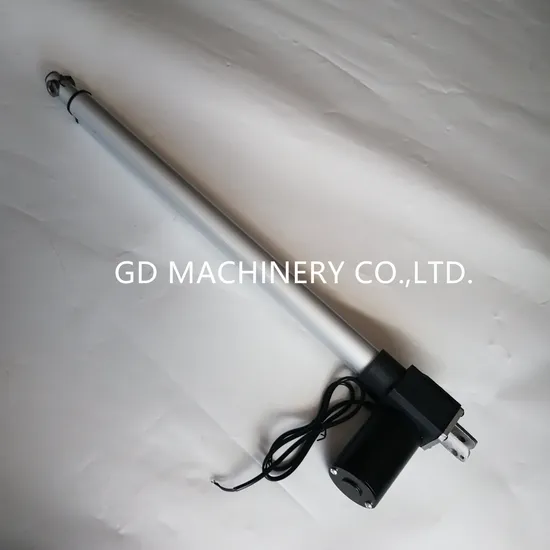

Standard Features:
1.Compact design
All aluminum frame and extension tube

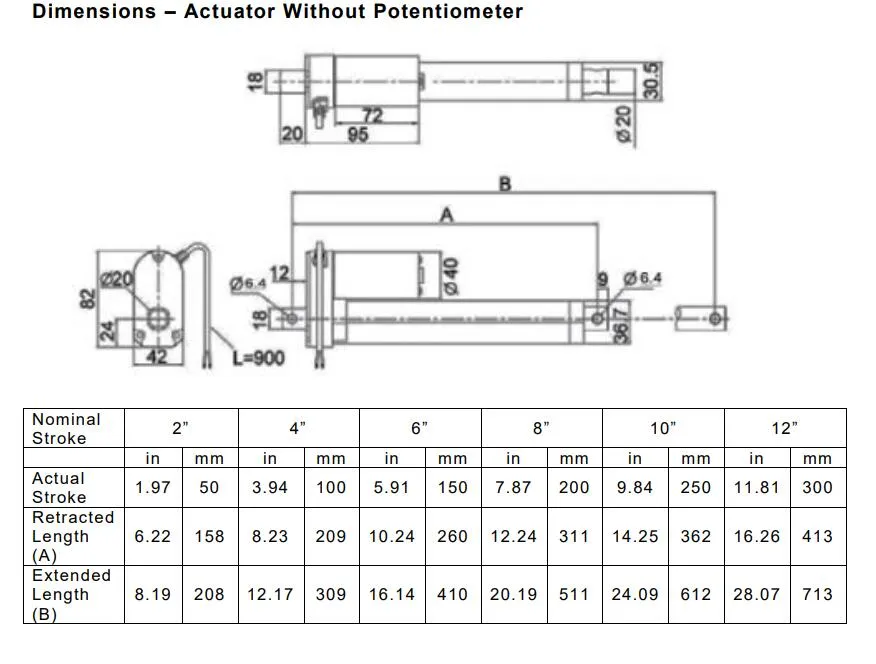

2.Nominal stroke lengths:
2" [50mm], 4" [100mm],
6" [150mm], 8" [200mm],
10" [250mm], 12" [300mm]
3.Input voltage: 12VDC, 24VDC
4.Standard gear ratio: 20:1 [other ratios available]
5.Load range: 34 lbs. [150 Newtons] -to- 225 lbs. [1000 Newtons]
6.Maximum current draw: 3.5 Amps @ 12 VDC
Features + Benefits

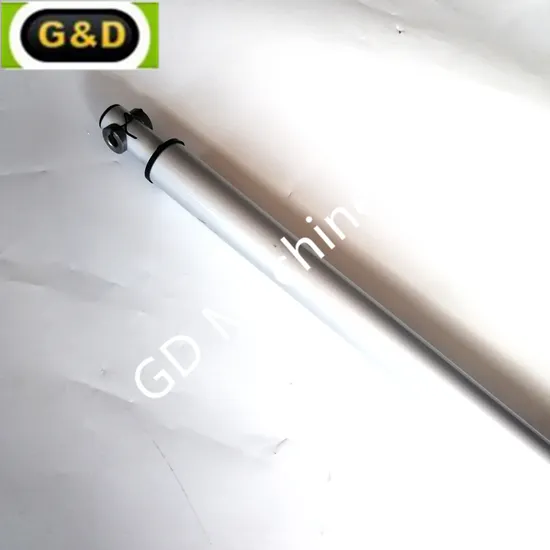

- All-metal housing is water-resistant and sealed against dust for rugged durability
- 20:1 reduction gearbox to provide a load rating of 110 lbs.
- Can be controlled with a double pole, double throw switch
- Durable aluminum/steel frame material
- 12Volt power
