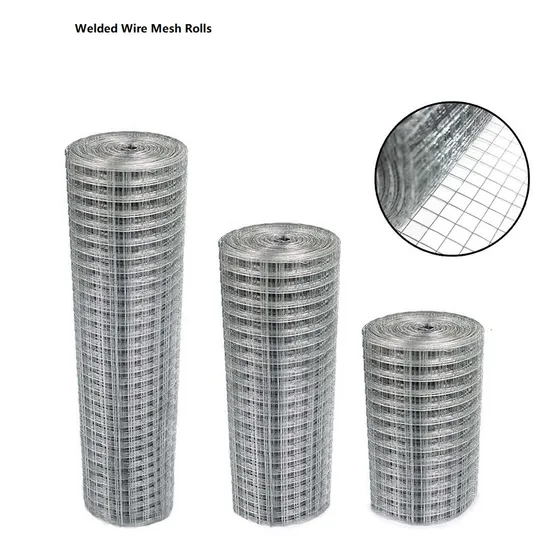

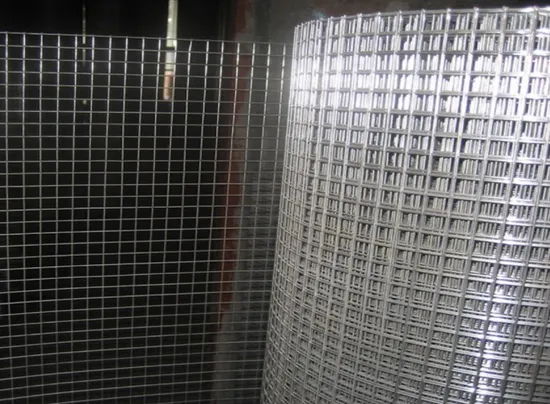

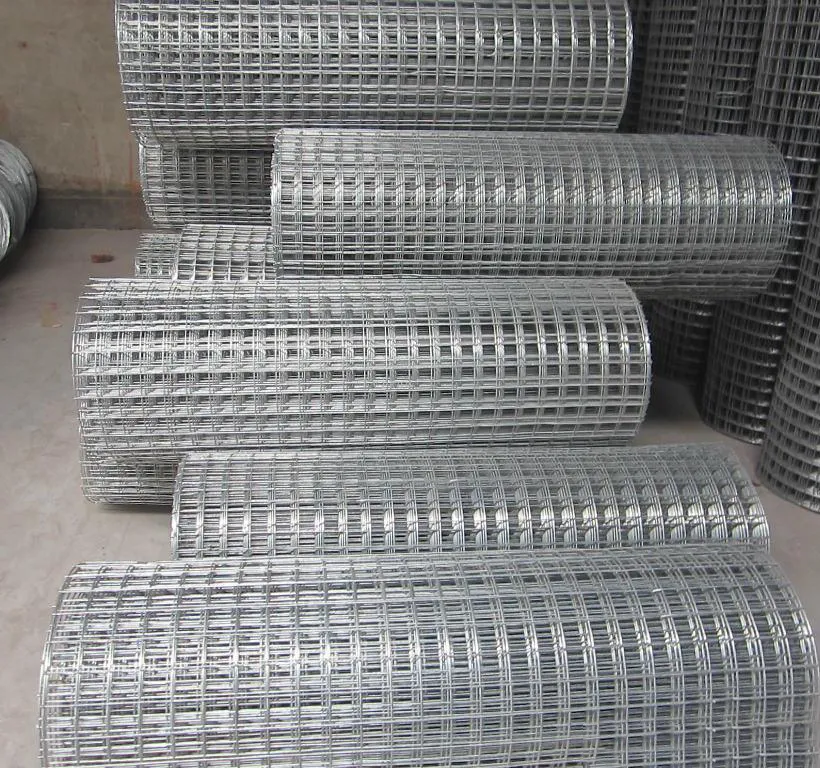

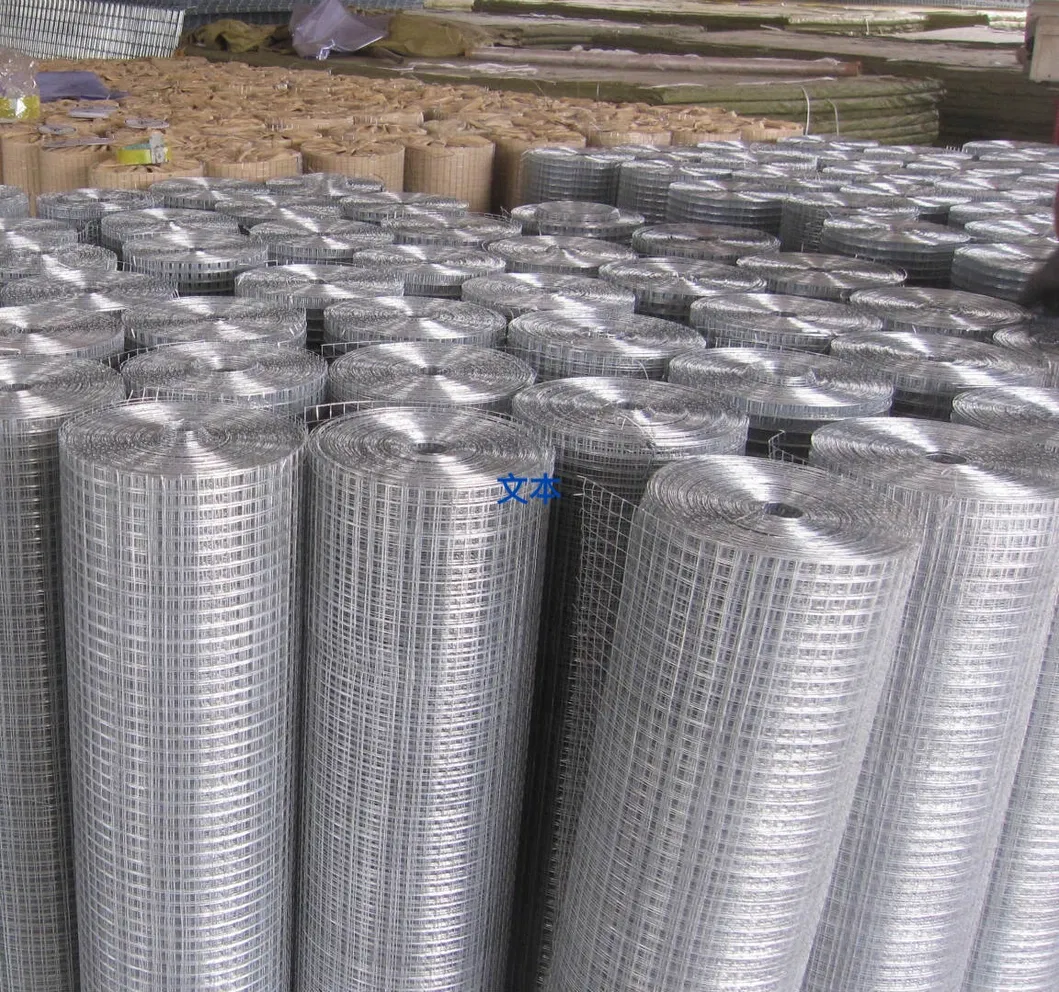

Galvanized welded wire mesh rolls
2mm wire mesh dia, Hole 5mm*7mm Features: Treatment :Galvanized welded wire mesh/hot dip galvanized welded wire mesh

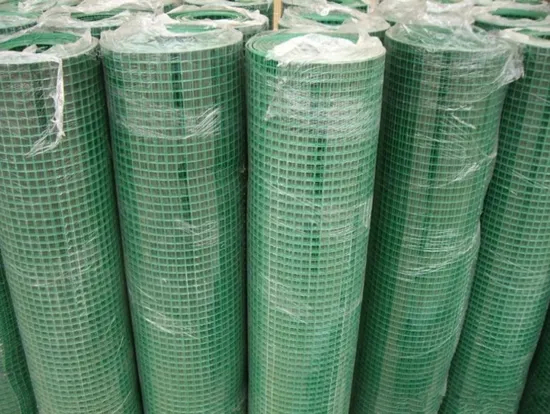

PVC-Coated - use for supermarket, garden fender, villa
Material: Stainless steel welded wire mesh adopt 316,316L,304,304L,302
The product is used for the top quality fence netting ,supermarket product frame ,decorated inside and outside, food basket, advanced animal cultivation
Length: standard 15.24m,30.48m Width: 0.5m-1.8m
Hole size and wire diameter
| Hole size | Wire diameter (BWG) |
| Inch | mm | |
| 1/4"*1/4" | 6.4*6.4 | 22,23,24 |
| 3/8"*3/8" | 10.6*10.6 | 19,20,21,22 |
| 1/2"*1/2" | 12.7*12.7 | 16,17,18,19,20,21,22,23 |
| 5/8"*5/8" | 16*16 | 18,19,20,21 |
| 3/4"*3/4" | 19.1*19.1 | 16,17,18,19,20,21 |
| 1"*1" | 25.4*25.4 | 16,17,18,19,20,21 |
| 1-1/2"*1-1/2" | 38*38 | 16,17,18,19,20,21 |
| 1"*2" | 25.4*50.8 | 13,14,15,16,17 |
| 2"*2" | 50.8*50.8 | 14,15,16 |
| 2"*3" | 50.8*76.2 | 14,16,17 |
| 3"*3" | 76.2*76.2 | 14,15,16 |
Welded wire mesh rolls with Aperture
Material: Carbon steel
Feature: Corrosion-resisting ,oxidation-resisting
Aperture: 1/4''-6
Surface treatment finishing : Hot Galvanized zinc, Black, E.G., H.D.G, PVC Coated
Welding type : Galvanized before welding, Galvanized after welding

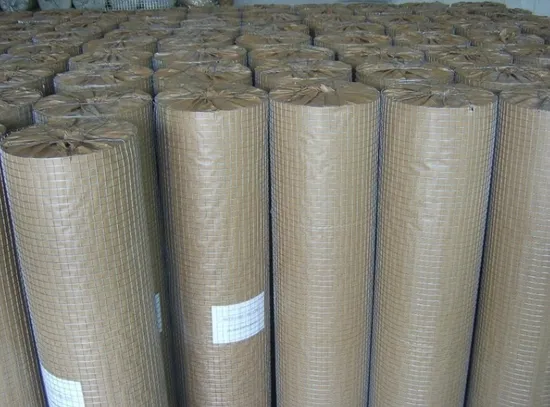

Packaging : Standard exporting package In roll ,in carton ,on pallet.
Welded wire mesh is one popular materials in concrete, construction and industry. It is made of low carbon steel wire, stainless steel wire after welding and surface treating. Welded wire mesh fabric is widely used in building construction, protection system, filtration, food, agriculture and so on.
Hot-Dipped galvanized welded wire mesh panels/sheets or rolls are generally made up of plain steel wire. At the time of processing it goes through a hot zinc covering process. This type of welded mesh ware with square opening is ideal for animal cage structuring, fabricating the wire boxes, grilling, partition making, grating purposes and machine protection fencing. Hot-Dipped galvanized welded wire panels or rolls characteristics: flat and uniform surface, firm structure, good integrity and excellent good corrosion resistant.
This type of welded wire have two processing in manufacturing process, galvanizing welded mesh before or after welding. The galvanized welded wire mesh after welding is better than before welding for the corner of welding. With the hot-dipped galvanizing, welded wire can prevent corrosion in daily application.
