North American Standard Inch Sizes Tie Rod Hydraulic Cylinders

North American Standard Inch Sizes Tie Rod Hydraulic Cylinders

Customization:	Available
Certification:	GS, RoHS, CE, ISO9001
Pressure:	Medium Pressure

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Work Temperature

Normal Temperature

Acting Way

Double Acting

Working Method

Straight Trip

Adjusted Form

Regulated Type

Structure

Piston Type

Material

Carbon Steel

Standard

Ts16949

Cylinder Material

20#/45# Steel

Working Pressure

2500psi/3000psi

Seal Kits Brand

Hallite

Warranty

1 Year

Samples

Allowed

Transport Package

Polywood Case /Metal Case

Specification

1200*1000*1000

Trademark

GD

Origin

China

HS Code

84122100

Production Capacity

100000PCS/Year

Packaging & Delivery

Package Size

100.00cm * 20.00cm * 30.00cm

Package Gross Weight

20.000kg

Product Description

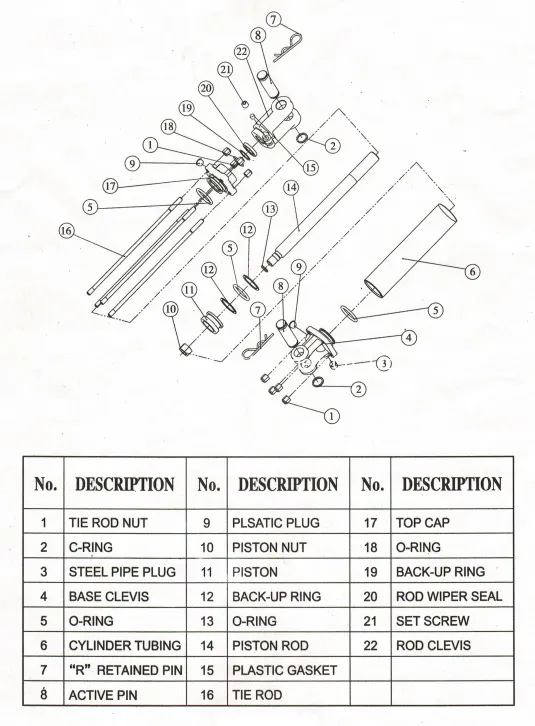

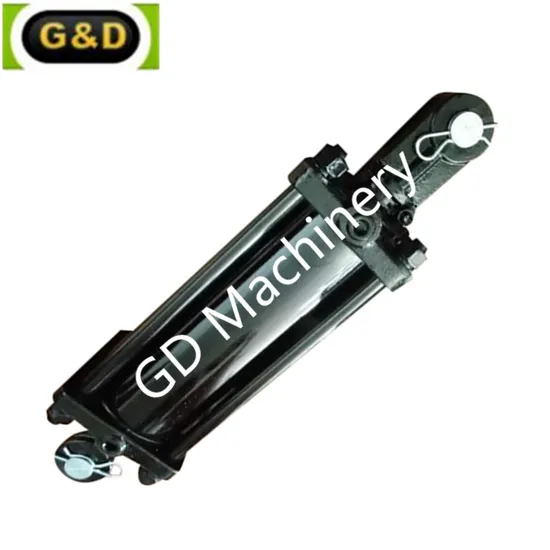

Standard Tie rod Hydraulic Cylinder
TR2008ASAE TR3008ASAE TR4008ASAE

Manufactured based on North American Standard Inch sizes

Working Pressure:2500 PSI or 3000 PSI
Bore: 2″, 2.5″, 3″, 3.5″, 4″, 5″
Stroke: 2″ to 60″
Barrel: Hydrostatically tested and honed 1045 D.O.M. turning out and avaunt pressure
Rod /Bar: 1045 and 1050 cold drawn or induction hardened. Hard-chrome plated for corrosion resistance
Piston and gland: Ductile iron or high-strength aluminum. Glands can be either O.D. threaded, I.D. threaded or round ring steel retained.
Seals: Piston, rod and wiper seals are selected to provide superior performance for pressure requirements to 5,000 PSI, life-cycle requirements, environmental conditions and fluid compatibility requirements.
Packing: CTN; Steel box

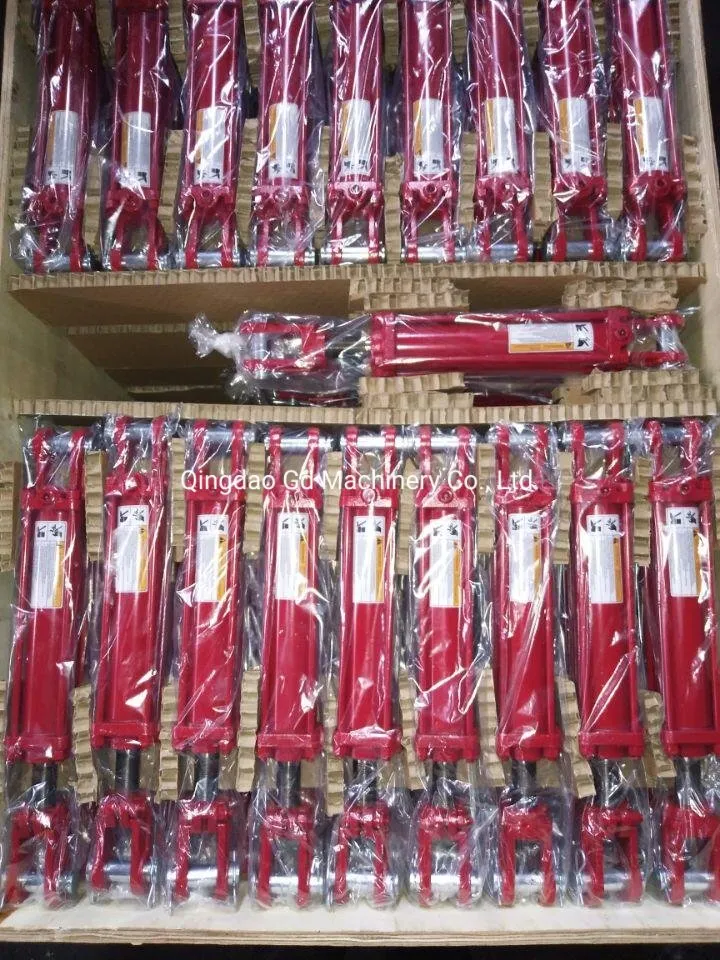

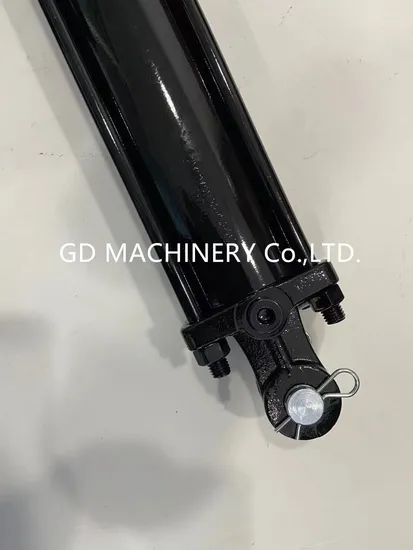

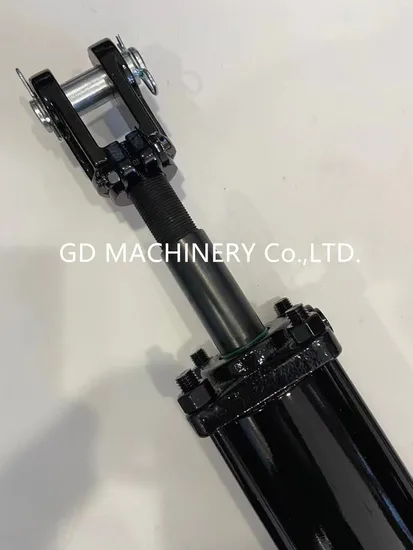

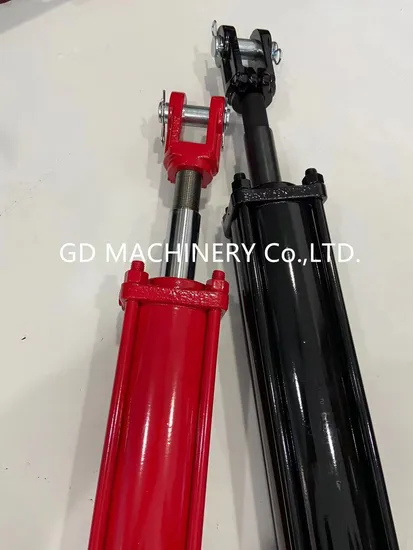

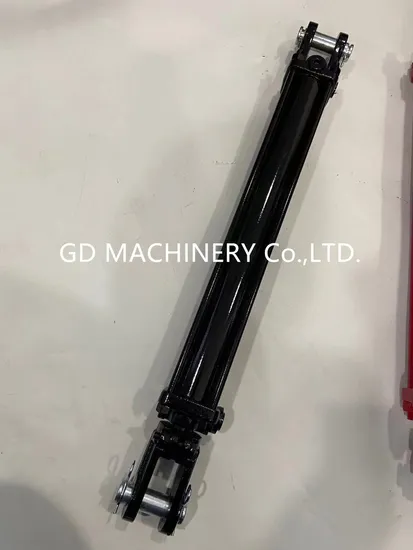

North American Standard Inch Sizes Tie Rod Hydraulic Cylinders

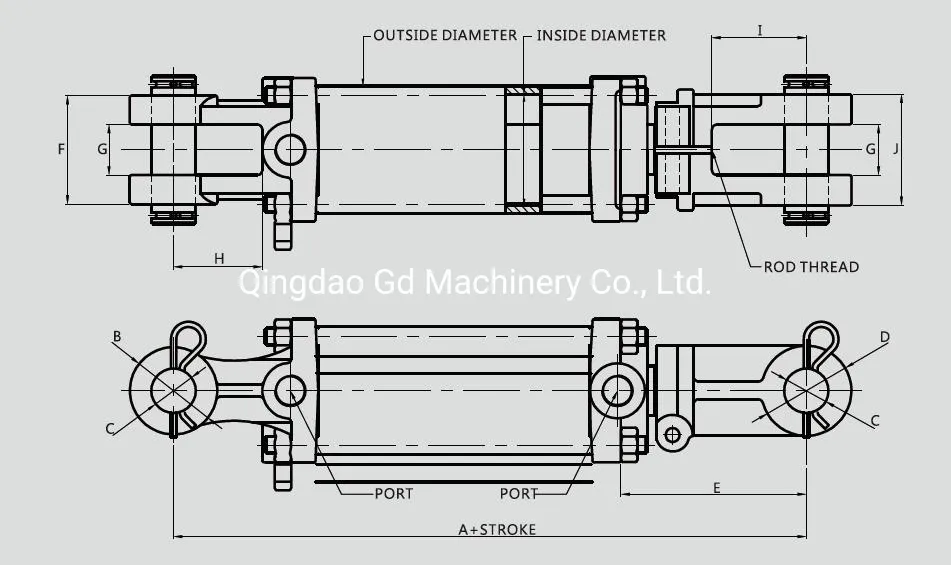

Specificattions:

Part Number	Rod Dia.	Bore x Stroke	Dimensions		Port Size	Pin Size	Weight (lbs)
Part Number	Rod Dia.	Bore x Stroke	Retracted	Extended	Port Size	Pin Size	Weight (lbs)
GD TR25-2004	1 1/8''	2''*4''	14 1/4''	18 1/4''	3/8NPT	1''	15
TR25-2006		2''*6''	16 1/4''	22 1/4''			16
TR25-2008		2''*8''	18 1/4''	26 1/4''			18
TR25-2008-ASAE		2''*8''	20 1/4''	28 1/4''			19
TR25-2010		2''*10''	20 1/4''	30 1/4''			19
TR25-2012		2''*12''	22 1/4''	34 1/4''			20
TR25-2014		2''*14''	24 1/4''	38 1/4''			22
TR25-2016		2''*16''	26 1/4''	42 1/4''			24
TR25-2018		2''*18''	28 1/4''	46 1/4''			26
TR25-2020		2''*20''	30 1/4''	50 1/4''			27
TR25-2024		2''*24''	34 1/4''	58 1/4''			30
TR25-2030		2''*30''	40 1/4''	70 1/4''			35
TR25-2036		2''*36''	46 1/4''	82 1/4''			40
TR25-2504	1 1/8''	2.5''*4''	14 1/4''	18 1/4''	3/8NPT	1''	18
TR25-2506		2.5''*6''	16 1/4''	22 1/4''			20
TR25-2508		2.5''*8''	18 1/4''	26 1/4''			22
TR25-2508-ASAE		2.5''*8''	20 1/4''	28 1/4''			22
TR25-2510		2.5''*10''	20 1/4''	30 1/4''			23
TR25-2512		2.5''*12''	22 1/4''	34 1/4''			25
TR25-2514		2.5''*14''	24 1/4''	38 1/4''			27
TR25-2516		2.5''*16''	26 1/4''	42 1/4''			28
TR25-2518		2.5''*18''	28 1/4''	46 1/4''			29
TR25-2520		2.5''*20''	30 1/4''	50 1/4''			31
TR25-2524		2.5''*24''	34 1/4''	58 1/4''			35
TR25-2530		2.5''*30''	40 1/4''	70 1/4''			45
TR25-2536		2.5''*36''	46 1/4''	82 1/4''			50
TR25-3004	1 1/4''	3''*4''	14 1/4''	18 1/4''	1/2NPT	1''	22
TR25-3006		3''*6''	16 1/4''	22 1/4''			24
TR25-3008		3''*8''	18 1/4''	26 1/4''			26
TR25-3008-ASAE		3''*8''	20 1/4''	28 1/4''			27
TR25-3010		3''*10''	20 1/4''	30 1/4''			28
TR25-3012		3''*12''	22 1/4''	34 1/4''			31
TR25-3014		3''*14''	24 1/4''	38 1/4''			33
TR25-3016		3''*16''	26 1/4''	42 1/4''			35
TR25-3016-ASAE		3''*16''	31 1/4''	47 1/4''		1 1/4''	38
TR25-3018	1 1/2''	3''*18''	28 1/4''	46 1/4''		1''	42
TR25-3020		3''*20''	30 1/4''	50 1/4''			44
TR25-3024		3''*24''	34 1/4''	58 1/4''			49
TR25-3030		3''*30''	40 1/4''	70 1/4''			58
GD-TR25-3036		3''*36''	46 1/4''	82 1/4''			67
TR25-3504	1 1/4''	3.5''*4''	14 1/4''	18 1/4''	1/2NPT	1''	29
TR25-3506		3.5''*6''	16 1/4''	22 1/4''			30
TR25-3508		3.5''*8''	18 1/4''	26 1/4''			34
TR25-3508-ASAE		3.5''*8''	20 1/4''	28 1/4''			35
TR25-3510		3.5''*10''	20 1/4''	30 1/4''			37
TR25-3512		3.5''*12''	22 1/4''	34 1/4''			39
TR25-3514		3.5''*14''	24 1/4''	38 1/4''			42
TR25-3516		3.5''*16''	26 1/4''	42 1/4''			44
TR25-3516-ASAE	1 1/2''	3.5''*16''	31 1/4''	47 1/4''		1 1/4''	50
TR25-3518	1 1/4''	3.5''*18''	28 1/4''	46 1/4''		1''	47
TR25-3520	1 1/4''	3.5''*20''	30 1/4''	50 1/4''			49
TR25-3524	1 1/2''	3.5''*24''	34 1/4''	58 1/4''			58
TR25-3530		3.5''*30''	40 1/4''	70 1/4''			70
TR25-3536		3.5''*36''	46 1/4''	82 1/4''			72
TR25-4004	1 1/4''	4''*4''	14 1/4''	18 1/4''	1/2NPT	1''	33
TR25-4006		4''*6''	16 1/4''	22 1/4''			36
TR25-4008		4''*8''	18 1/4''	26 1/4''			39
TR25-4008-ASAE		4''*8''	20 1/4''	28 1/4''			41
TR25-4010		4''*10''	20 1/4''	30 1/4''			42
TR25-4012		4''*12''	22 1/4''	34 1/4''			45
GD-TR25-4014		4''*14''	24 1/4''	38 1/4''			47
TR25-4016		4''*16''	26 1/4''	42 1/4''			49
TR25-4016-ASAE	2''	4''*16''	31 1/4''	47 1/4''		1 1/4''	63
TR25-4018	1 1/2''	4''*18''	28 1/4''	46 1/4''		1''	55
TR25-4020		4''*20''	30 1/4''	50 1/4''			58
TR25-4024-150		4''*24''	34 1/4''	58 1/4''			64
TR25-4024-175	1 3/4''	4''*24''	34 1/4''	58 1/4''			68
TR25-4024-200	2''	4''*24''	34 1/4''	58 1/4''			73
TR25-4030		4''*30''	40 1/4''	70 1/4''			84
TR25-4036		4''*36''	46 1/4''	82 1/4''			95
TR25-5004	1 1/2''	5''*4''	16 1/4''	20 1/4''	1/2NPT	1''	53
GD-TR25-5006		5''*6''	18 1/4''	24 1/4''			55
TR25-5008		5''*8''	20 1/4''	28 1/4''			64
TR25-5010		5''*10''	22 1/4''	32 1/4''			68
TR25-5012	2''	5''*12''	24 1/4''	36 1/4''			77
TR25-5014		5''*14''	26 1/4''	40 1/4''			82
TR25-5016		5''*16''	28 1/4''	44 1/4''			87
TR25-5016-ASAE		5''*16''	31 1/4''	47 1/4''		1 1/4''	90
TR25-5018		5''*18''	30 1/4''	48 1/4''		1''	92
TR25-5020		5''*20''	32 1/4''	52 1/4''			96
TR25-5024		5''*24''	36 1/4''	60 1/4''			106
TR25-5030		5''*30''	42 1/4''	72 1/4''			121
GD-TR25-5036		5''*36''	48 1/4''	84 1/4''			136
