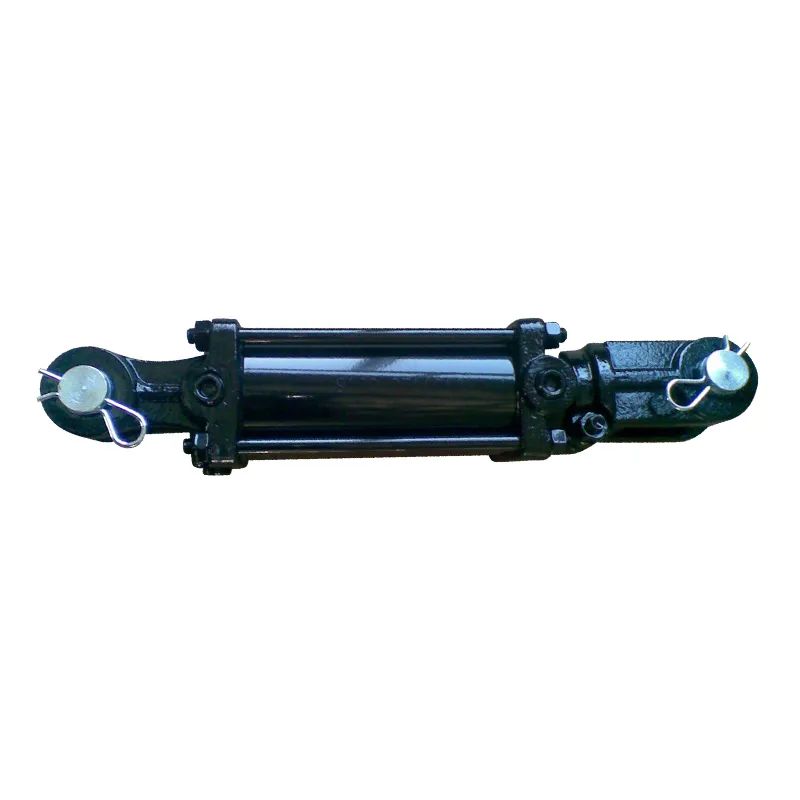

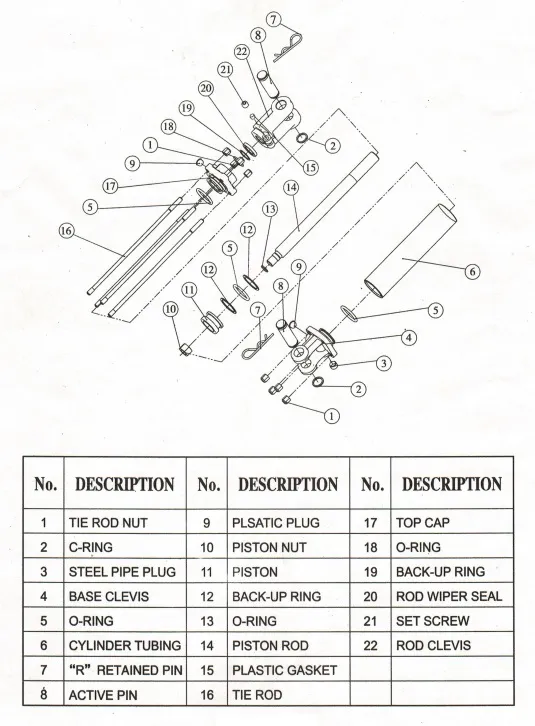

Tr3008asae Bore3" Stroke8" Tie Rod Hydraulic Cylinder

Tr3008asae Bore3" Stroke8" Tie Rod Hydraulic Cylinder

Customization:	Available
Certification:	GS, RoHS, CE, ISO9001
Pressure:	Medium Pressure

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Work Temperature

Normal Temperature

Acting Way

Double Acting

Working Method

Straight Trip

Adjusted Form

Regulated Type

Structure

Piston Type

Material

Carbon Steel

Standard

Ts16949

Cylinder Material

20#/45# Steel

Working Pressure

2500psi/3000psi

Seal Kits Brand

Parker/Hallite

Warranty

1 Year

Samples

Allowed

Transport Package

Polywood Case /Metal Case

Trademark

GD

Origin

China

HS Code

84122100

Production Capacity

100000PCS/Year

Packaging & Delivery

Package Size

100.00cm * 20.00cm * 30.00cm

Package Gross Weight

20.000kg

Product Description

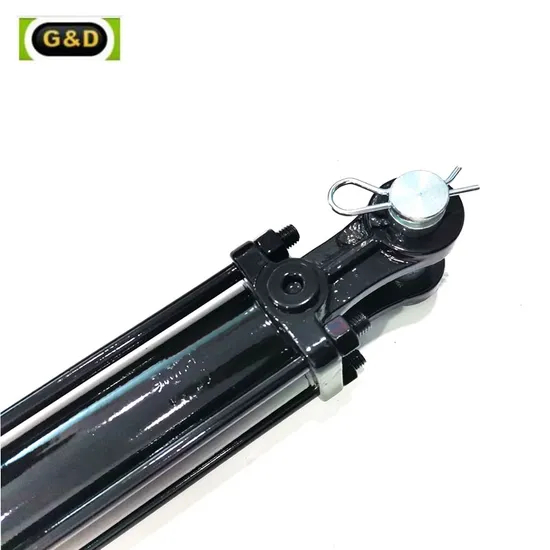

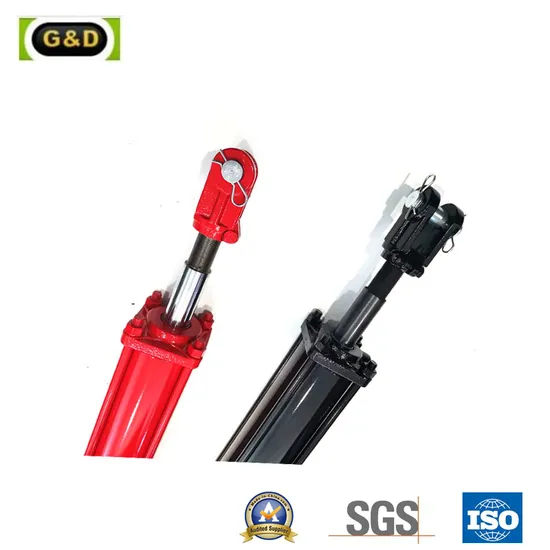

Standard Tie rod Hydraulic Cylinder
TR2008ASAE TR3008ASAE TR4008ASAE

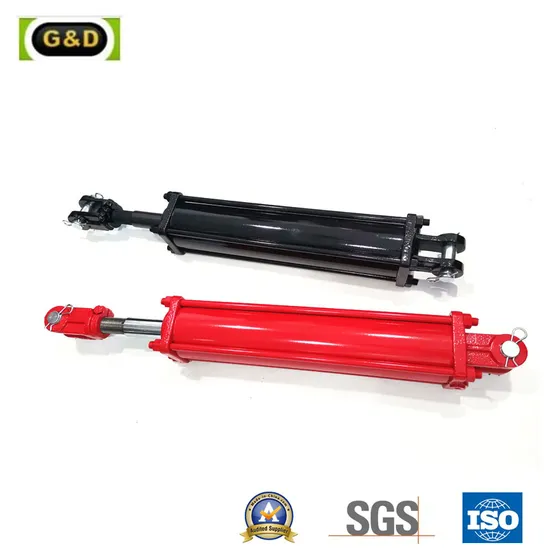

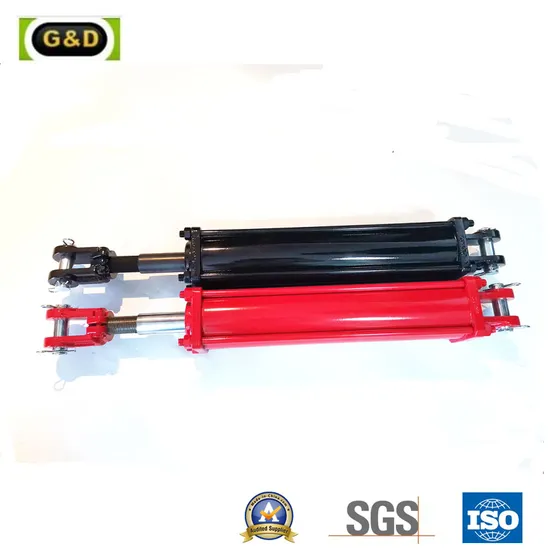

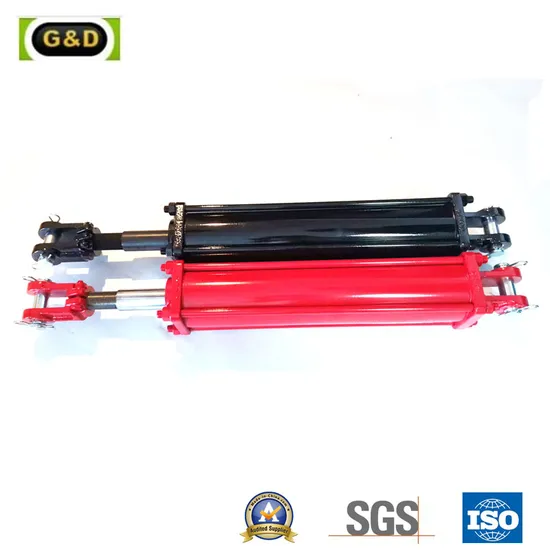

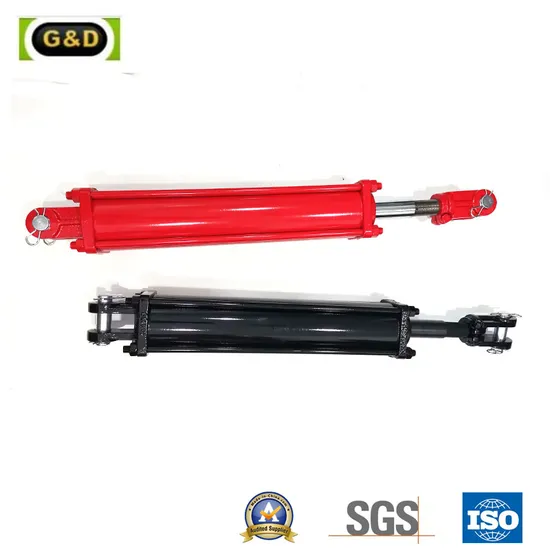

Tr3008asae Bore3" Stroke8" Tie Rod Hydraulic Cylinder

Specificattions:

Part Number	Rod Dia.	Bore x Stroke	Dimensions		Port Size	Pin Size	Weight (lbs)
Part Number	Rod Dia.	Bore x Stroke	Retracted	Extended	Port Size	Pin Size	Weight (lbs)
GD TR25-2004	1 1/8''	2''*4''	14 1/4''	18 1/4''	3/8NPT	1''	15
TR25-2006		2''*6''	16 1/4''	22 1/4''			16
TR25-2008		2''*8''	18 1/4''	26 1/4''			18
TR25-2008-ASAE		2''*8''	20 1/4''	28 1/4''			19
TR25-2010		2''*10''	20 1/4''	30 1/4''			19
TR25-2012		2''*12''	22 1/4''	34 1/4''			20
TR25-2014		2''*14''	24 1/4''	38 1/4''			22
TR25-2016		2''*16''	26 1/4''	42 1/4''			24
TR25-2018		2''*18''	28 1/4''	46 1/4''			26
TR25-2020		2''*20''	30 1/4''	50 1/4''			27
TR25-2024		2''*24''	34 1/4''	58 1/4''			30
TR25-2030		2''*30''	40 1/4''	70 1/4''			35
TR25-2036		2''*36''	46 1/4''	82 1/4''			40
TR25-2504	1 1/8''	2.5''*4''	14 1/4''	18 1/4''	3/8NPT	1''	18
TR25-2506		2.5''*6''	16 1/4''	22 1/4''			20
TR25-2508		2.5''*8''	18 1/4''	26 1/4''			22
TR25-2508-ASAE		2.5''*8''	20 1/4''	28 1/4''			22
TR25-2510		2.5''*10''	20 1/4''	30 1/4''			23
TR25-2512		2.5''*12''	22 1/4''	34 1/4''			25
TR25-2514		2.5''*14''	24 1/4''	38 1/4''			27
TR25-2516		2.5''*16''	26 1/4''	42 1/4''			28
TR25-2518		2.5''*18''	28 1/4''	46 1/4''			29
TR25-2520		2.5''*20''	30 1/4''	50 1/4''			31
TR25-2524		2.5''*24''	34 1/4''	58 1/4''			35
TR25-2530		2.5''*30''	40 1/4''	70 1/4''			45
TR25-2536		2.5''*36''	46 1/4''	82 1/4''			50
TR25-3004	1 1/4''	3''*4''	14 1/4''	18 1/4''	1/2NPT	1''	22
TR25-3006		3''*6''	16 1/4''	22 1/4''			24
TR25-3008		3''*8''	18 1/4''	26 1/4''			26
TR25-3008-ASAE		3''*8''	20 1/4''	28 1/4''			27
TR25-3010		3''*10''	20 1/4''	30 1/4''			28
TR25-3012		3''*12''	22 1/4''	34 1/4''			31
TR25-3014		3''*14''	24 1/4''	38 1/4''			33
TR25-3016		3''*16''	26 1/4''	42 1/4''			35
TR25-3016-ASAE		3''*16''	31 1/4''	47 1/4''		1 1/4''	38
TR25-3018	1 1/2''	3''*18''	28 1/4''	46 1/4''		1''	42
TR25-3020		3''*20''	30 1/4''	50 1/4''			44
TR25-3024		3''*24''	34 1/4''	58 1/4''			49
TR25-3030		3''*30''	40 1/4''	70 1/4''			58
GD-TR25-3036		3''*36''	46 1/4''	82 1/4''			67
TR25-3504	1 1/4''	3.5''*4''	14 1/4''	18 1/4''	1/2NPT	1''	29
TR25-3506		3.5''*6''	16 1/4''	22 1/4''			30
TR25-3508		3.5''*8''	18 1/4''	26 1/4''			34
TR25-3508-ASAE		3.5''*8''	20 1/4''	28 1/4''			35
TR25-3510		3.5''*10''	20 1/4''	30 1/4''			37
TR25-3512		3.5''*12''	22 1/4''	34 1/4''			39
TR25-3514		3.5''*14''	24 1/4''	38 1/4''			42
TR25-3516		3.5''*16''	26 1/4''	42 1/4''			44
TR25-3516-ASAE	1 1/2''	3.5''*16''	31 1/4''	47 1/4''		1 1/4''	50
TR25-3518	1 1/4''	3.5''*18''	28 1/4''	46 1/4''		1''	47
TR25-3520	1 1/4''	3.5''*20''	30 1/4''	50 1/4''			49
TR25-3524	1 1/2''	3.5''*24''	34 1/4''	58 1/4''			58
TR25-3530		3.5''*30''	40 1/4''	70 1/4''			70
TR25-3536		3.5''*36''	46 1/4''	82 1/4''			72
TR25-4004	1 1/4''	4''*4''	14 1/4''	18 1/4''	1/2NPT	1''	33
TR25-4006		4''*6''	16 1/4''	22 1/4''			36
TR25-4008		4''*8''	18 1/4''	26 1/4''			39
TR25-4008-ASAE		4''*8''	20 1/4''	28 1/4''			41
TR25-4010		4''*10''	20 1/4''	30 1/4''			42
TR25-4012		4''*12''	22 1/4''	34 1/4''			45
GD-TR25-4014		4''*14''	24 1/4''	38 1/4''			47
TR25-4016		4''*16''	26 1/4''	42 1/4''			49
TR25-4016-ASAE	2''	4''*16''	31 1/4''	47 1/4''		1 1/4''	63
TR25-4018	1 1/2''	4''*18''	28 1/4''	46 1/4''		1''	55
TR25-4020		4''*20''	30 1/4''	50 1/4''			58
TR25-4024-150		4''*24''	34 1/4''	58 1/4''			64
TR25-4024-175	1 3/4''	4''*24''	34 1/4''	58 1/4''			68
TR25-4024-200	2''	4''*24''	34 1/4''	58 1/4''			73
TR25-4030		4''*30''	40 1/4''	70 1/4''			84
TR25-4036		4''*36''	46 1/4''	82 1/4''			95
TR25-5004	1 1/2''	5''*4''	16 1/4''	20 1/4''	1/2NPT	1''	53
GD-TR25-5006		5''*6''	18 1/4''	24 1/4''			55
TR25-5008		5''*8''	20 1/4''	28 1/4''			64
TR25-5010		5''*10''	22 1/4''	32 1/4''			68
TR25-5012	2''	5''*12''	24 1/4''	36 1/4''			77
TR25-5014		5''*14''	26 1/4''	40 1/4''			82
TR25-5016		5''*16''	28 1/4''	44 1/4''			87
TR25-5016-ASAE		5''*16''	31 1/4''	47 1/4''		1 1/4''	90
TR25-5018		5''*18''	30 1/4''	48 1/4''		1''	92
TR25-5020		5''*20''	32 1/4''	52 1/4''			96
TR25-5024		5''*24''	36 1/4''	60 1/4''			106
TR25-5030		5''*30''	42 1/4''	72 1/4''			121
GD-TR25-5036		5''*36''	48 1/4''	84 1/4''			136

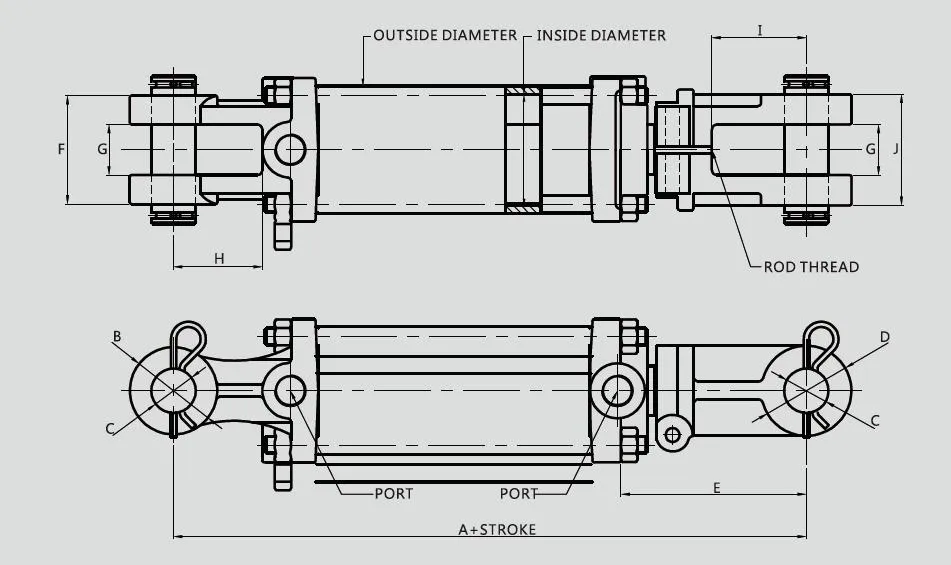

PART NUMBER

INSIDER DIAMETER

OUTSIDER DIAMETER

*A

B

*C

*D

*E

F

G

H

1

*J

ROD THREAD

PORT

TR2.5-20-

2.00"

2.37"

10.25"

2.00"

1.01"

2.00"

3.75"

2.25n

1.12"

2.06"

2.12"

2.62"

1.125-12 UNF

3/8-NPT

TR2.5-25-

2.50"

2.87"

10.25"

2.00"

1.01"

2.25"

3.75"

2.25"

1.12"

2.06"

2.12"

2.62"

1.125-12 UNF

3/8-NPT

TR2.5-30-

3.00"

3.37"

10.25"

2.00"

1.01"

2.25"

3.75"

2.25"

1.12"

2.06"

2.12"

2.62"

1.250-12 UNF

1/2-NPT

TR2.5-35-

3.50"

3.87"

10.25"

2.00"

1.01"

2.25"

3.62"

2.50"

1.12"

2.06"

2.12"

2.62"

1.250-12 UNF

1/2-NPT

TR2.5-40-

4.00"

4.37"

10.25"

2.25"

1.01"

2.25"

3.56"

2.62"

1.12"

2.06"

2.12"

2.62"

1.250-12 UNF

1/2-NPT

TR2.5-50-

5.00"

5.37"

12.25"

2.87"

1.26"

2.75"

4.18"

3.50"

1.12"

2.25"

2.12"

3.31"

1.500-12 UNF

1/2-NPT

*FOR 8.00" ASAE STROKE :*A= 12.25n AND FOR 16.00" ASAE STROKE:*A= 15.50"

*FOR 8.00" STROKE :*E= 5.75"(2.0(T TO 3.00" BORE) *E= 5.62n(3.50" BORE) *E = 5.56"(4.0(T BORE)

*FOR 16.00" ASAE STROKE: *E = 9.00"(2.00" TO 3.00B BORE) *E = 8.87"(3.50" BORE) *E = 8.81"(4.00" BORE)

*FOR TTR2.5-2518 TO TTR2.5-2536: ROD THREAD= 1.125-12 UNF

*FOR TTR2.5-4016-ASAE TO TR2.5-4036:*D= 2.50" *J = 2.75" *RODTHREAD= 1.500-12 UNF

*FOR 16.00'ASAE STROKE:*C = 1.26*

SEAL TEMPERATURE RANGE: -30°C/+100°C(-22°F/+212°F)

SEAL MAXIMUM SPEED:3 FT/SEC

MAXIMUM RETRACTED WORKING PRESSURE= 2500 PSI

DIMENSIONS A AND E ARE FOR REFERENCES ONLY AS CLEVIS IS ADJUSTABLE

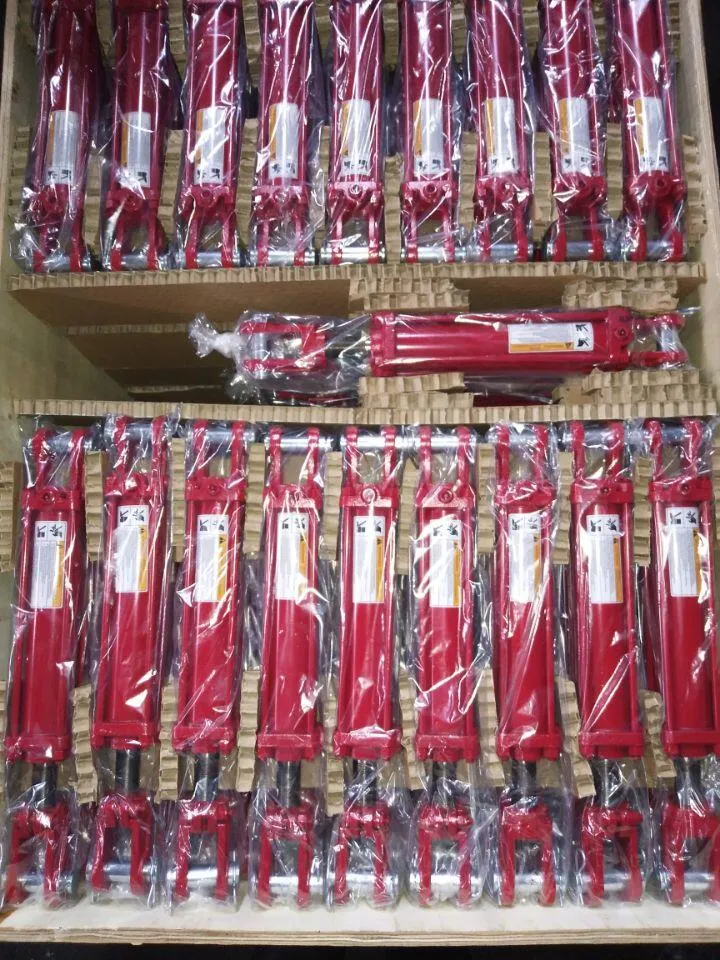

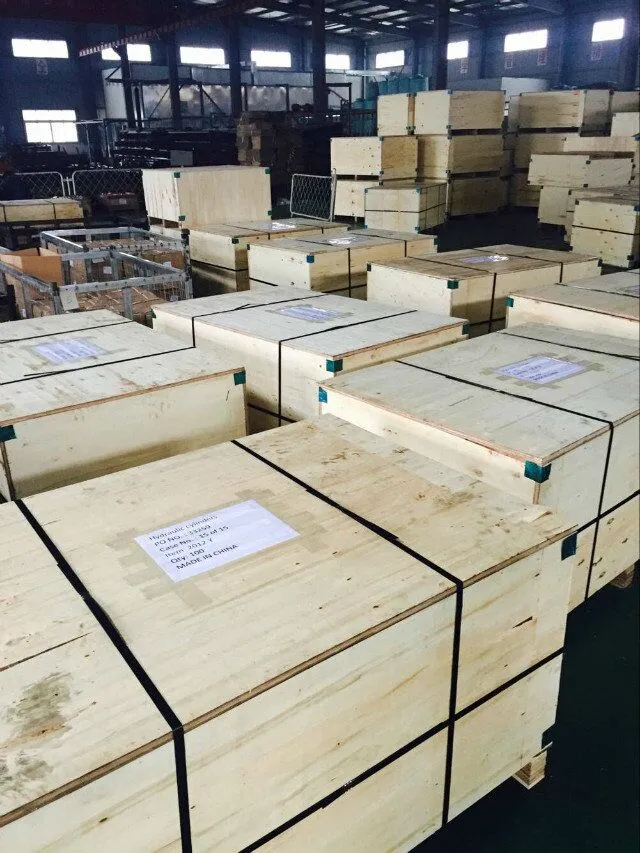

Packaging

We use metal case/plywood case /carton or as Customer's requirements

Delivery time:30-40 days

Hydraulic cylinders can be built according to your drawings or technical requirement.
Sample order are acceptable.
