Standard welded bushing Hydraulic Cylinder

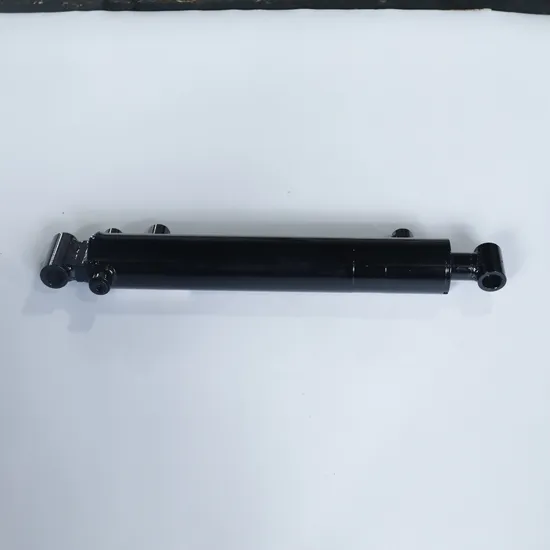

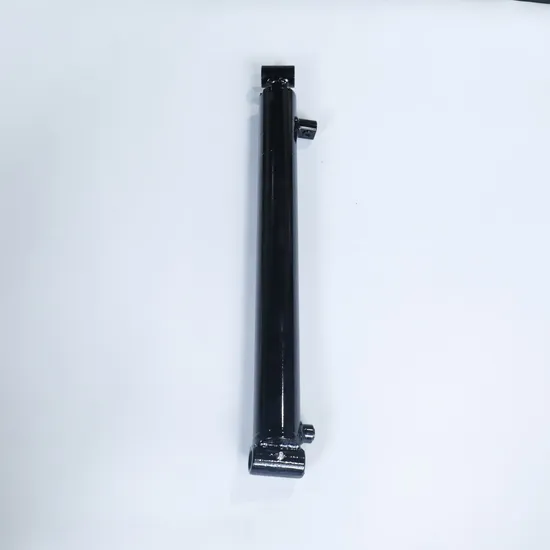

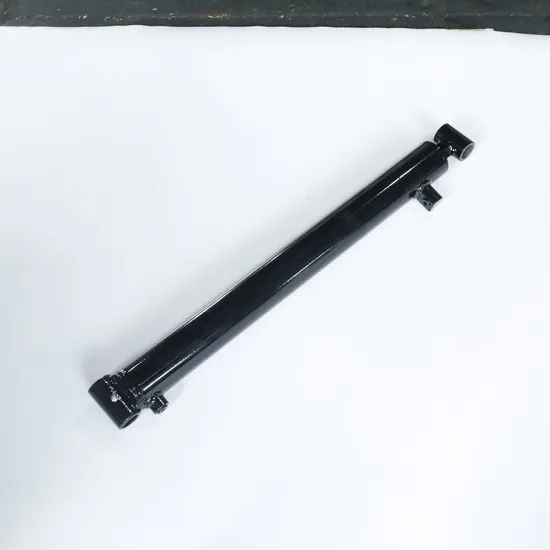

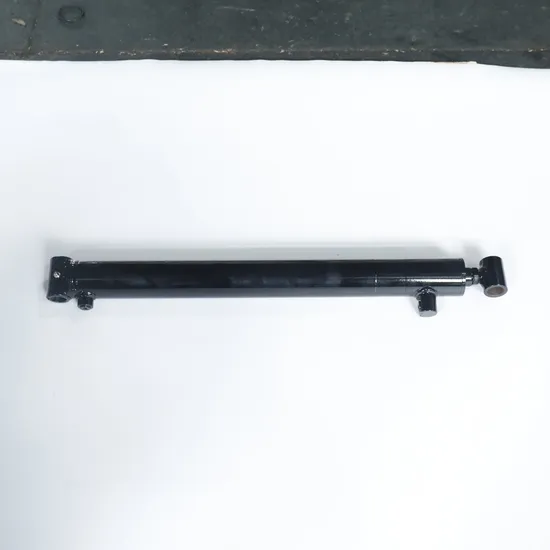

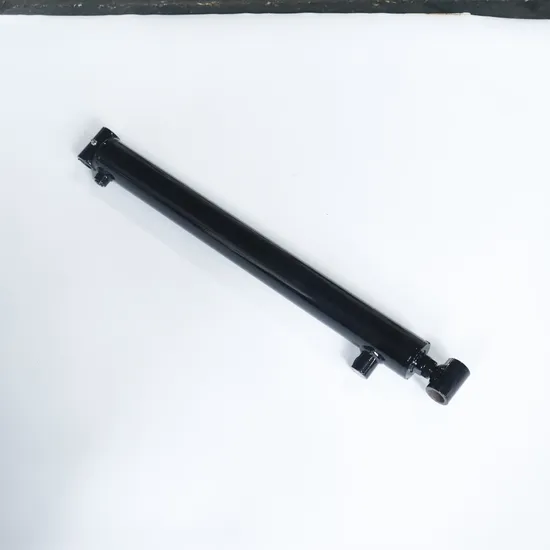

Standard welded Cross tube Hydraulic Cylinder
| Part Number | Rod Dia. | Bore x Stroke | Dimensions | Port Size | Pin Size | Weight (lbs) |
| Retracted | Extended |
| WBU30-1504 | 1'' | 1.5''*4'' | 12'' | 16'' | 1/4NPT | 3/4'' | 8 |
| WBU30-1506 | 1.5''*6'' | 14'' | 20'' | 9 |
| WBU30-1508 | 1.5''*8'' | 16'' | 24'' | 10 |
| WBU30-1510 | 1.5''*10'' | 18'' | 28'' | 11 |
| WBU30-1512 | 1.5''*12'' | 20'' | 32'' | 13 |
| WBU30-1514 | 1.5''*14'' | 22'' | 36'' | 14 |
| WBU30-1516 | 1.5''*16'' | 24'' | 40'' | 15 |
| WBU30-1518 | 1.5''*18'' | 26'' | 44'' | 16 |
| WBU30-1520 | 1.5''*20'' | 28'' | 48'' | 18 |
| WBU30-1524 | 1.5''*24'' | 32'' | 56'' | 20 |
| WBU30-2004 | 1 1/4'' | 2''*4'' | 12'' | 16'' | 3/8NPT | 1'' | 12 |
| WBU30-2006 | 2''*6'' | 14'' | 20'' | 13 |
| WBU30-2008 | 2''*8'' | 16'' | 24'' | 15 |
| WBU30-2010 | 2''*10'' | 18'' | 28'' | 17 |
| WBU30-2012 | 2''*12'' | 20'' | 32'' | 19 |
| WBU30-2014 | 2''*14'' | 22'' | 36'' | 20 |
| WBU30-2016 | 2''*16'' | 24'' | 40'' | 22 |
| WBU30-2018 | 2''*18'' | 26'' | 44'' | 24 |
| WBU30-2020 | 2''*20'' | 28'' | 48'' | 25 |
| WBU30-2024 | 2''*24'' | 32'' | 56'' | 29 |
| WBU30-2028 | 2''*28'' | 36'' | 64'' | 32 |
| WBU30-2030 | 2''*30'' | 38'' | 68'' | 34 |
| WBU30-2032 | 2''*32'' | 40'' | 72'' | 36 |
| WBU30-2036 | 2''*36'' | 44'' | 80'' | 39 |
| WBU30-2040 | 2''*40'' | 48'' | 88'' | 42 |
| WBU30-2048 | 2''*48'' | 56'' | 104'' | 49 |
| WBU30-2504 | 1 1/2'' | 2.5''*4'' | 12'' | 16'' | 1/2NPT | 1'' | 16 |
| WBU30-2506 | 2.5''*6'' | 14'' | 20'' | 18 |
| WBU30-2508 | 2.5''*8'' | 16'' | 24'' | 20 |
| WBU30-2510 | 2.5''*10'' | 18'' | 28'' | 22 |
| WBU30-2512 | 2.5''*12'' | 20'' | 32'' | 25 |
| WBU30-2514 | 2.5''*14'' | 22'' | 36'' | 27 |
| WBU30-2516 | 2.5''*16'' | 24'' | 40'' | 29 |
| WBU30-2518 | 2.5''*18'' | 26'' | 44'' | 31 |
| WBU30-2520 | 2.5''*20'' | 28'' | 48'' | 34 |
| WBU30-2524 | 2.5''*24'' | 32'' | 56'' | 38 |
| WBU30-2528 | 2.5''*28'' | 36'' | 64'' | 43 |
| WBU30-2530 | 2.5''*30'' | 38'' | 68'' | 45 |
| WBU30-2532 | 2.5''*32'' | 40'' | 72'' | 47 |
| WBU30-2536 | 2.5''*36'' | 44'' | 80'' | 51 |
| WBU30-2540 | 2.5''*40'' | 48'' | 88'' | 56 |
| WBU30-2548 | 2.5''*48'' | 56'' | 104'' | 65 |
| WBU30-3004 | 1 1/2'' | 3''*4'' | 12'' | 16'' | 1/2NPT | 1'' | 19 |
| WBU30-3006 | 3''*6'' | 14'' | 20'' | 22 |
| WBU30-3008 | 3''*8'' | 16'' | 24'' | 24 |
| WBU30-3010 | 3''*10'' | 18'' | 28'' | 27 |
| WBU30-3012 | 3''*12'' | 20'' | 32'' | 29 |
| WBU30-3014 | 3''*14'' | 22'' | 36'' | 32 |
| WBU30-3016 | 3''*16'' | 24'' | 40'' | 34 |
| WBU30-3018 | 3''*18'' | 26'' | 44'' | 36 |
| WBU30-3020 | 3''*20'' | 28'' | 48'' | 39 |
| WBU30-3024 | 3''*24'' | 32'' | 56'' | 44 |
| WBU30-3028 | 3''*28'' | 36'' | 64'' | 49 |
| WBU30-3030 | 3''*30'' | 38'' | 68'' | 51 |
| WBU30-3032 | 3''*32'' | 40'' | 72'' | 54 |
| WBU30-3036 | 3''*36'' | 44'' | 80'' | 59 |
| WBU30-3040 | 3''*40'' | 48'' | 88'' | 63 |
| WBU30-3048 | 3''*48'' | 56'' | 104'' | 73 |
| WBU30-3504 | 1 3/4'' | 3.5''*4'' | 14'' | 18'' | 1/2NPT | 1 1/4'' | 27 |
| WBU30-3506 | 3.5''*6'' | 16'' | 22'' | 30 |
| WBU30-3508 | 3.5''*8'' | 18'' | 26'' | 33 |
| WBU30-3510 | 3.5''*10'' | 20'' | 30'' | 36 |
| WBU30-3512 | 3.5''*12'' | 22'' | 34'' | 39 |
| WBU30-3514 | 3.5''*14'' | 24'' | 38'' | 42 |
| WBU30-3516 | 3.5''*16'' | 26'' | 42'' | 45 |
| WBU30-3518 | 3.5''*18'' | 28'' | 46'' | 48 |
| WBU30-3520 | 3.5''*20'' | 30 | 50'' | 51 |
| WBU30-3524 | 3.5''*24'' | 34 | 58'' | 57 |
| WBU30-3528 | 3.5''*28'' | 38 | 66'' | 64 |
| WBU30-3530 | 3.5''*30'' | 40 | 70'' | 67 |
| WBU30-3532 | 3.5''*32'' | 42 | 74'' | 70 |
| WBU30-3536 | 3.5''*36'' | 46 | 82'' | 76 |
| WBU30-3540 | 3.5''*40'' | 50 | 90'' | 82 |
| WBU30-3548 | 3.5''*48'' | 58 | 106'' | 94 |
| WBU30-4004 | 2'' | 4''*4'' | 14'' | 18'' | 1/2NPT | 1 1/2'' | 34 |
| WBU30-4006 | 4''*6'' | 16'' | 22'' | 38 |
| WBU30-4008 | 4''*8'' | 18'' | 26'' | 41 |
| WBU30-4010 | 4''*10'' | 20'' | 30'' | 45 |
| WBU30-4012 | 4''*12'' | 22'' | 34'' | 49 |
| WBU30-4014 | 4''*14'' | 24'' | 38'' | 52 |
| WBU30-4016 | 4''*16'' | 26'' | 42'' | 56 |
| WBU30-4018 | 4''*18'' | 28'' | 46'' | 60 |
| WBU30-4020 | 4''*20'' | 30 | 50'' | 63 |
| WBU30-4024 | 4''*24'' | 34 | 58'' | 71 |
| WBU30-4028 | 4''*28'' | 38 | 66'' | 78 |
| WBU30-4030 | 4''*30'' | 40 | 70'' | 82 |
| WBU30-4032 | 4''*32'' | 42 | 74'' | 85 |
| WBU30-4036 | 4''*36'' | 46 | 82'' | 93 |
| WBU30-4040 | 4''*40'' | 50 | 90'' | 100 |
| WBU30-4048 | 4''*48'' | 58 | 106'' | 115 |
| WBU30-5004 | 2 1/2'' | 5''*4'' | 14'' | 18'' | 1/2NPT | 1 3/4'' | 65 |
| WBU30-5006 | 5''*6'' | 16'' | 22'' | 70 |
| WBU30-5008 | 5''*8'' | 18'' | 26'' | 75 |
| WBU30-5010 | 5''*10'' | 20'' | 30'' | 80 |
| WBU30-5012 | 5''*12'' | 22'' | 34'' | 85 |
| WBU30-5014 | 5''*14'' | 24'' | 38'' | 90 |
| WBU30-5016 | 5''*16'' | 26'' | 42'' | 96 |
| WBU30-5018 | 5''*18'' | 28'' | 46'' | 101 |
| WBU30-5020 | 5''*20'' | 30 | 50'' | 106 |
| WBU30-5024 | 5''*24'' | 34 | 58'' | 116 |
| WBU30-5028 | 5''*28'' | 38 | 66'' | 126 |
| WBU30-5030 | 5''*30'' | 40 | 70'' | 131 |
| WBU30-5032 | 5''*32'' | 42 | 74'' | 137 |
| WBU30-5036 | 5''*36'' | 46 | 82'' | 147 |
| WBU30-5040 | 5''*40'' | 50 | 90'' | 157 |
| WBU30-5048 | 5''*48'' | 58 | 106'' | 178 |

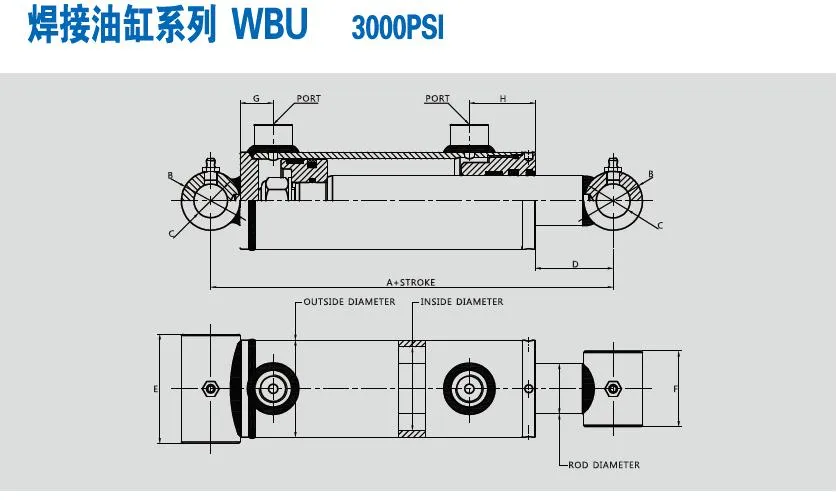

| PART NUMBER | INSIDER DIAMETER | OUTSIDER DIAMETER | A | B | c | D | E | F | G | H | ROD DIAMETER | PORT |
| WBU15- | 1.50" | 2.00" | 8.00" | 1.25" | 0.76" | 2.62" | 2.25" | 2.00" | 1.06" | 1.87" | 1.00" | 1/4NPT |
| WBU20- | 2.00" | 2.50" | 8.00" | 1.50" | 1.01" | 2.25" | 2.75" | 2.25" | 1.00" | 2.06" | 1.25" | 3/8NPT |
| WBU25- | 2.50" | 3.00" | 8.00" | 1.50" | 1.01" | 2.25" | 3.25" | 2.25" | 0.81" | 2.18" | 1.50" | 1/2NPT |
| WBU30- | 3.00" | 3.50" | 8.00" | 1.50" | 1.01" | 2.25" | 3.75" | 2.25" | 0.81" | 2.18" | 1.50" | 1/2NPT |
| WBU35- | 3.50" | 4.00" | 10.00" | 2.00" | 1.26" | 4.00" | 4.25" | 2.25" | 0.81" | 2.18" | 1.75" | 1/2NPT |
| WBU40- | 4.00" | 4.50" | 10.00" | 2.25" | 1.51" | 3.75" | 4.75" | 2.50" | 0.81" | 2.18" | 2.00" | 1/2NPT |
| WBU50- | 5.00" | 5.50" | 10.00" | 3.00" | *1.76" | 3.50" | 5.75" | 3.25" | 1.25" | 2.75" | 2.50" | 1/2NPT |
| FOR 5.00" BORE:2.00"PINS ARE AVAILABLE WITH REMOVABLE BUSHING |
| FOR 1.50" TO 4.00" BORE SAE PORTS ARE AVAILABLE |
| SEAL TEMPERATURE RANGE: -30°C/+100oC(-22°F/ + 212°F) |
| SEAL MAXIMUM SPEED:3 FT/SEC |
| MAXIMUM RETRACTED WORKING PRESSURE= 3000 PSI |
Delivery time:30-40 days
Hydraulic cylinders can be built according to your drawings or technical requirement.
Sample order are acceptable.
