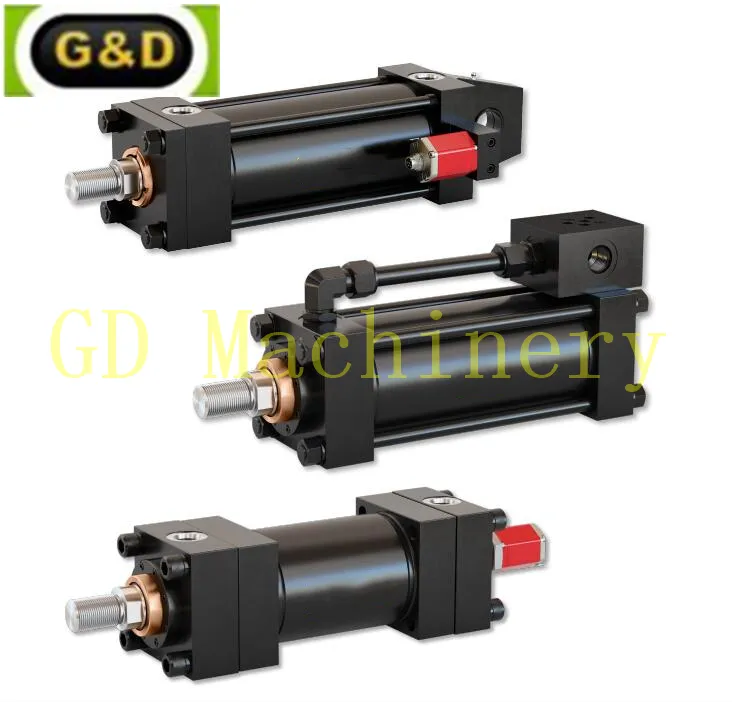

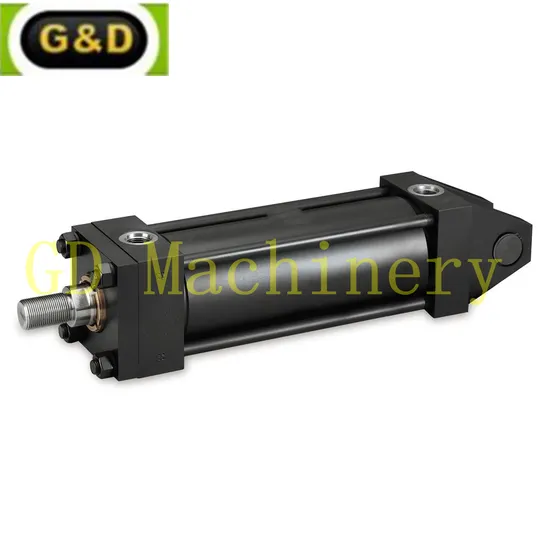

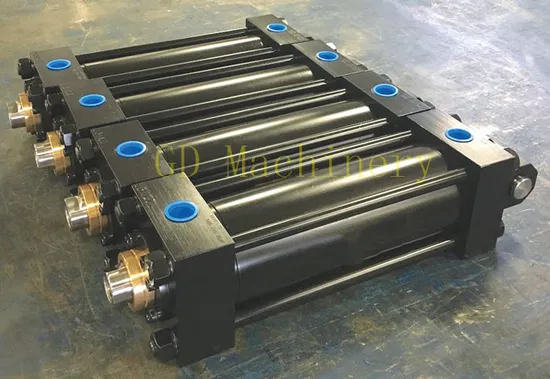

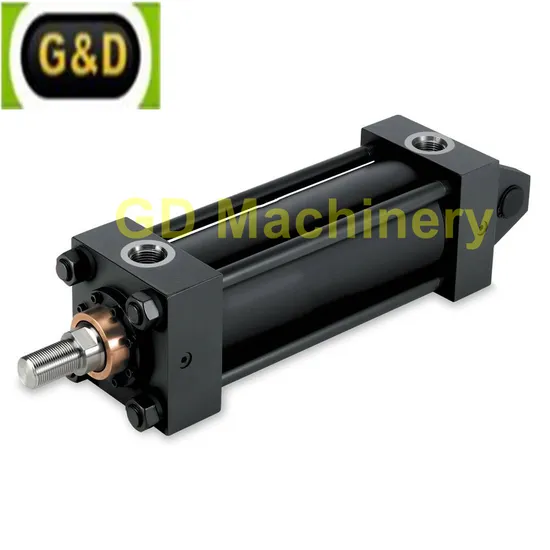

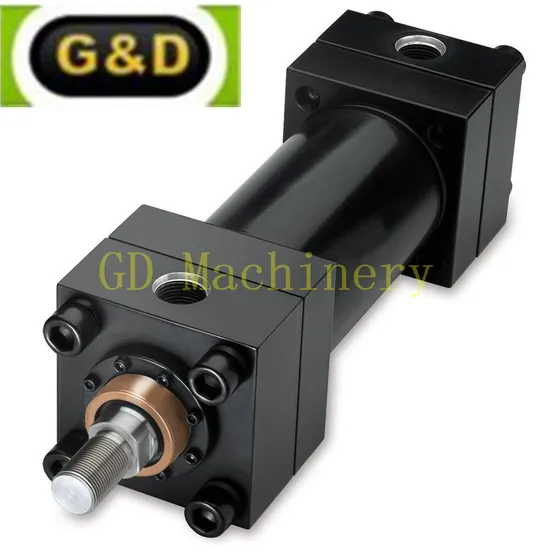

GD Series 2H/3H Gen II 3,000 PSI
Heavy Duty Tie Rod Hydraulic Cylinders
Heavy Duty Hydraulic Cylinders, tie rod style Series 2H/2HD & Series 3H/3HD, and non-tie rod Series 2HB/3HB set the standard for performance, durability and trouble-free operation with superior design and quality to ensure long cylinder service life.
GD Series 2H/3H Gen II 3,000 psi Heavy Duty Hydraulic Cylinders set the standard for performance, durability, and trouble-free operation. GD's superior design, the use of high-quality materials and stringent manufacturing practices provide all customers with long cylinder service life and reduced operating costs.
PERFORMANCE CHARACTERISTICS
ANSI/(NFPA) T3.6.7R3 - 2009
Steel
3000 psi
Hydraulic Oil
-10° to +165 °F

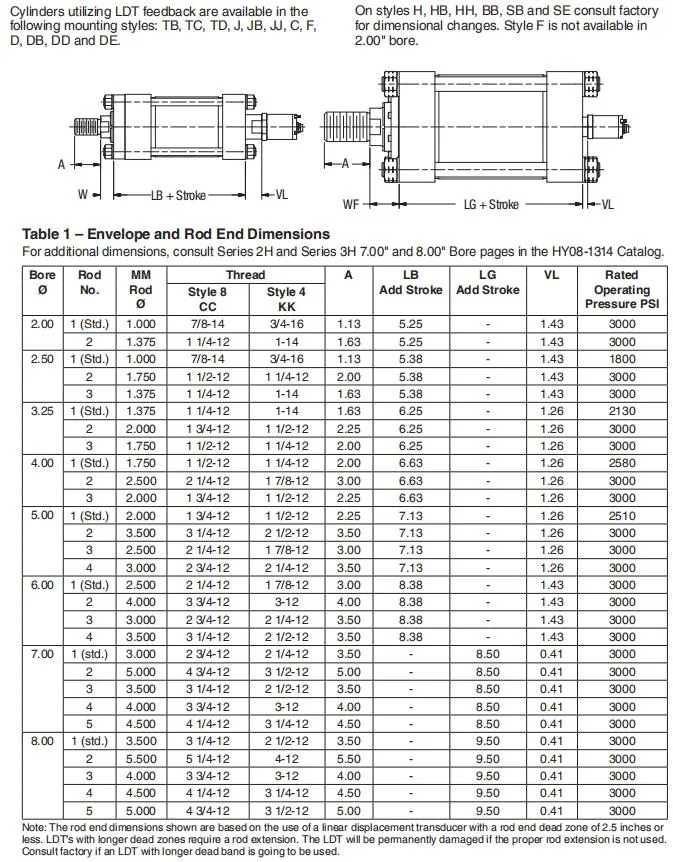

1.50" through 6.00" & 7.00" & 8.00" inch
0.625" through 5.500" inch
19 standard styles at
various application ratings
Tie Rod & Bolted Construction
Available in any practical stroke length

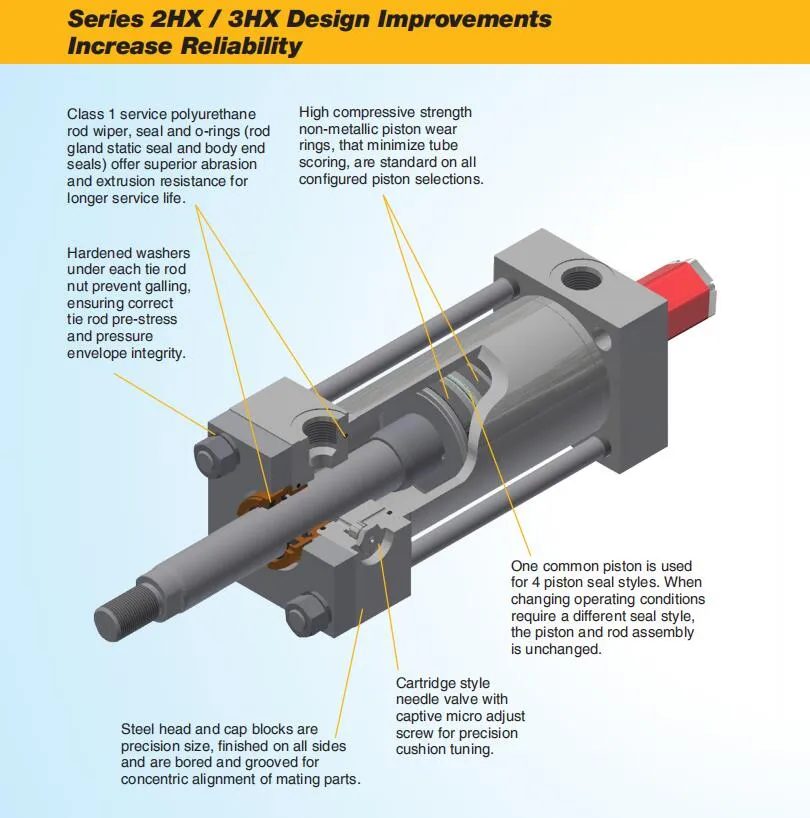

Design features such as the "Jewel" rod gland assembly, hard chrome plated piston rods, and stepped cushions provide increased machine productivity.
Our new Universal Piston design addresses the performance balance between low pressure sealability, low friction, extrusion resistance and seal life. The TS2000 Rod Seal in Series 2H/3H and Tri-Lip Rod Seal in Series 2HD/3DH/2HB/3HB in combination with the standard polyurethane Double-Service Wiperseal comprises a sealing system that delivers dry rod performance. Pressure actuated polyurethane O-ring Body End Seals provide leak free service.

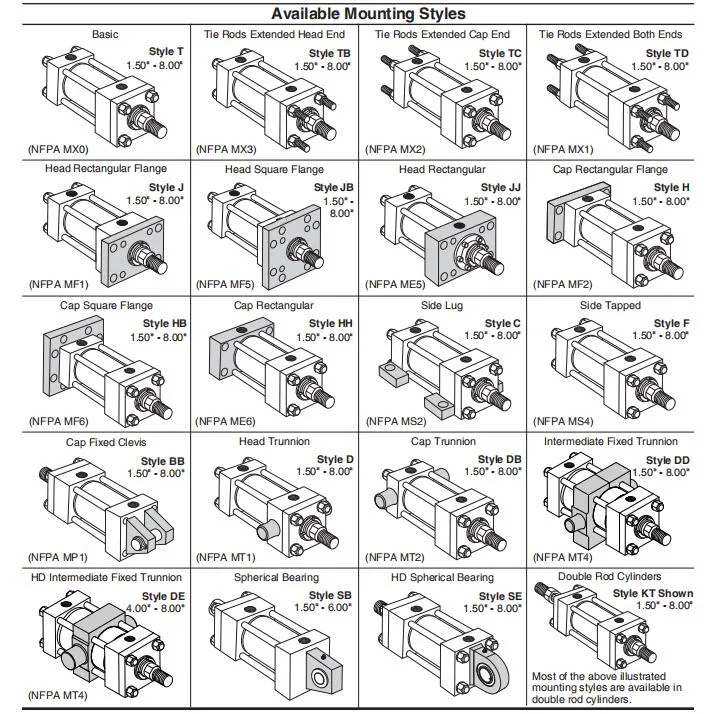

Monting types
Every cylinder is individually tested before leaving our plant to assure proper performance and leak free operation and comes with an 12-month warranty.
Applications:
• Energy Production, Development & Service
• Power Generation
• Defense
• Government (Non-Defense)
• Factory Automation
• Machine Tools
• Molding
• Vehicle Assembly Facilities
• Mining
• Oil & Gas
• Food & Beverage
• Industrial Chemical Processing
• Lumber & Wood
• Plastic Processing
| Qingdao GD Machinery CO.,LTD. | |
| Product | |
| tie rod hydraulic cylinder, welded hydraulic cylinder, telescopic cylinders cylinder, flange type hydraulic cylinder, hydraulic cylinder with valve function, hydraulic power unit, Hydraulic manifold block, pneumatic fitting, | |
| Material | Tube - Cold Drawn Precision seamless Tubing Mounts - Trunnion with angular Swivels |
| Application | Agriculture, Concrete & Asphalt, Forestry & Logging,Mining & Rock Crushing, Snow & Ice Control,Waste Management Engineering Equipment |
| Feature | 1.High quality with a reasonable price 2.ISO9001-2008 3.Customized specification are accepted |
| Payment | T/T;L/C,WESTERN UNION. |
| Port | Qingdao ,China |
| Quotation | According to the specific request |
| MOQ | According to the product |
| Packaging | metal case;plywood case;carton or as requirement |
| Delivery time | 30days upon receipt of 30% deposit; or upon receipt of relevant L/C; |

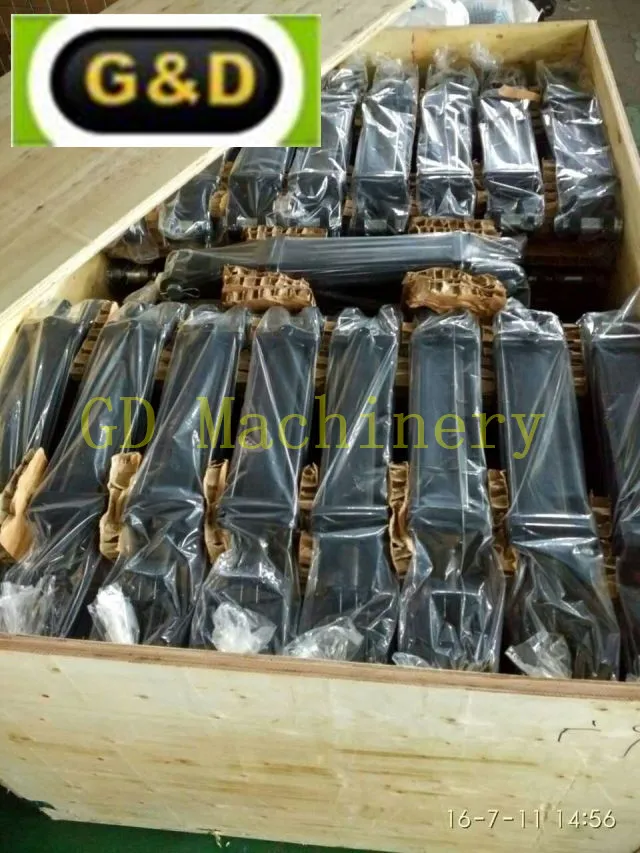

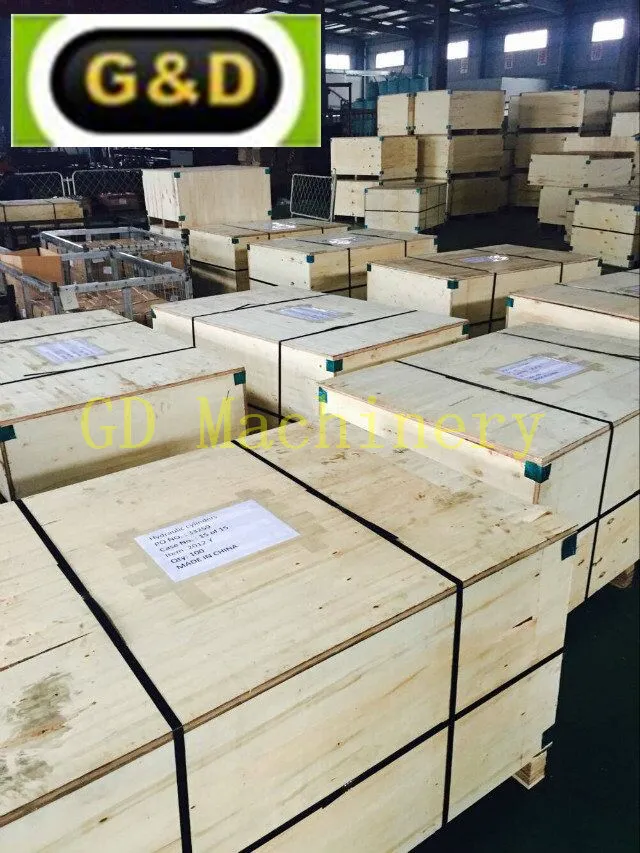

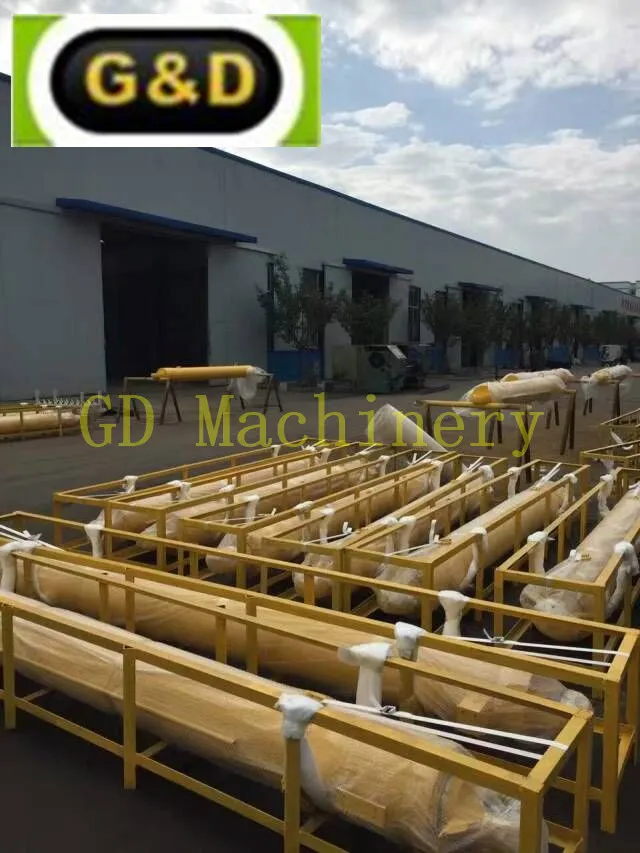

Packaging
We use metal case,plywood case /carton or as Customer's requirements
Hydraulic cylinders can be built according to your drawings or technical requirement.
Sample order are acceptable
Please kindly contact:
Joyce
