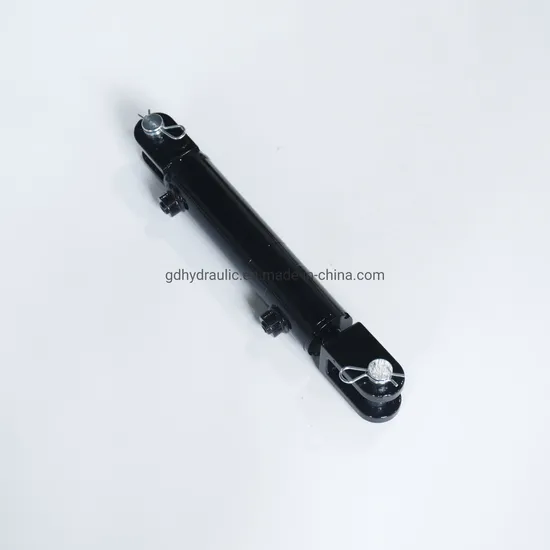

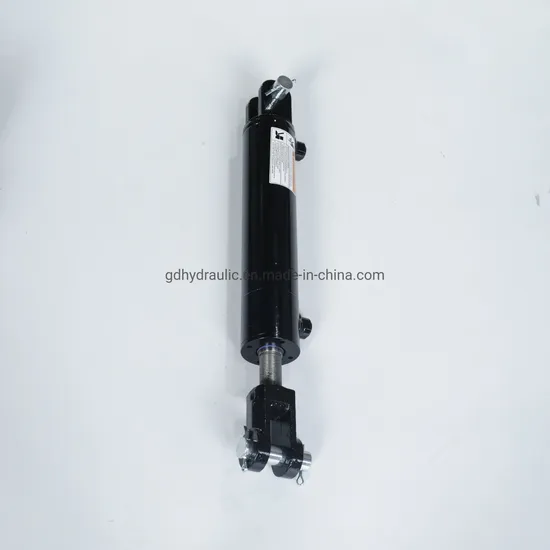

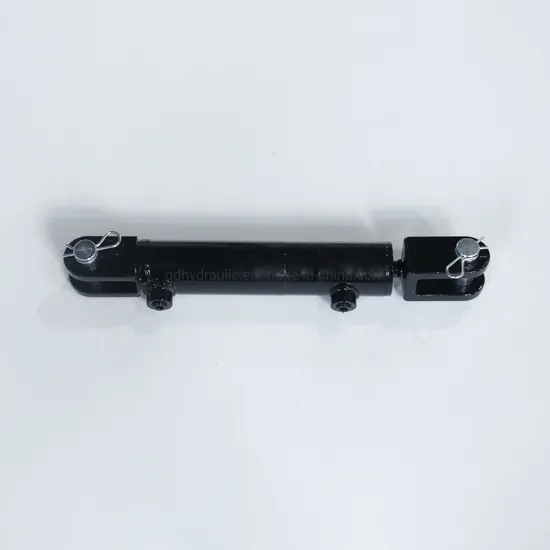

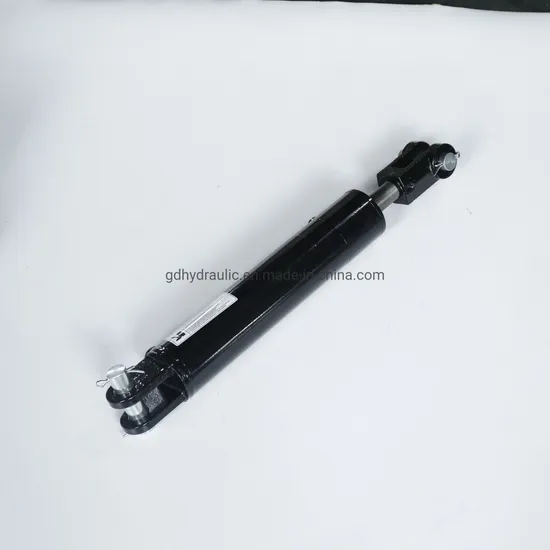

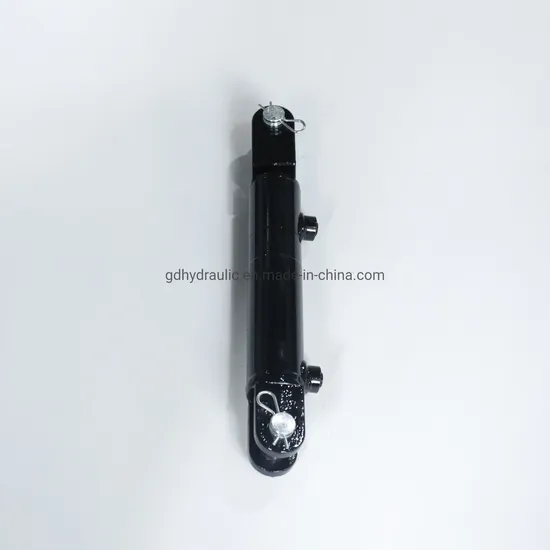

Clevis End Hydraulic Cylinder 3500psi Heavy Duty Clevis 2" Bore Cylinder

Clevis End Hydraulic Cylinder 3500psi Heavy Duty Clevis 2" Bore Cylinder

Customization:	Available
Certification:	GS, RoHS, CE, ISO9001
Pressure:	Medium Pressure

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Work Temperature

Normal Temperature

Acting Way

Double Acting

Working Method

Straight Trip

Adjusted Form

Regulated Type

Structure

Piston Type

Material

Carbon Steel

Standard

Ts16949

Cylinder Material

20#/45# Steel

Working Pressure

2500psi/3000psi

Seal Kits Brand

Hallite

Warranty

1 Year

Samples

Allowed

Transport Package

Polywood Case /Metal Case

Specification

1200*1000*1000

Trademark

GD

Origin

China

HS Code

84122100

Production Capacity

100000PCS/Year

Packaging & Delivery

Package Size

100.00cm * 20.00cm * 30.00cm

Package Gross Weight

20.000kg

Product Description

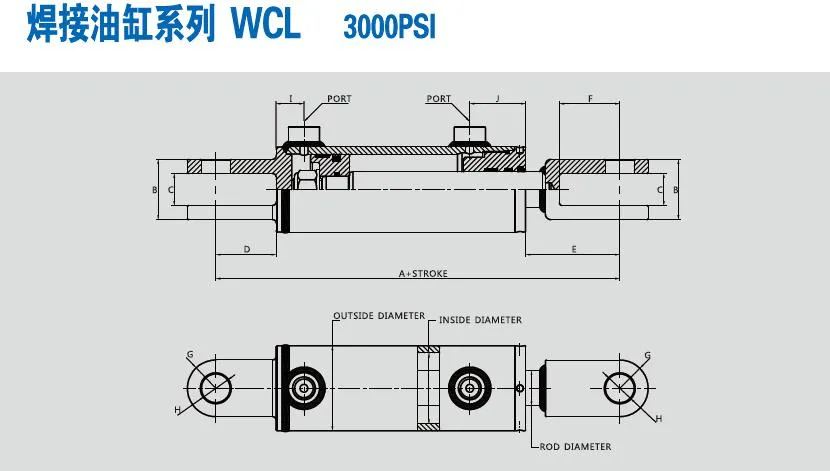

Standard Clevis welded Hydraulic Cylinder

Clevis End Hydraulic Cylinder 3500psi Heavy Duty Clevis 2" Bore Cylinder

Part Number	Rod Dia.	Bore x Stroke	Dimensions		Port Size	Pin Size	Weight (lbs)
Part Number	Rod Dia.	Bore x Stroke	Retracted	Extended	Port Size	Pin Size	Weight (lbs)
WCL30-1504	1''	1.5''*4''	14 1/4''	18 1/4''	3/8NPT	3/4''	8
WCL30-1506		1.5''*6''	16 1/4''	22 1/4''			9
WCL30-1508		1.5''*8''	18 1/4''	26 1/4''			11
WCL30-1510		1.5''*10''	20 1/4''	30 1/4''			12
WCL30-1512		1.5''*12''	22 1/4''	34 1/4''			13
WCL30-1514		1.5''*14''	24 1/4''	38 1/4''			14
WCL30-1516		1.5''*16''	26 1/4''	42 1/4''			15
WCL30-1518		1.5''*18''	28 1/4''	46 1/4''			17
WCL30-1520		1.5''*20''	30 1/4''	50 1/4''			18
WCL30-1524		1.5''*24''	34 1/4''	58 1/4''			20
WCL30-2004	1 1/4''	2''*4''	14 1/4''	18 1/4''	3/8NPT	1''	14
WCL30-2006		2''*6''	16 1/4''	22 1/4''			16
WCL30-2008		2''*8''	18 1/4''	26 1/4''			18
WCL30-2010		2''*10''	20 1/4''	30 1/4''			19
WCL30-2012		2''*12''	22 1/4''	34 1/4''			21
WCL30-2014		2''*14''	24 1/4''	38 1/4''			23
WCL30-2016		2''*16''	26 1/4''	42 1/4''			25
WCL30-2018		2''*18''	28 1/4''	46 1/4''			26
WCL30-2020		2''*20''	30 1/4''	50 1/4''			28
WCL30-2024		2''*24''	34 1/4''	58 1/4''			31
WCL30-2028		2''*28''	38 1/4''	66 1/4''			35
WCL30-2030		2''*30''	40 1/4''	70 1/4''			36
WCL30-2032		2''*32''	42 1/4''	74 1/4''			38
WCL30-2034		2''*34''	44 1/4''	78 1/4''			40
WCL30-2036		2''*36''	46 1/4''	82 1/4''			42
WCL30-2040		2''*40''	50 1/4''	90 1/4''			45
WCL30-2048		2''*48''	58 1/4''	106 1/4''			52
WCL30-2504	1 1/2''	2.5''*4''	14 1/4''	18 1/4''	1/2NPT	1''	18
WCL30-2506		2.5''*6''	16 1/4''	22 1/4''			20
WCL30-2508		2.5''*8''	18 1/4''	26 1/4''			24
WCL30-2510		2.5''*10''	20 1/4''	30 1/4''			25
WCL30-2512		2.5''*12''	22 1/4''	34 1/4''			27
WCL30-2514		2.5''*14''	24 1/4''	38 1/4''			29
WCL30-2516		2.5''*16''	26 1/4''	42 1/4''			32
WCL30-2518		2.5''*18''	28 1/4''	46 1/4''			34
WCL30-2520		2.5''*20''	30 1/4''	50 1/4''			36
WCL30-2524		2.5''*24''	34 1/4''	58 1/4''			40
WCL30-2528		2.5''*28''	38 1/4''	66 1/4''			45
WCL30-2530		2.5''*30''	40 1/4''	70 1/4''			47
WCL30-2532		2.5''*32''	42 1/4''	74 1/4''			49
WCL30-2534		2.5''*34''	44 1/4''	78 1/4''			52
WCL30-2536		2.5''*36''	46 1/4''	82 1/4''			54
WCL30-2540		2.5''*40''	50 1/4''	90 1/4''			58
WCL30-2548		2.5''*48''	58 1/4''	106 1/4''			67
WCL30-3004	1 1/2''	3''*4''	14 1/4''	18 1/4''	1/2NPT	1''	22
WCL30-3006		3''*6''	16 1/4''	22 1/4''			24
WCL30-3008		3''*8''	18 1/4''	26 1/4''			27
WCL30-3010		3''*10''	20 1/4''	30 1/4''			29
WCL30-3012		3''*12''	22 1/4''	34 1/4''			31
WCL30-3014		3''*14''	24 1/4''	38 1/4''			34
WCL30-3016		3''*16''	26 1/4''	42 1/4''			36
WCL30-3018		3''*18''	28 1/4''	46 1/4''			39
WCL30-3020		3''*20''	30 1/4''	50 1/4''			41
WCL30-3024		3''*24''	34 1/4''	58 1/4''			46
WCL30-3028		3''*28''	38 1/4''	66 1/4''			51
WCL30-3030		3''*30''	40 1/4''	70 1/4''			53
WCL30-3032		3''*32''	42 1/4''	74 1/4''			56
WCL30-3034		3''*34''	44 1/4''	78 1/4''			58
WCL30-3036		3''*36''	46 1/4''	82 1/4''			61
WCL30-3040		3''*40''	50 1/4''	90 1/4''			66
WCL30-3048		3''*48''	58 1/4''	106 1/4''			75
WCL30-3504	1 3/4''	3.5''*4''	14 1/4''	18 1/4''	1/2NPT	1''	27
WCL30-3506		3.5''*6''	16 1/4''	22 1/4''			30
WCL30-3508		3.5''*8''	18 1/4''	26 1/4''			35
WCL30-3510		3.5''*10''	20 1/4''	30 1/4''			36
WCL30-3512		3.5''*12''	22 1/4''	34 1/4''			39
WCL30-3514		3.5''*14''	24 1/4''	38 1/4''			42
WCL30-3516		3.5''*16''	26 1/4''	42 1/4''			46
WCL30-3518		3.5''*18''	28 1/4''	46 1/4''			49
WCL30-3520		3.5''*20''	30 1/4''	50 1/4''			52
WCL30-3524		3.5''*24''	34 1/4''	58 1/4''			58
WCL30-3528		3.5''*28''	38 1/4''	66 1/4''			64
WCL30-3530		3.5''*30''	40 1/4''	70 1/4''			67
WCL30-3532		3.5''*32''	42 1/4''	74 1/4''			70
WCL30-3534		3.5''*34''	44 1/4''	78 1/4''			73
WCL30-3536		3.5''*36''	46 1/4''	82 1/4''			76
WCL30-3540		3.5''*40''	50 1/4''	90 1/4''			82
WCL30-3548		3.5''*48''	58 1/4''	106 1/4''			94
WCL30-4004	2	4''*4''	14 1/4''	18 1/4''	1/2NPT	1''	33
WCL30-4006		4''*6''	16 1/4''	22 1/4''			37
WCL30-4008		4''*8''	18 1/4''	26 1/4''			42
WCL30-4010		4''*10''	20 1/4''	30 1/4''			44
WCL30-4012		4''*12''	22 1/4''	34 1/4''			48
WCL30-4014		4''*14''	24 1/4''	38 1/4''			52
WCL30-4016		4''*16''	26 1/4''	42 1/4''			55
WCL30-4018		4''*18''	28 1/4''	46 1/4''			59
WCL30-4020		4''*20''	30 1/4''	50 1/4''			63
WCL30-4024		4''*24''	34 1/4''	58 1/4''			70
WCL30-4028		4''*28''	38 1/4''	66 1/4''			77
WCL30-4030		4''*30''	40 1/4''	70 1/4''			81
WCL30-4032		4''*32''	42 1/4''	74 1/4''			85
WCL30-4034		4''*34''	44 1/4''	78 1/4''			89
WCL30-4036		4''*36''	46 1/4''	82 1/4''			92
WCL30-4040		4''*40''	50 1/4''	90 1/4''			100
WCL30-4048		4''*48''	58 1/4''	106 1/4''			114
WCL30-5004	2 1/2''	5''*4''	16 1/4''	20 1/4''	1/2NPT	1''	64
WCL30-5006		5''*6''	18 1/4''	24 1/4''			69
WCL30-5008		5''*8''	20 1/4''	28 1/4''			74
WCL30-5010		5''*10''	22 1/4''	32 1/4''			79
WCL30-5012		5''*12''	24 1/4''	36 1/4''			84
WCL30-5014		5''*14''	26 1/4''	40 1/4''			89
WCL30-5016		5''*16''	28 1/4''	44 1/4''			95
WCL30-5018		5''*18''	30 1/4''	48 1/4''			100
WCL30-5020		5''*20''	32 1/4''	52 1/4''			105
WCL30-5024		5''*24''	36 1/4''	60 1/4''			115
WCL30-5028		5''*28''	40 1/4''	68 1/4''			125
WCL30-5030		5''*30''	42 1/4''	72 1/4''			130
WCL30-5032		5''*32''	44 1/4''	76 1/4''			136
WCL30-5034		5''*34''	46 1/4''	80 1/4''			141
WCL30-5036		5''*36''	48 1/4''	84 1/4''			146
WCL30-5040		5''*40''	52 1/4''	92 1/4''			156
WCL30-5048		5''*48''	60 1/4''	108 1/4''			177
