Used for Hydraulic Cylinders Giho Hydraulic Rod Ends

Used for Hydraulic Cylinders Giho Hydraulic Rod Ends

Customization:	Available
Rolling Element:	Single Row
Structure:	Rod End

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

GIHO-K...DO

Material

Bearing Steel

Load Direction

Thrust Spherical Plain Bearing

Add Lubricant

Non Self-lubricating

Outer Structure

Whole Outer Ring

Rod End

Thickness

25mm

Model

GE

Application

Engineering Hydraulic Cylinder, Forging Machine, Construction Machinery

Warranty

12months

Price

Cheap

Transport Package

Polly Wood Case

Specification

1200*1000*1000

Trademark

GD

Origin

China

Production Capacity

500000

Packaging & Delivery

Package Size

20.00cm * 20.00cm * 5.00cm

Package Gross Weight

2.000kg

Product Description

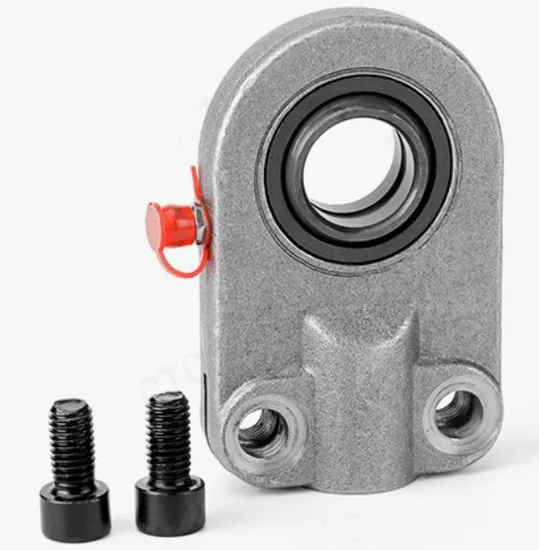

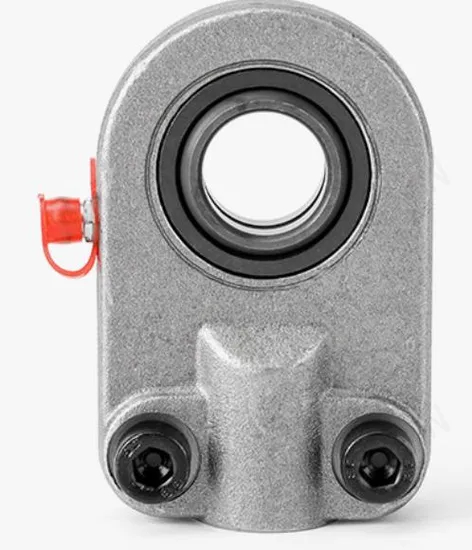

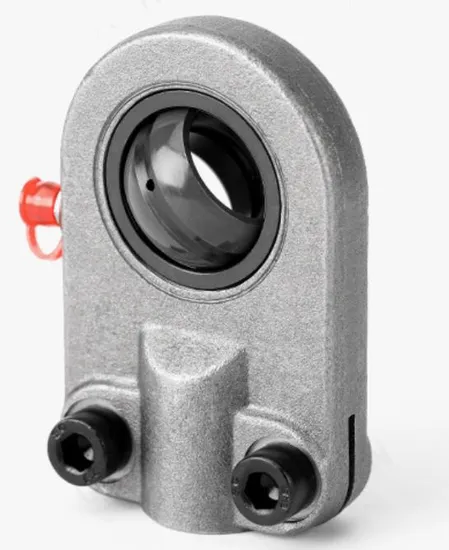

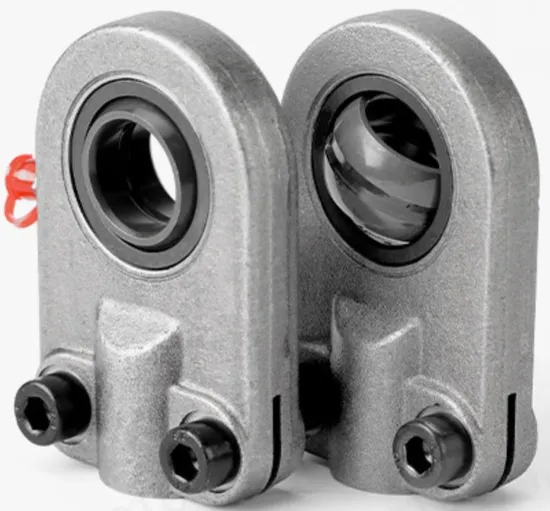

GIHO-K..DO series ROD ENDS MANUFACTURER

Rod body with right or left-hand male thread.It is made up of a radial spherical plain bearing GE..ES or GE..ES 2RS and rod end housing.With locaking slot and nut.Rod end housing with a lubricating hole or grease nipple

For left-hand thread.please add surffix "L",e.g.GIHO-KL 20 DO.
Used for Hydraulic Cylinders Giho Hydraulic Rod Ends

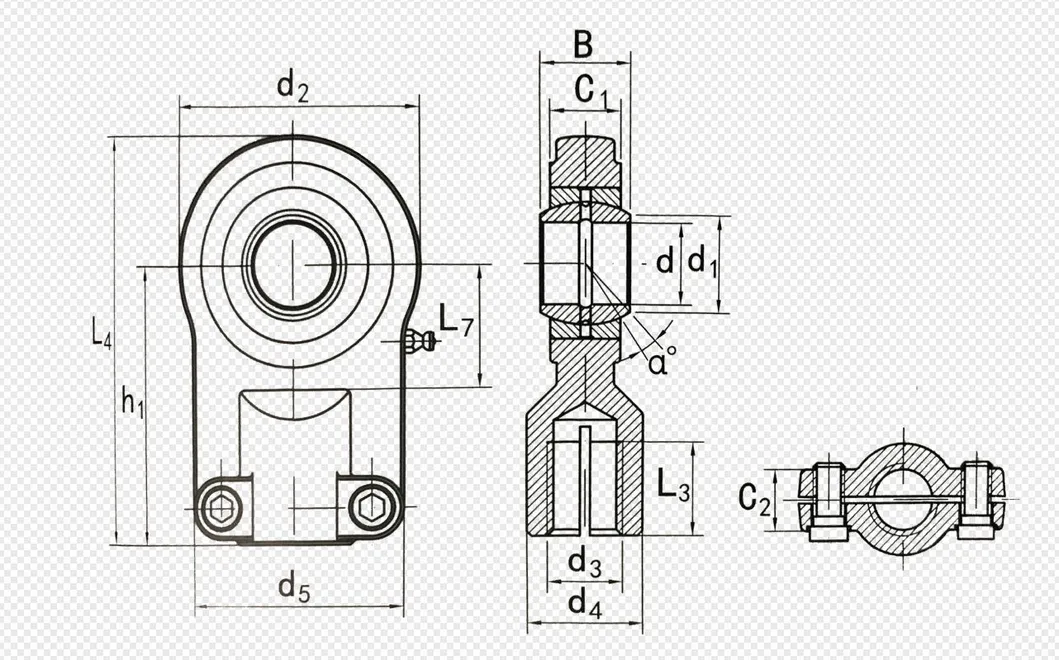

Model No.	Dimensions(mm)														Load ratings kN		Weight
	d Tolerances	B0	d1	C1	d2	d3	h1	L3	L4	C2	d4	d5	L7	a°	Load ratings kN/Dynamic	Load ratings kN/Static	≈kg
	d Tolerances	0.12	d1	max	max	6H	h1	min	max	C2	d4	d5	L7	≈	Load ratings kN/Dynamic	Load ratings kN/Static
GIHO-K12 DO*	12 -0.008	10	15	8	35	M10×1.25	42	15	59.5	13	17	40	16	11	10.8	17	0.12
GIHO-K16 DO	16 -0.008	14	20.7	11	45	M12×1.25	48	17	70.5	13	21	45	20	10	21.1	28.5	0.22
GIHO-K20 DO	20 -0.01	16	24.2	13	55	M14×1.5	58	19	85.5	17	25	55	25	9	30	42.5	0.43
GIHO-K25 DO	25 -0.01	20	29.3	17	65	M16×1.5	68	23	100.5	17	30	62	30	7	48	67	0.67
GIHO-K30 DO	30 -0.01	22	34.2	19	80	M20×1.5	85	29	125	19	36	77	35	6	62	108	1.25
GIHO-K40 DO	40 -0.012	28	45	23	100	M27×2.0	105	37	155	23	45	90	45	7	100	156	2.16
GIHO-K50 DO	50 -0.012	35	55.9	30	120	M33×2.0	130	46	190	30	55	105	58	6	156	245	3.9
GIHO-K60 DO	60 -0.015	44	66.8	38	160	M42×2.0	150	57	230	38	68	134	68	6	245	380	7.15
GIHO-K80 DO	80 -0.015	55	89.4	47	205	M48×2.0	185	64	287.5	47	90	156	82	6	400	585	15
GIHO-K100 DO	100 -0.015	70	109.5	55	240	M64×3.0	240	86	360	55	110	190	116	7	610	865	27.3

Housing	carbon steel, alloy steel
Without Connecting	GIHR..DO
With Locking Nuts	GIHR-K..DO,GIHN-K..LO,GIHO-K..DO,GK..SK
Welding Connecting	GK..DO,GF..DO,GF..LO,TS..NF

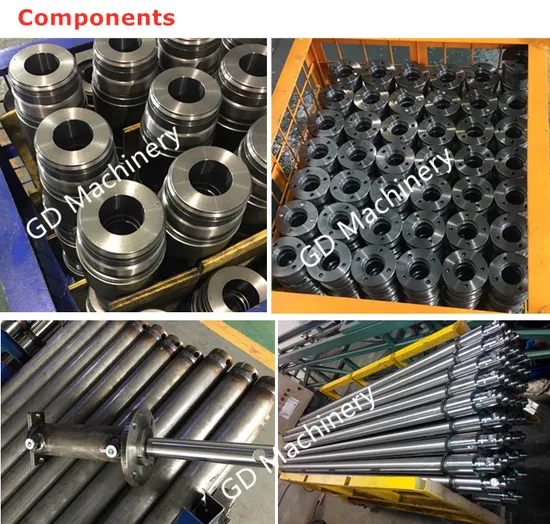

GD Machinery Co., Ltd. is a specialized manufacturer and trader with main products: hydraulic cylinders, hydraulic power units, hydraulic manifolds-blocks, hydraulic flanges,pneumatic cylinders and custom-made components and parts, like industrial valves.

Our sales markets have covered our sales markets have covered North America, Europe, Australia and Japan.

Qingdao GD Machinery CO.,LTD.
Product
tie rod hydraulic cylinder, welded hydraulic cylinder, telescopic cylinders cylinder, flange type hydraulic cylinder, hydraulic cylinder with valve function, hydraulic power unit, Hydraulic manifold block, pneumatic fitting,
Material	Tube - Cold Drawn Precision seamless Tubing End Caps - Steel, threaded fixed; Wear Ring - Nylon Backup Washer Rod Seals - Polyurethane U-Cap Rod - Chromed, ground & polished piston rod Mounts - Trunnion with angular Swivels Rod Wiper - Polyurethane
Application	Agriculture, Concrete & Asphalt, Cranes, Fire & Rescue Forestry & Logging,Mining & Rock Crushing,Oil & Gas Snow & Ice Control,Waste Management and Material Recycling Industry , Engineering Equipment, Special Vehicle
Feature	1.High quality with a reasonable price 2.ISO9001-2008 3.Customized specification are accepted
Payment	T/T;L/C,WESTERN UNION.
Port	Qingdao ,China
Quotation	According to the specific request
MOQ	According to the product
Packaging	metal case;plywood case;carton or as requirement
Delivery time	30days upon receipt of 30% deposit; or upon receipt of relevant L/C;
