| Customization: | Available |
|---|---|
| Rolling Element: | Single Row |
| Structure: | Rod End |
| Quantity: | |
|---|---|

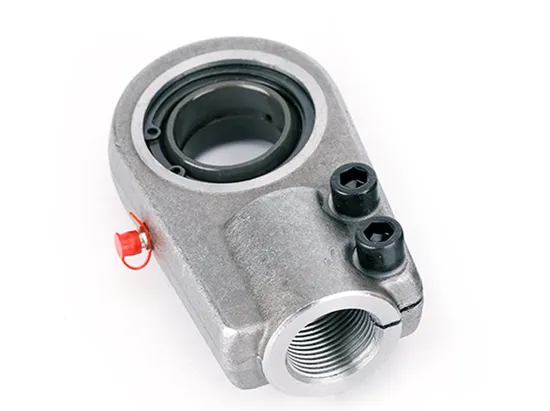

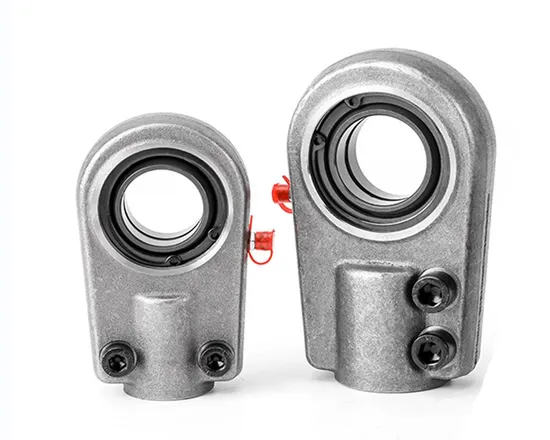

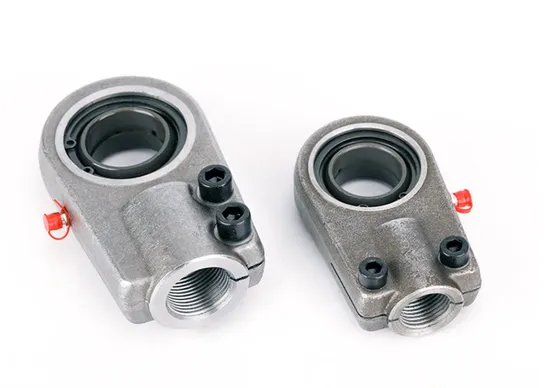

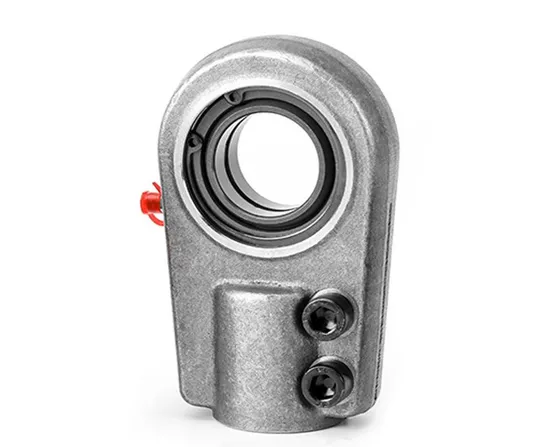

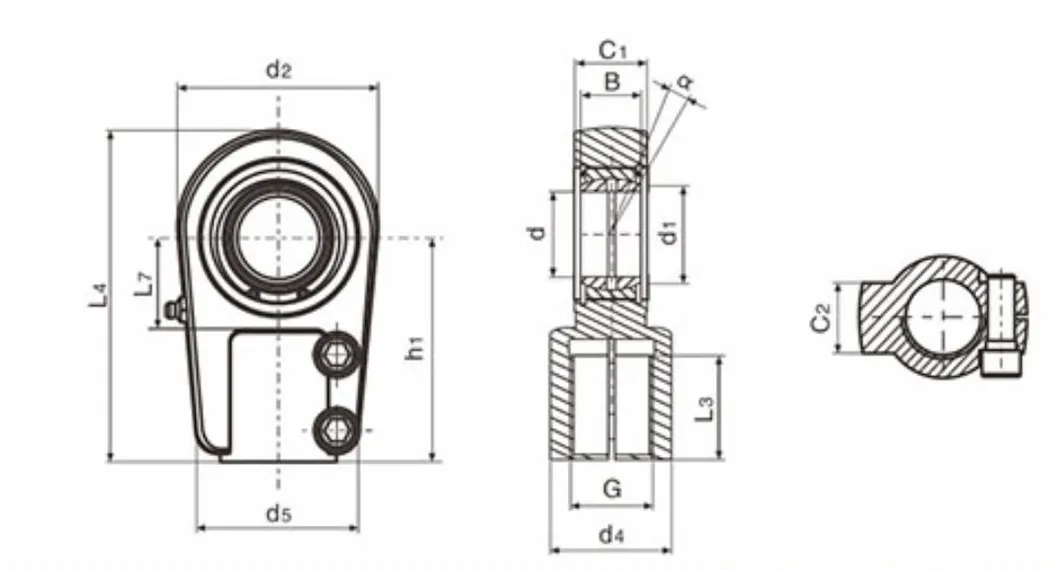

| Model No. | Dimensions(mm) | Load ratings kN | Weight | |||||||||||
| d | B | C1 | d2 | G | d4 | L7 | L3 | d5 | h1 | L4 | Load ratings kN/Dynamic | Load ratings kN/Static | ≈kg | |
| min | ||||||||||||||
| GAS20 | 20 | 16 | 23 | 56 | M18×2 | 28 | 25 | 30 | 48 | 65 | 95 | 48 | 82 | 0.42 |
| GAS25 | 25 | 20 | 23 | 56 | M18×2 | 28 | 25 | 30 | 48 | 65 | 95 | 63 | 82 | 0.57 |
| GAS30 | 30 | 22 | 28 | 64 | M24×2 | 34 | 30 | 35 | 56 | 75 | 109 | 82.7 | 122 | 0.91 |
| GAS35 | 35 | 25 | 30 | 78 | M30×2 | 45 | 40 | 40 | 66 | 90 | 132 | 107 | 177 | 1.9 |
| GAS40 | 40 | 28 | 35 | 94 | M39×3 | 56.5 | 45 | 48 | 78 | 105 | 155 | 135 | 287 | 3 |
| GAS50 | 50 | 35 | 40 | 116 | M50×3 | 70 | 55 | 66 | 89 | 135 | 198 | 210 | 422 | 4.9 |
| GAS60 | 60 | 44 | 50 | 130 | M64×3 | 87 | 65 | 84 | 118 | 170 | 240 | 234 | 522 | 7.5 |
| GAS70 | 70 | 49 | 55 | 154 | M80×3 | 110 | 75 | 110 | 128 | 195 | 278 | 431 | 707 | 11.5 |
| GAS80 | 80 | 55 | 60 | 176 | M90×3 | 128 | 80 | 120 | 156 | 210 | 305 | 554 | 870 | 16.5 |
| GAS90 | 90 | 60 | 65 | 210 | M100×3 | 152 | 90 | 140 | 168 | 250 | 365 | 671 | 1284 | 35.5 |
| GAS100 | 100 | 70 | 70 | 230 | M110×4 | 170 | 105 | 150 | 171 | 275 | 400 | 842 | 1460 | 43.5 |
| GAS110 | 110 | 70 | 80 | 264 | M120×4 | 180 | 115 | 160 | 189 | 300 | 442 | 910 | 2024 | 60.5 |
| GAS120 | 120 | 85 | 90 | 340 | M150×4 | 210 | 140 | 190 | 243 | 360 | 540 | 1336 | 2970 | 96.5 |
| GAS140 | 140 | 90 | 110 | 380 | M160×4 | 230 | 185 | 200 | 248 | 420 | 620 | 1665 | 3500 | 138 |
| GAS160 | 160 | 105 | 110 | 480 | M180×4 | 260 | 200 | 220 | 273 | 460 | 710 | 1935 | 4302 | 209 |
Housing | carbon steel, alloy steel |
| Without Connecting | GIHR..DO |
| With Locking Nuts | GIHR-K..DO,GIHN-K..LO,GIHO-K..DO,GK..SK |
| Welding Connecting | GK..DO,GF..DO,GF..LO,TS..NF |
• sliding contact surface: steel / steel
• housing:alloy steel
• requiring maintenance for welding
• inner ring
-bearing steel
-heat treated HRC 58-64
-phosphating
• outer ring
-bearing steel
-heat treated HRC 54-60
-phosphating
It is made up of a radial spherical plain bearing GE..E(S) or GE..ES 2RS,and rod body with weldable base.
-Requiring maintenance,for welding.
| Model No. | Dimensions(mm) | Load ratings kN | Weight | |||||||||||
| d | B | C1 | d2 | G | d4 | L7 | L3 | d5 | h1 | L4 | Load ratings kN/Dynamic | Load ratings kN/Static | ≈kg | |
| min | ||||||||||||||
| GAS20 | 20 | 16 | 23 | 56 | M18×2 | 28 | 25 | 30 | 48 | 65 | 95 | 48 | 82 | 0.42 |
| GAS25 | 25 | 20 | 23 | 56 | M18×2 | 28 | 25 | 30 | 48 | 65 | 95 | 63 | 82 | 0.57 |
| GAS30 | 30 | 22 | 28 | 64 | M24×2 | 34 | 30 | 35 | 56 | 75 | 109 | 82.7 | 122 | 0.91 |
| GAS35 | 35 | 25 | 30 | 78 | M30×2 | 45 | 40 | 40 | 66 | 90 | 132 | 107 | 177 | 1.9 |
| GAS40 | 40 | 28 | 35 | 94 | M39×3 | 56.5 | 45 | 48 | 78 | 105 | 155 | 135 | 287 | 3 |
| GAS50 | 50 | 35 | 40 | 116 | M50×3 | 70 | 55 | 66 | 89 | 135 | 198 | 210 | 422 | 4.9 |
| GAS60 | 60 | 44 | 50 | 130 | M64×3 | 87 | 65 | 84 | 118 | 170 | 240 | 234 | 522 | 7.5 |
| GAS70 | 70 | 49 | 55 | 154 | M80×3 | 110 | 75 | 110 | 128 | 195 | 278 | 431 | 707 | 11.5 |
| GAS80 | 80 | 55 | 60 | 176 | M90×3 | 128 | 80 | 120 | 156 | 210 | 305 | 554 | 870 | 16.5 |
| GAS90 | 90 | 60 | 65 | 210 | M100×3 | 152 | 90 | 140 | 168 | 250 | 365 | 671 | 1284 | 35.5 |
| GAS100 | 100 | 70 | 70 | 230 | M110×4 | 170 | 105 | 150 | 171 | 275 | 400 | 842 | 1460 | 43.5 |
| GAS110 | 110 | 70 | 80 | 264 | M120×4 | 180 | 115 | 160 | 189 | 300 | 442 | 910 | 2024 | 60.5 |
| GAS120 | 120 | 85 | 90 | 340 | M150×4 | 210 | 140 | 190 | 243 | 360 | 540 | 1336 | 2970 | 96.5 |
| GAS140 | 140 | 90 | 110 | 380 | M160×4 | 230 | 185 | 200 | 248 | 420 | 620 | 1665 | 3500 | 138 |
| GAS160 | 160 | 105 | 110 | 480 | M180×4 | 260 | 200 | 220 | 273 | 460 | 710 | 1935 | 4302 | 209 |
Housing | carbon steel, alloy steel |
| Without Connecting | GIHR..DO |
| With Locking Nuts | GIHR-K..DO,GIHN-K..LO,GIHO-K..DO,GK..SK |
| Welding Connecting | GK..DO,GF..DO,GF..LO,TS..NF |
• sliding contact surface: steel / steel
• housing:alloy steel
• requiring maintenance for welding
• inner ring
-bearing steel
-heat treated HRC 58-64
-phosphating
• outer ring
-bearing steel
-heat treated HRC 54-60
-phosphating
It is made up of a radial spherical plain bearing GE..E(S) or GE..ES 2RS,and rod body with weldable base.
-Requiring maintenance,for welding.
