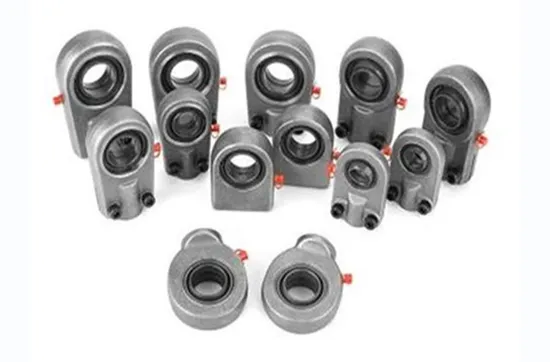

Gihn Rod Ends for Hydraulic Components

Customization: Available
Rolling Element: Single Row
Structure: Rod End
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Basic Info.

Model NO.
GIHN-K...LO
Material
Bearing Steel
Load Direction
Thrust Spherical Plain Bearing
Add Lubricant
Non Self-lubricating
Outer Structure
Whole Outer Ring
Rod End
Rod End
Thickness
25mm
Model
GE
Application
Engineering Hydraulic Cylinder, Forging Machine, Construction Machinery
Transport Package
Polly Wood Case
Specification
1200*1000*1000
Trademark
GD
Origin
China
Production Capacity
500000

Packaging & Delivery

Package Size
100.00cm * 20.00cm * 30.00cm
Package Gross Weight
35.000kg

Product Description



GIHN-K..LO ROD END MANUFACTURER

GIHN-K…LO
Sliding contact surfaces:Steel/Steel

Rod body with right or left-hand male thread.It is made up of a radial spherical plain bearing GEEW..ES and rod end housing.With locaking slot and nut.Rod end housing with a lubricating hole or grease nipple.

For left-hand thread.please add surffix "L",e.g.GIHN-KL 20 LO.

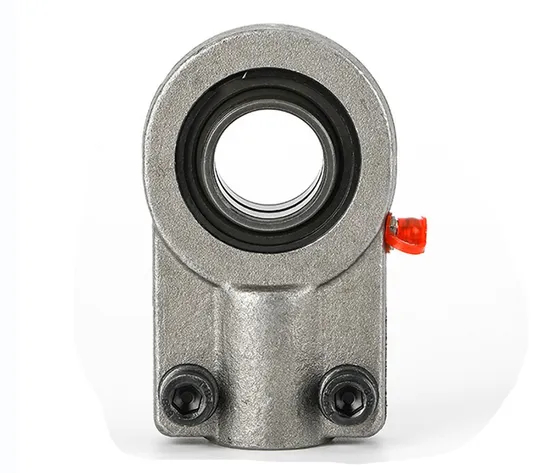

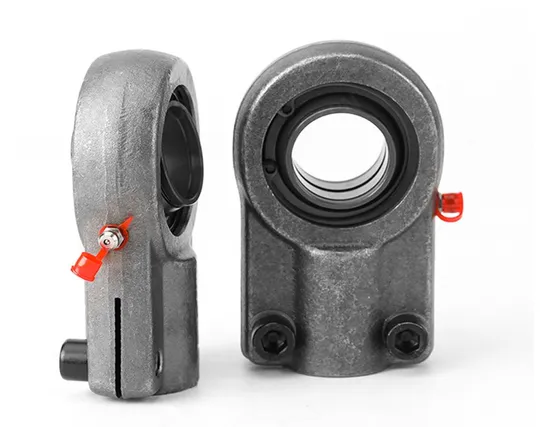

Gihn Rod Ends for Hydraulic Components

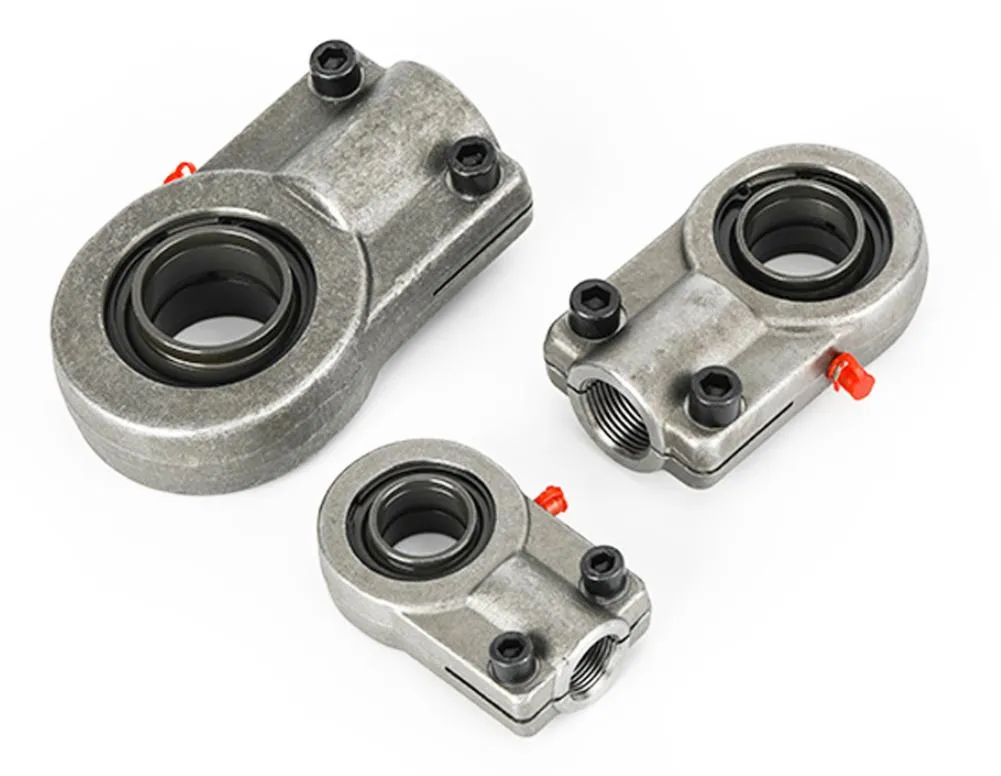

Gihn Rod Ends for Hydraulic Components

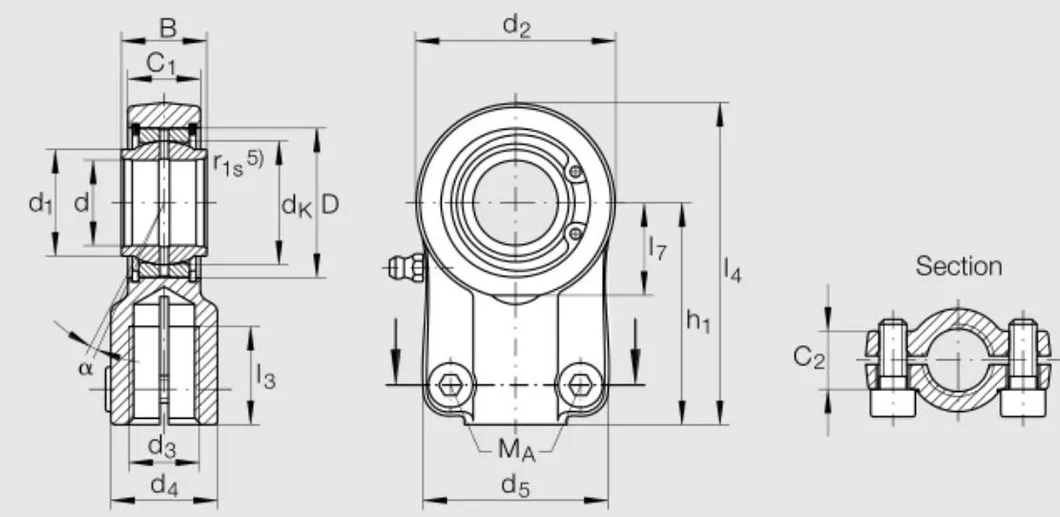

Model No. Dimensions(mm) Load ratings kN Weight
d B dk C1 d2 d3 h1 L3 L4 d4 d5 C2 rs a° Load ratings kN/Dynamic Load ratings kN/Static ≈kg
H7 ≈
GIHN-K12LO* 12 12 18 11 32 M12×1.25 38 17 54 16 32 15 0.3 450 10 15 0.11
GIHN-K16LO 16 16 23 14 40 M14×1.5 44 19 64 21 40 15 0.3 4 17 24 0.21
GIHN-K20LO 20 20 29 17 47 M16×1.5 52 23 77 25 47 19 0.3 4 30 36 0.4
GIHN-K25LO 25 25 35.5 22 58 M20×1.5 65 29 96 30 54 19 0.6 4 48 57 0.66
GIHN-K32LO 32 32 43 28 71 M27×2 80 37 118.5 38 66 22 0.6 4 65 81 1.2
GIHN-K40LO 40 40 53 33 90 M33×2 97 46 146 47 80 26 0.6 4 99 156 2.1
GIHN-K50LO 50 50 66 40 109 M42×2 120 57 179.5 58 96 32 0.6 4 156 250 4.5
GIHN-K63LO 63 63 83 53 136 M48×2 140 64 211 70 114 38 1 4 253 343 7.6
GIHN-K70LO 70 70 92 57 155 M56×2 160 76 245 80 135 42 1 4 315 540 9.5
GIHN-K80LO 80 80 105 67 170 M64×3 180 86 270 90 148 48 1 4 400 560 14
GIHN-K90LO 90 90 115 72 185 M72×3 195 91 296 100 160 52 1 4 490 750 17
GIHN-K100LO 100 100 130 85 211 M80×3 210 96 322 110 178 62 1 4 607 960 28
GIHN-K110LO 110 110 140 88 235 M90×3 235 106 364 125 190 62 1 4 655 1200 32
GIHN-K125LO 125 125 160 103 265 M100×3 260 113 405 135 200 72 1 4 950 1430 46
GIHN-K16OLO 160 160 200 130 326 M125×4 310 126 488 165 250 82 1 4 1370 2200 82.5
GIHN-K2OOLO 200 200 250 162 418 M160×4 390 161 620 215 320 102 1 4 2120 3650 168
GIHN-K250LO 250 250 350 192 580 M200×4 530 205 847 300 420 142 1 4 3550 6400 425
GIHN-K320LO 320 320 450 260 700 M250×6 640 260 1015 360 520 170 1 4 6100 8650 790

Housing 		carbon steel, alloy steel
Without Connecting GIHR..DO
With Locking Nuts GIHR-K..DO,GIHN-K..LO,GIHO-K..DO,GK..SK
Welding Connecting GK..DO,GF..DO,GF..LO,TS..NF
