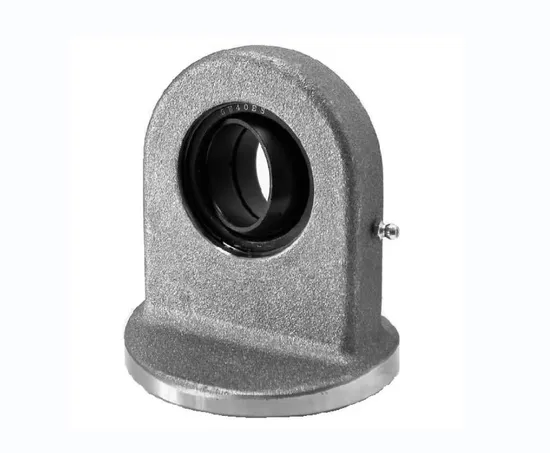

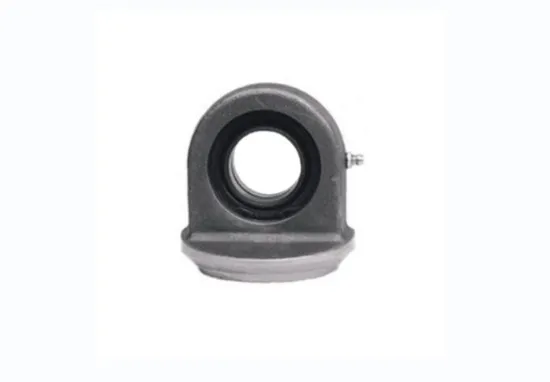

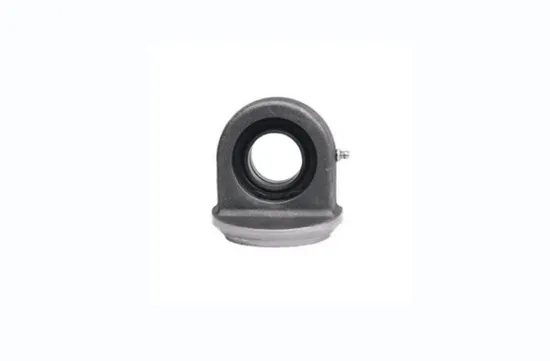

Ts...NF Series Rod Ends for Hydraulic Components

Ts...NF Series Rod Ends for Hydraulic Components

Customization:	Available
Rolling Element:	Single Row
Structure:	Rod End

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

TS...NF

Material

Bearing Steel

Load Direction

Radial Spherical Plain Bearing

Add Lubricant

Non Self-lubricating

Outer Structure

Whole Outer Ring

Rod End

Thickness

25mm

Model

GE

Application

Engineering Hydraulic Cylinder, Forging Machine, Construction Machinery

Warranty

12 Months

Steel

Bearing Steel

Price

Low

Replacement

Yes

Transport Package

Polly Wood Case

Specification

1200*1000*1000

Trademark

GD

Origin

China

Production Capacity

500000

Packaging & Delivery

Package Size

20.00cm * 20.00cm * 5.00cm

Package Gross Weight

3.000kg

Product Description

TS..NF SERIES ROD ENDS FOR HYDRAULIC COMPONENTS

Features

• sliding contact surface: steel / steel

• housing:alloy steel

• requiring maintenance for welding

• inner ring

-bearing steel

-heat treated HRC 58-64

-phosphating

• outer ring

-bearing steel

-heat treated HRC 54-60

-phosphating

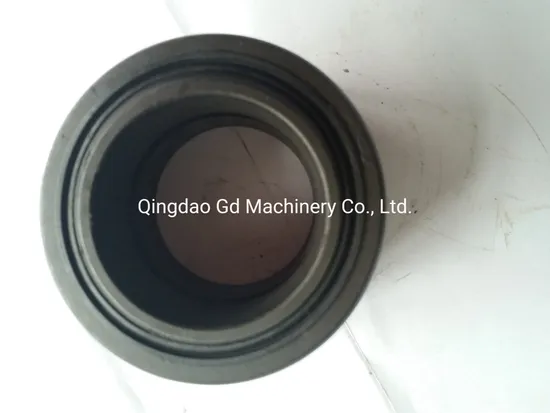

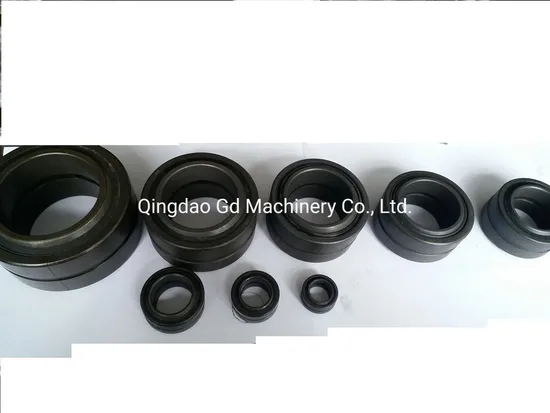

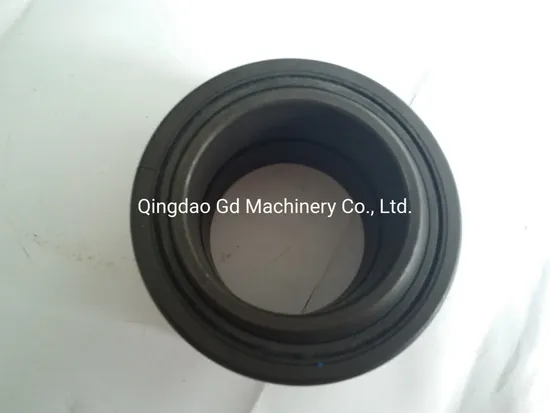

It is made up of a radial spherical plain bearing GE..E(S) or GE..ES 2RS,and rod body with weldable base.
-Requiring maintenance,for welding.

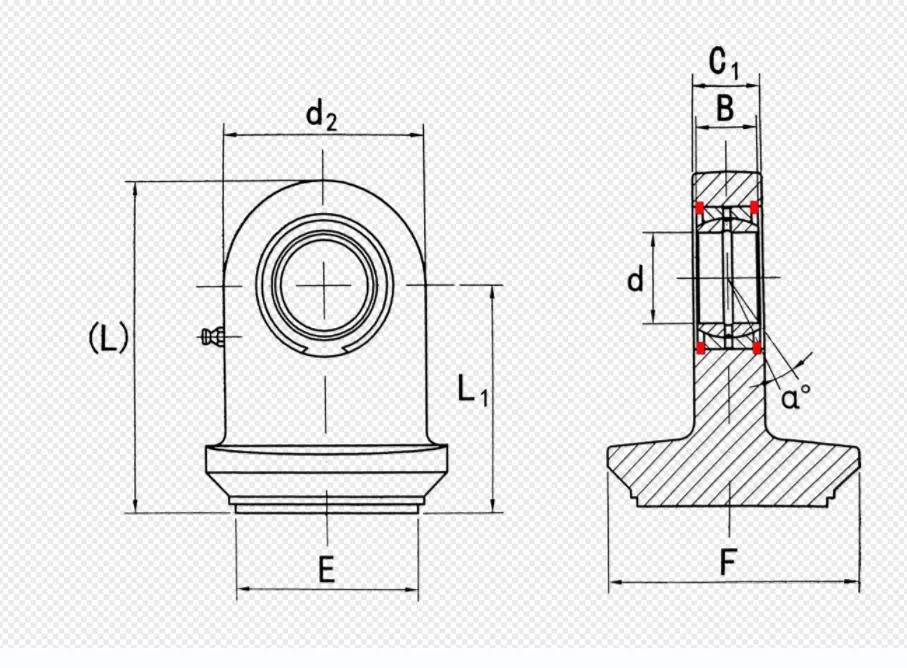

Part No.	Dimensions (mm)									Bearings
	d	B	C1	L1	d2	(L)	E	F	α
	d	B	C1	L1	d2	(L)	E	F	≈
TS 20 NF 35	20	16	19	48.5	50	73.5	35	45	9	GE 20 ES
TS 20 NF 40	20	16	19	48.5	50	73.5	40	50	9	GE 20 ES
TS 20 NF 45	20	16	19	48.5	50	73.5	45	55	9	GE 20 ES
TS 25 NF 50	25	20	23	57.5	55	85	50	60	7	GE 25 ES
TS 25 NF 55	25	20	23	57.5	55	85	55	65	7	GE 25 ES
TS 30 NF 60	30	22	28	63.5	65	96	60	70	6	GE 30 ES
TS 30 NF 63	30	22	28	63.5	65	96	63	73	6	GE 30 ES
TS 30 NF 65	30	22	28	63.5	65	96	65	75	6	GE 30 ES
TS 35 NF 70	35	25	30	73.5	83	115	70	80	6	GE 35 ES
TS 35 NF 75	35	25	30	73.5	83	115	75	90	6	GE 35 ES
TS 35 NF 80	35	25	30	73.5	83	115	80	95	6	GE 35 ES
TS 35 NF 80-1	35	25	30	73.5	83	115	80	90	6	GE 35 ES
TS 40 NF 80	40	28	35	84.5	100	134.5	80	95	7	GE 40 ES
TS 40 NF 85	40	28	35	84.5	100	134.5	85	100	7	GE 40 ES
TS 40 NF 90	40	28	35	84.5	100	134.5	90	105	7	GE 40 ES
TS 40 NF 100	40	28	35	84.5	100	134.5	100	115	7	GE 40 ES
TS 50 NF 110	50	35	40	106.5	123	168	110	130	6	GE 50 ES
TS 50 NF 120	50	35	40	106.5	123	168	120	140	6	GE 50 ES
TS 50 NF 125	50	35	40	106.5	123	168	125	145	6	GE 50 ES

Housing	carbon steel, alloy steel
Without Connecting	GIHR..DO
With Locking Nuts	GIHR-K..DO,GIHN-K..LO,GIHO-K..DO,GK..SK
Welding Connecting	GK..DO,GF..DO,GF..LO,TS..NF
