Gk...Do Series OEM/ODM Rod Ends for Hydraulic Components

Customization: Available
Rolling Element: Single Row
Structure: Rod End
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Basic Info.

Model NO.
Hydraulic Components
Material
Bearing Steel
Load Direction
Radial Spherical Plain Bearing
Add Lubricant
Non Self-lubricating
Outer Structure
Whole Outer Ring
Rod End
Rod End
Thickness
25mm
Model
GE
Application
Engineering Hydraulic Cylinder, Forging Machine, Construction Machinery
Warranty
12 Months
Bearing
Gez-Es2RS
Customer
Us EU
Welded
Yes
Transport Package
Polly Wood Case
Specification
1200*1000*1000
Trademark
GD
Origin
China
Production Capacity
500000

Packaging & Delivery

Package Size
20.00cm * 20.00cm * 5.00cm
Package Gross Weight
3.000kg

Product Description

GK..DO SERIES OEM/ODM ROD ENDS FOR HYDRAULIC COMPONENTS

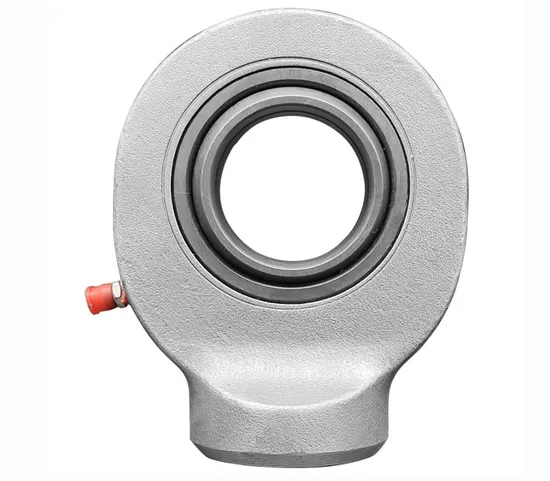

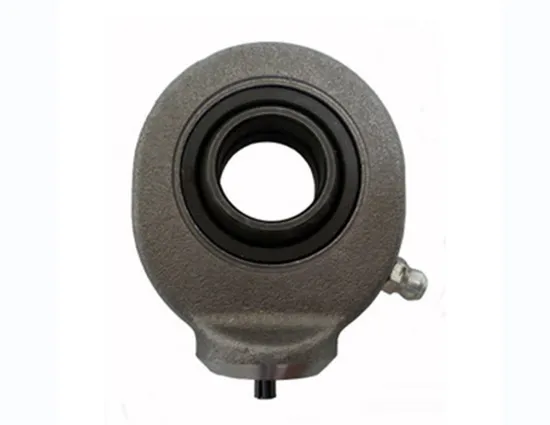

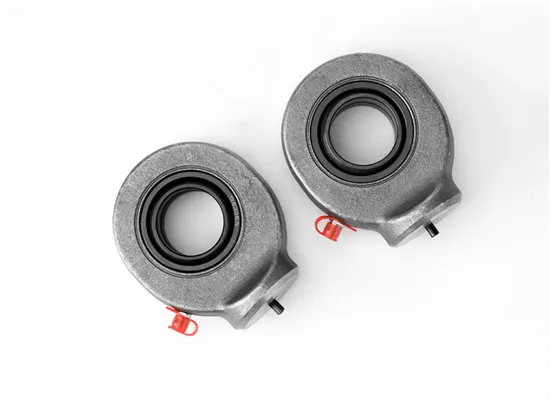

Rod end housing with weldable base and bowle pin.It is made up of a radial shpherical plain bearing GE..ES or GE..ES 2RS and rod end housing.Rod end housing with a lubricating hole or grease nipple.

Sealed design also available,e.g.GF 20 DO 2RS.
Gk...Do Series OEM/ODM Rod Ends for Hydraulic Components

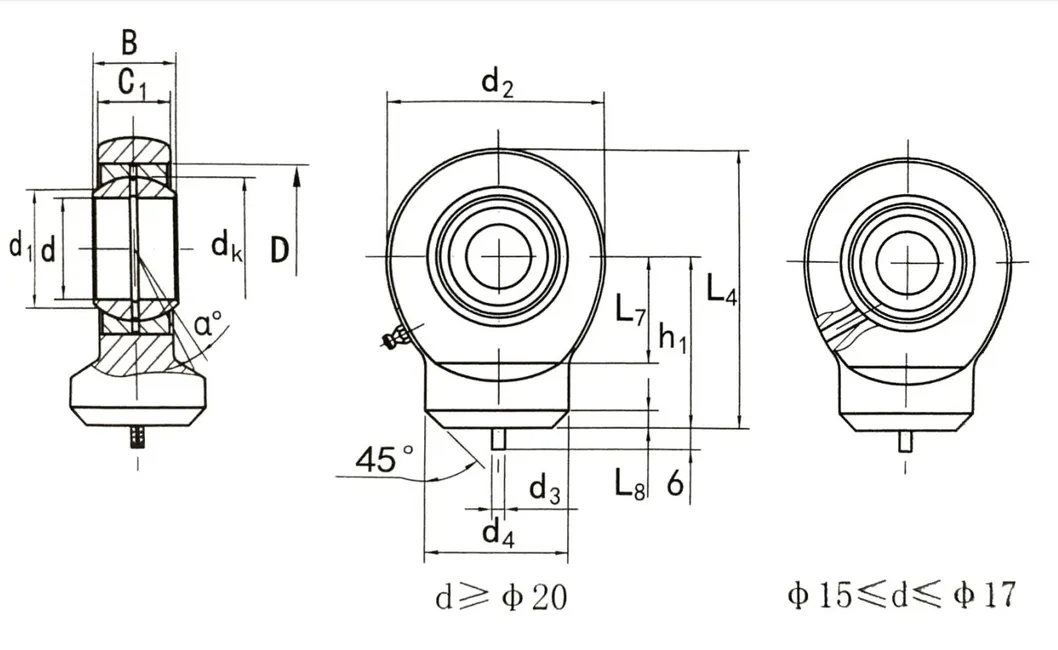

Model No. Dimensions(mm) Load ratings kN Weight
d B dk C1 d2 h2 L4 d4 d3 L8 rs a° Load ratings kN/Dynamic Load ratings kN/Static ≈kg
max min ≈
GK10DO 10 9 16 7 29 24 38.5 15 3 1.5 0.3 12 8.1 15 0.041
GK12DO1) 12 10 18 8 34 27 44 17.5 3 1.5 0.3 10 10 21 0.066
GK15DO 15 12 22 10 40 31 51 21 4 2 0.3 8 16 32 0.12
GK17DO 17 14 25 11 46 35 58 24 4 2 0.3 10 21 40 0.19
GK20DO 20 16 29 13 53 38 64.5 27.5 4 2 0.3 9 30 54 0.23
GK25DO 25 20 35.5 17 64 45 77 33.5 4 3 0.6 7 48 72 0.43
GK30DO 30 22 40.7 19 73 51 87.5 40 4 3 0.6 6 62 95 0.64
GK35DO 35 25 47 21 82 61 102 47 4 3 0.6 6 79 125 0.96
GK40DO 40 28 53 23 92 69 115 52 4 4 0.6 7 99 156 1.3
GK45DO 45 32 60 27 102 77 128 58 6 4 0.6 7 127 208 1.8
GK50DO 50 35 66 30 112 88 144 62 6 4 0.6 6 156 250 2.5
GK60DO 60 44 80 38 135 100 167.5 70 6 4.5 1 6 245 390 3.9
GK70DO 70 49 92 42 160 115 195 80 6 6 1 6 313 510 6.6
GK80DO 80 55 105 47 180 141 231 95 6 6 1 6 400 620 8.7

Housing 		carbon steel, alloy steel
Without Connecting GIHR..DO
With Locking Nuts GIHR-K..DO,GIHN-K..LO,GIHO-K..DO,GK..SK
Welding Connecting GK..DO,GF..DO,GF..LO,TS..NF
