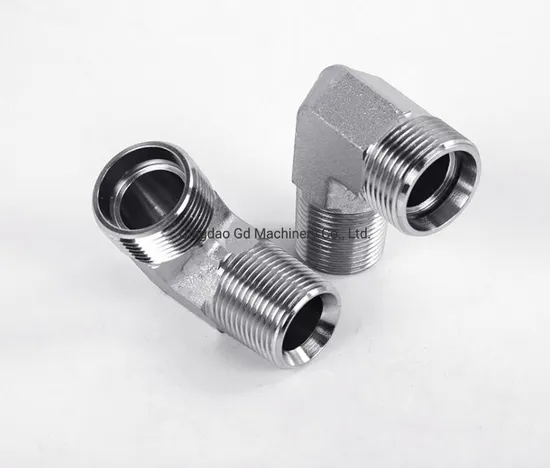

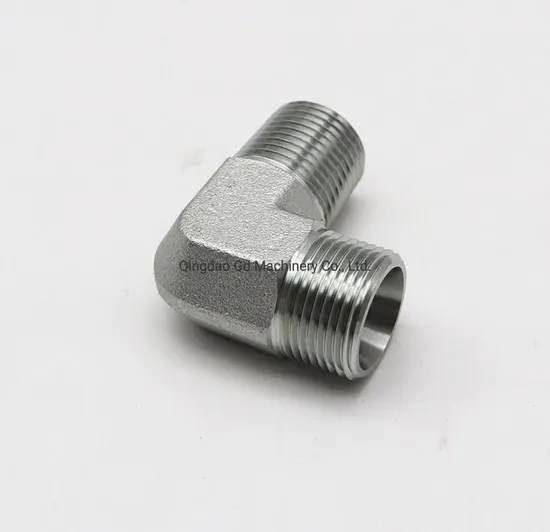

90 Elbow BSPT Male Fitting

Customization:	Available
Certification:	GS, RoHS, CE, ISO9001
Pressure:	Low Pressure

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

GD1CT9

Work Temperature

Normal Temperature

Thread Type

Internal Thread

Installation

Flared Type

Material

Carbon Steel

Type

Cut Through

Transport Package

Exporting Standard

Specification

1200*1000*1000mm

Trademark

GD

Origin

China

Production Capacity

500000/Month

Packaging & Delivery

Package Size

20.00cm * 20.00cm * 5.00cm

Package Gross Weight

3.000kg

Product Description

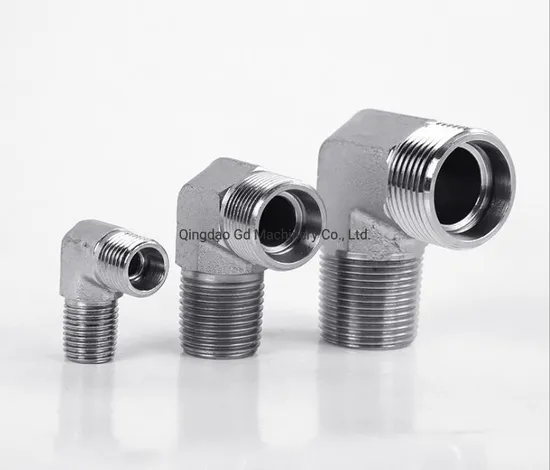

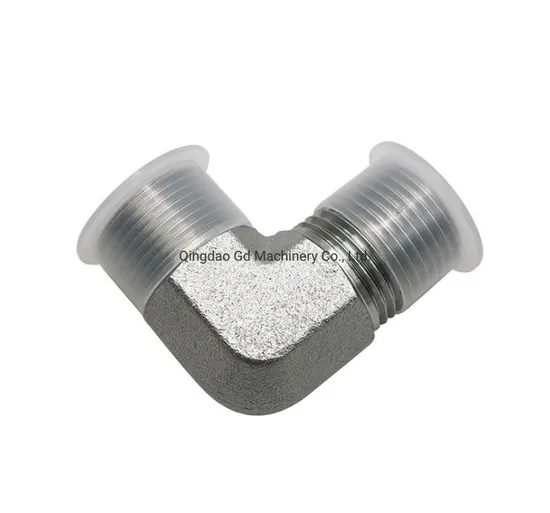

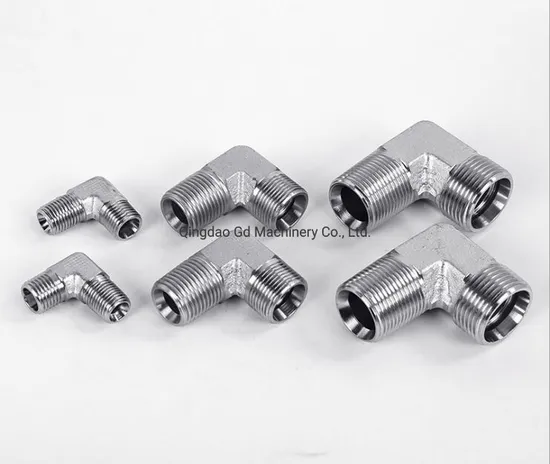

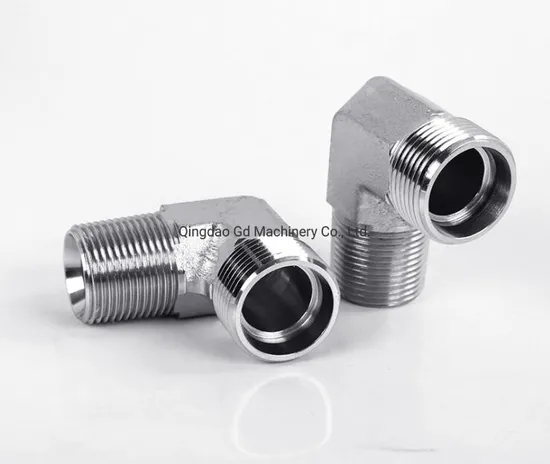

Cabon steel 90 elbow bspt male fittings

Cabon steel Metric thread coupling with seal

Carbon steel DIN 24 CONE SLEEVE TYPE STRAIGHT ADAPTORS

Straight coupling

hydraulic adaptors
Material: Carbon steel/SS
Equipment: CNC lathe
Surface treatment: Zinc Plated

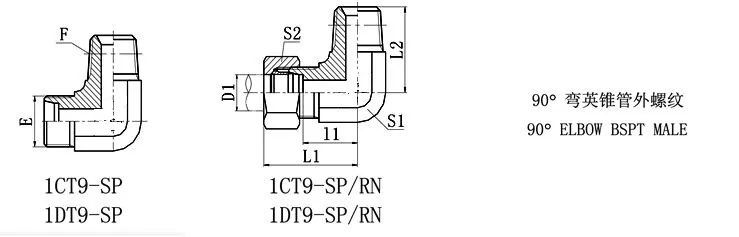

PART NO.	THREAD		TUBE O.D.	DIMENSIONS					MPa
PART NO.	E	F	D1	l1	L1	L2	S1	S2	MPa
1CT9-12-02SP	M12X1.5	R1/8"X28	6	13	28	21	11	14	25 L
1CT9-12-04SP	M12X1.5	R1/4"X19	6	15.5	30.5	25.5	14	14
1CT9-14-02SP	M14X1.5	R1/8"X28	8	15.5	30.5	23.5	14	17
1CT9-14-04SP	M14X1.5	R1/4"X19	8	15.5	30.5	25.5	14	17
1CT9-16-04SP	M16X1.5	R1/4"X19	10	17.5	32.5	26.5	16	19
1CT9-16-06SP	M16X1.5	R3/8"X19	10	17.5	32.5	28.5	16	19
1CT9-16-08SP	M16X1.5	R1/2"X14	10	21	36	36	22	19
1CT9-18-04SP	M18X1.5	R1/4"X19	12	21	34	28	19	22
1CT9-18-06SP	M18X1.5	R3/8"X19	12	19	34	30.5	19	22
1CT9-18-08SP	M18X1.5	R1/2"X14	12	21	36	36	22	22
1CT9-22-06SP	M22X1.5	R3/8"X19	15	22	37	32.5	22	27
1CT9-22-08SP	M22X1.5	R1/2"X14	15	22	37	36	22	27
1CT9-22-12SP	M22X1.5	R3/4"X14	15	25.5	40.5	43.5	27	27
1CT9-26-08SP	M26X1.5	R1/2"X14	18	25.5	42	39.5	27	32	16 L
1CT9-26-12SP	M26X1.5	R3/4"X14	18	25.5	42	43.5	27	32
1CT9-30-12SP	M30X2	R3/4"X14	22	29.5	45.8	45.3	30	36
1CT9-30-16SP	M30X2	R1"X11	22	31.5	48	50	33	36
1CT9-36-16SP	M36X2	R1"X11	28	33.3	49.8	52	36	41
1CT9-36-20SP	M36X2	R1.1/4"X11	28	36.2	52.7	57	41	41
1CT9-45-20SP	M45X2	R1.1/4"X11	35	39.2	60.7	61	48	50
1CT9-52-24SP	M52X2	R1.1/2"X11	42	44.8	67.8	68	55	60
1DT9-14-04SP	M14X1.5	R1/4"X19	6	17.5	32.5	25.5	14	17	40 S
1DT9-16-04SP	M16X1.5	R1/4"X19	8	18.7	33.7	26.5	16	19
1DT9-18-06SP	M18X1.5	R3/8"X19	10	19.5	36	30.5	19	22
1DT9-20-04SP	M20X1.5	R1/4"X19	12	19.5	36	28	19	24
1DT9-20-06SP	M20X1.5	R3/8"X19	12	19.5	36	30.5	19	24
1DT9-22-06SP	M22X1.5	R3/8"X19	14	23	41	32.5	22	27
1DT9-22-08SP	M22X1.5	R1/2"X14	14	23	41	36	22	27
1DT9-24-06SP	M24X1.5	R3/8"X19	16	24	42.5	33.5	24	30
1DT9-24-08SP	M24X1.5	R1/2"X14	16	24	42.5	37.3	24	30
1DT9-30-08SP	M30X2	R1/2"X14	20	28.3	49.8	41	30	36	25 S
1DT9-30-12SP	M30X2	R3/4"X14	20	28.3	49.8	45.3	30	36
1DT9-36-12SP	M36X2	R3/4"X14	25	33.3	57.3	52	36	46
1DT9-36-16SP	M36X2	R1"X11	25	32.8	56.8	52.5	36	46
1DT9-42-16SP	M42X2	R1"X11	30	36.2	62.7	56.5	41	50
1DT9-42-20SP	M42X2	R1.1/4"X11	30	36.2	62.7	57	41	50
1DT9-52-20SP	M52X2	R1.1/4"X11	38	45.8	76.8	67	55	60
1DT9-52-24SP	M52X2	R1.1/2"X11	38	45.8	76.8	68	55	60
GD Note:In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.,for example 1CT9-22-08SP/RN.
