Fs6801 SAE O-Ring Face Seal Orfs Male Boss Orb 90 Elbow

Fs6801 SAE O-Ring Face Seal Orfs Male Boss Orb 90 Elbow

Customization:	Available
Standard:	DIN, JIS, SAE
Material:	Low Carbon Steel

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

6801

Connection

Female

Surface Treatment

White or Yellow Zinc

Head Type

Round

Thread

DIN, ANSI, GB, JIS, Bsw

Warranty

12months

Other Material

Ss

Surface

Zinc Plated

Transport Package

Plastic Bag+Carton Box+Poly Wood Box

Specification

1/4"-2"

Trademark

GD

Origin

China

Packaging & Delivery

Package Size

20.00cm * 20.00cm * 5.00cm

Package Gross Weight

3.000kg

Product Description

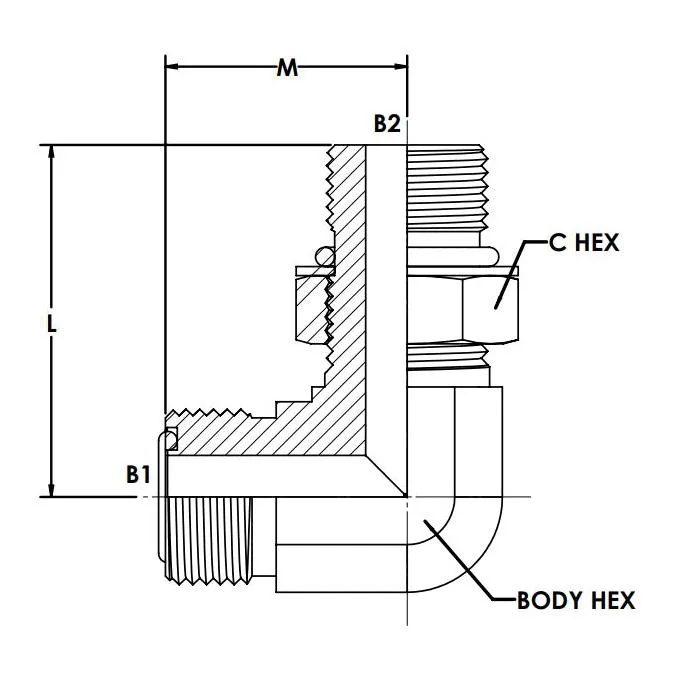

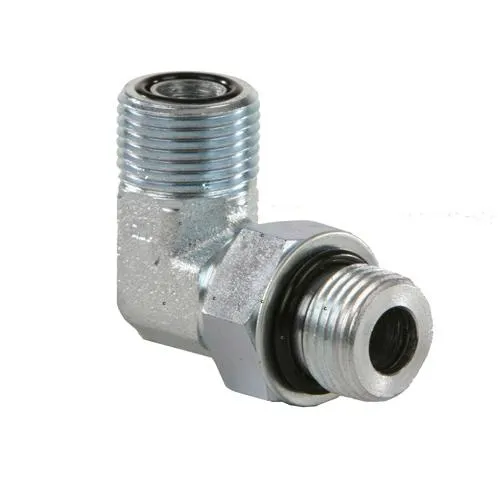

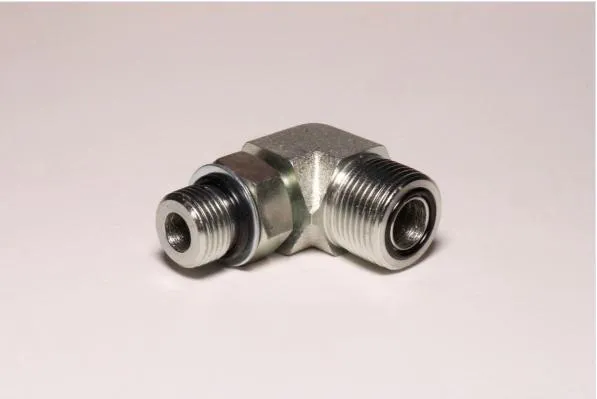

FS6801 -SAE O-Ring Face Seal ORFS Male x SAE O-Ring Boss ORB Male 90° Elbow
Fs6801 SAE O-Ring Face Seal Orfs Male Boss Orb 90 Elbow

TEM#	ITEM NAME
FS6801-04-04	FS6801-04-04 - 90° Elbow, 1/4" ORFS x 1/4" ORB Male (Straight Thread)
FS6801-04-06	FS6801-04-06 - 90° Elbow, 1/4" ORFS x 3/8" ORB Male (#6 Straight Thread)
FS6801-04-08	FS6801-04-08 - 90° Elbow, 1/4" ORFS x 1/2" ORB Male (#8 Straight Thread)
FS6801-06-04	FS6801-06-04 - 90° Elbow, 3/8" ORFS x 1/4" ORB Male (Straight Thread)
FS6801-06-06	FS6801-06-06 - 90° Elbow, 3/8" ORFS x 3/8" ORB Male (#6 Straight Thread)
FS6801-06-08	FS6801-06-08 - 90° Elbow, 3/8" ORFS x 1/2" ORB Male (#8 Straight Thread)
FS6801-06-10	FS6801-06-10 - 90° Elbow, 3/8" ORFS x 5/8" ORB Male (#10 Straight Thread)
FS6801-06-12	FS6801-06-12 - 90° Elbow, 3/8" ORFS x 3/4" ORB Male (#12 Straight Thread)
FS6801-06-16	FS6801-06-16 - 90° Elbow, 3/8" ORFS x 1" ORB Male (#16 Straight Thread)
FS6801-08-06	FS6801-08-06 - 90° Elbow, 1/2" ORFS x 3/8" ORB Male (#6 Straight Thread)
FS6801-08-08	FS6801-08-08 - 90° Elbow, 1/2" ORFS x 1/2" ORB Male (#8 Straight Thread)
FS6801-08-10	FS6801-08-10 - 90° Elbow, 1/2" ORFS x 5/8" ORB Male (#10 Straight Thread)
FS6801-08-12	FS6801-08-12 - 90° Elbow, 1/2" ORFS x 3/4" ORB Male (#12 Straight Thread)
FS6801-10-08	FS6801-10-08 - 90° Elbow, 5/8" ORFS x 1/2" ORB Male (#8 Straight Thread)
FS6801-10-10	FS6801-10-10 - 90° Elbow, 5/8" ORFS x 5/8" ORB Male (#10 Straight Thread)
FS6801-10-12	FS6801-10-12 - 90° Elbow, 5/8" ORFS x 3/4" ORB Male (#12 Straight Thread)
FS6801-12-08	FS6801-12-08 - 90° Elbow, 3/4" ORFS x 1/2" ORB Male (#8 Straight Thread)
FS6801-12-10	FS6801-12-10 - 90° Elbow, 3/4" ORFS x 5/8" ORB Male (#10 Straight Thread)
FS6801-12-12	FS6801-12-12 - 90° Elbow, 3/4" ORFS x 3/4" ORB Male (#12 Straight Thread)
FS6801-12-16	FS6801-12-16 - 90° Elbow, 3/4" ORFS x 1" ORB Male (#16 Straight Thread)
FS6801-16-12	FS6801-16-12 - 90° Elbow, 1" ORFS x 3/4" ORB Male (#12 Straight Thread)
FS6801-16-16	FS6801-16-16 - 90° Elbow, 1" ORFS x 1" ORB Male (#16 Straight Thread)
FS6801-16-20	FS6801-16-20 - 90° Elbow, 1" ORFS x 1 1/4" ORB Male (#20 Straight Thread)
FS6801-20-16	FS6801-20-16 - 90° Elbow, 1-1/4" ORFS x 1" ORB Male (#16 Straight Thread)
FS6801-20-20	FS6801-20-20 - 90° Elbow, 1-1/4" ORFS x 1 1/4" ORB Male (#20 Straight Thread)
FS6801-24-24	FS6801-24-24 - 90° Elbow, 1-1/2" ORFS x 1 1/2" ORB Male (#24 Straight Thread)
