| Customization: | Available |
|---|---|
| Certification: | GS, RoHS, CE, ISO9001 |
| Pressure: | Low Pressure |
| Quantity: | |
|---|---|
| Fitting Type | Female, Male Fitting, Banjo Fitting, Bolt and Nuts, Welding Fitting, Special Fitting, Brake Adapter |
| Thread Measure | M10x1,M10x1.25,M11x1.25M12x1,M12x1.25,M20x1.25... 1/8NPT,1/2NPT,1/8x28BSPP,1/4x19 BSPP,1/2x14 BSPP,3/8x19 BSPP... G1/8,1/8BSPT... 3/8x24,7/16x20,7/16x24,3/8x19 Make OEM fittings as per drawing |
| Fitting Angle | 0,10,15,20,25,30,35,40,45,50,55,60,70,90 |
| Fitting Material | Steel, Stainless, Steel, Brass, Al |
| Surface treatment | Yellow zinc,White zinc,Green zinc,Nickel,Chrome,Zn-Ni Alloy |

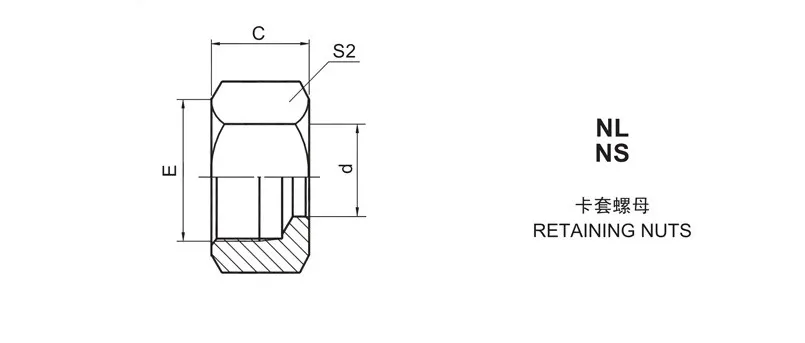

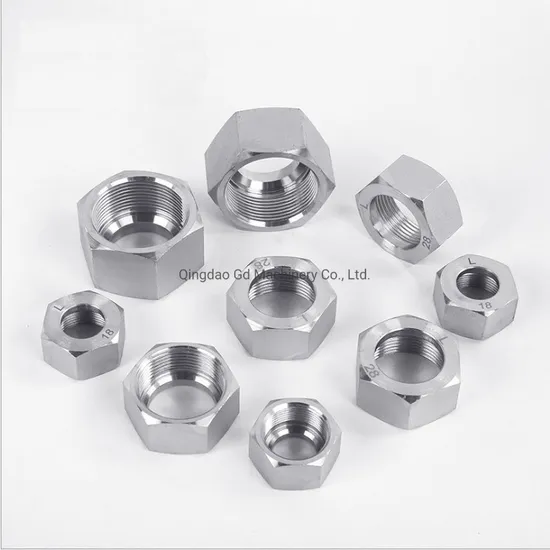

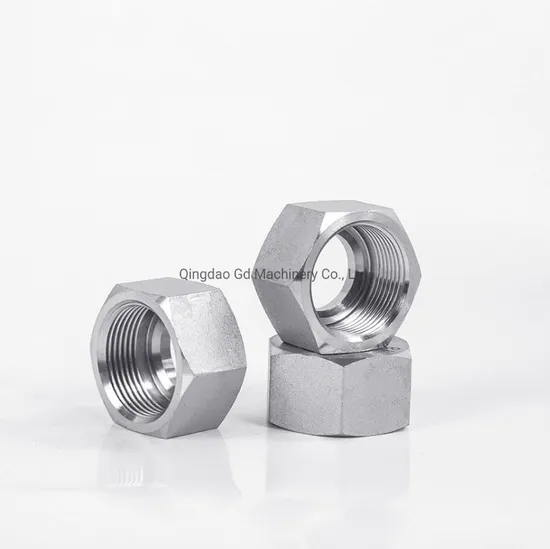

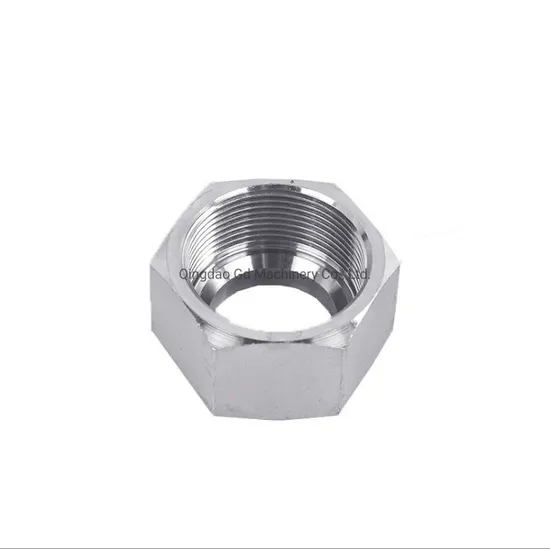

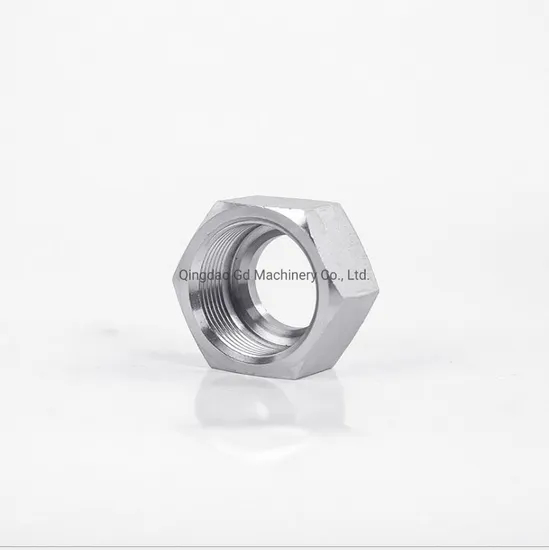

| PART NO. | THREAD | TUBE O.D. | DIMENSIONS | MPa | ||
| E | C | d | S2 | |||
| NL-12 | M12X1.5 | 6 | 14.5 | 6 | 14 | L |
| NL-14 | M14X1.5 | 8 | 14.5 | 8 | 17 | |
| NL-16 | M16X1.5 | 10 | 15.5 | 10 | 19 | |
| NL-18 | M18X1.5 | 12 | 15.5 | 12 | 22 | |
| NL-22 | M22X1.5 | 15 | 17 | 15 | 27 | |
| NL-26 | M26X1.5 | 18 | 18 | 18 | 32 | |
| NL-30 | M30X2 | 22 | 20 | 22 | 36 | |
| NL-36 | M36X2 | 28 | 21 | 28 | 41 | |
| NL-45 | M45X2 | 35 | 24 | 35 | 50 | |
| NL-52 | M52X2 | 42 | 24 | 42 | 60 | |
| NS-14 | M14X1.5 | 6 | 16.5 | 6 | 17 | S |
| NS-16 | M16X1.5 | 8 | 16.5 | 8 | 19 | |
| NS-18 | M18X1.5 | 10 | 17.5 | 10 | 22 | |
| NS-20 | M20X1.5 | 12 | 17.5 | 12 | 24 | |
| NS-22 | M22X1.5 | 14 | 20.5 | 14 | 27 | |
| NS-24 | M24X1.5 | 16 | 20.5 | 16 | 30 | |
| NS-30 | M30X2 | 20 | 24 | 20 | 36 | |
| NS-36 | M36X2 | 25 | 27 | 25 | 46 | |
| NS-42 | M42X2 | 30 | 29 | 30 | 50 | |
| NS-52 | M52X2 | 38 | 32.5 | 38 | 60 | |
| Fitting Type | Female, Male Fitting, Banjo Fitting, Bolt and Nuts, Welding Fitting, Special Fitting, Brake Adapter |
| Thread Measure | M10x1,M10x1.25,M11x1.25M12x1,M12x1.25,M20x1.25... 1/8NPT,1/2NPT,1/8x28BSPP,1/4x19 BSPP,1/2x14 BSPP,3/8x19 BSPP... G1/8,1/8BSPT... 3/8x24,7/16x20,7/16x24,3/8x19 Make OEM fittings as per drawing |
| Fitting Angle | 0,10,15,20,25,30,35,40,45,50,55,60,70,90 |
| Fitting Material | Steel, Stainless, Steel, Brass, Al |
| Surface treatment | Yellow zinc,White zinc,Green zinc,Nickel,Chrome,Zn-Ni Alloy |
| PART NO. | THREAD | TUBE O.D. | DIMENSIONS | MPa | ||
| E | C | d | S2 | |||
| NL-12 | M12X1.5 | 6 | 14.5 | 6 | 14 | L |
| NL-14 | M14X1.5 | 8 | 14.5 | 8 | 17 | |
| NL-16 | M16X1.5 | 10 | 15.5 | 10 | 19 | |
| NL-18 | M18X1.5 | 12 | 15.5 | 12 | 22 | |
| NL-22 | M22X1.5 | 15 | 17 | 15 | 27 | |
| NL-26 | M26X1.5 | 18 | 18 | 18 | 32 | |
| NL-30 | M30X2 | 22 | 20 | 22 | 36 | |
| NL-36 | M36X2 | 28 | 21 | 28 | 41 | |
| NL-45 | M45X2 | 35 | 24 | 35 | 50 | |
| NL-52 | M52X2 | 42 | 24 | 42 | 60 | |
| NS-14 | M14X1.5 | 6 | 16.5 | 6 | 17 | S |
| NS-16 | M16X1.5 | 8 | 16.5 | 8 | 19 | |
| NS-18 | M18X1.5 | 10 | 17.5 | 10 | 22 | |
| NS-20 | M20X1.5 | 12 | 17.5 | 12 | 24 | |
| NS-22 | M22X1.5 | 14 | 20.5 | 14 | 27 | |
| NS-24 | M24X1.5 | 16 | 20.5 | 16 | 30 | |
| NS-30 | M30X2 | 20 | 24 | 20 | 36 | |
| NS-36 | M36X2 | 25 | 27 | 25 | 46 | |
| NS-42 | M42X2 | 30 | 29 | 30 | 50 | |
| NS-52 | M52X2 | 38 | 32.5 | 38 | 60 | |
