Male Jic X Male O-Ring Boss 90 Degree 6801 Series Hydraulic Fittings

Male Jic X Male O-Ring Boss 90 Degree 6801 Series Hydraulic Fittings

Customization:	Available
Standard:	DIN, JIS, SAE
Material:	Low Carbon Steel

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

6801

Connection

Female

Surface Treatment

White or Yellow Zinc

Head Type

Round

Thread

DIN, ANSI, GB, JIS, Bsw

Warranty

12 Months

Surface

Zinc Plated

Other Material

Ss

Transport Package

Plastic Bag+Carton Box+Poly Wood Box

Specification

1/4"-2"

Trademark

GD

Origin

China

Packaging & Delivery

Package Size

20.00cm * 20.00cm * 5.00cm

Package Gross Weight

3.000kg

Product Description

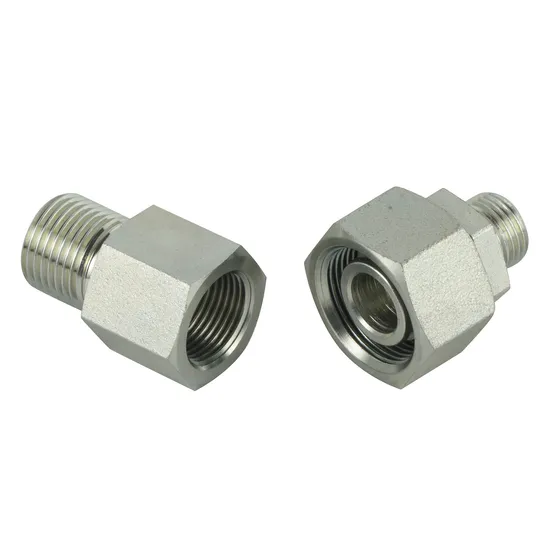

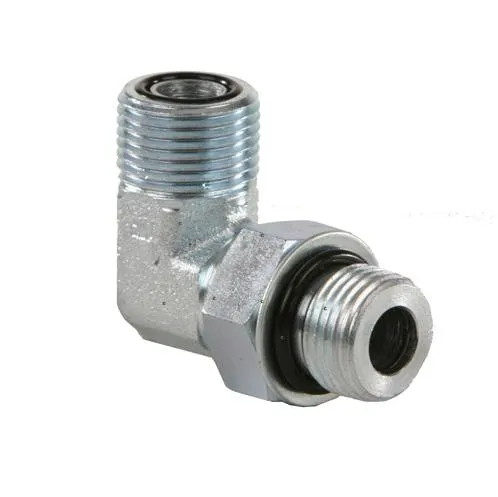

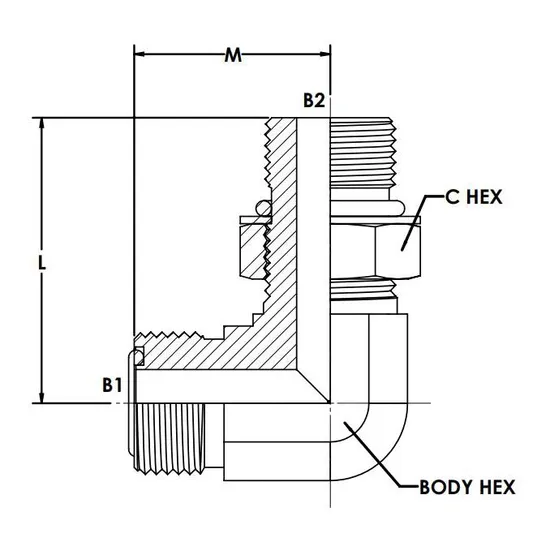

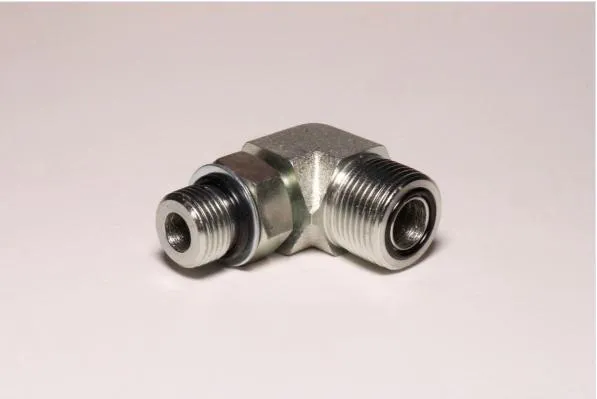

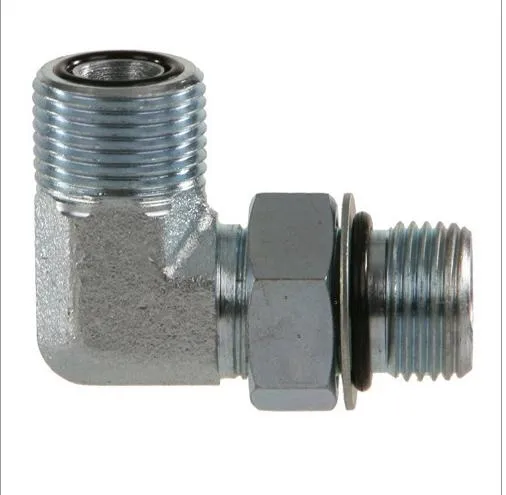

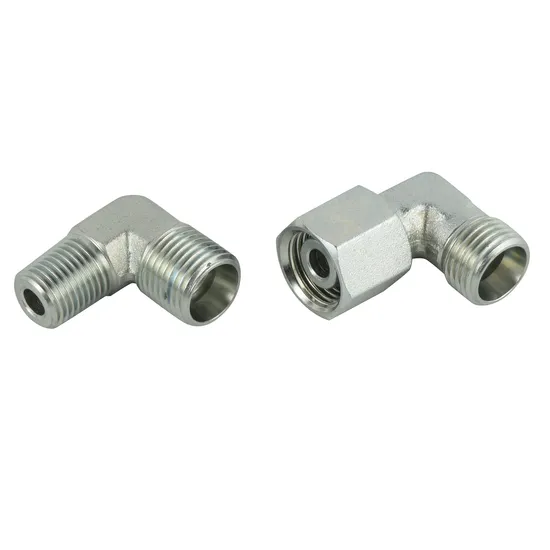

FS6801 -SAE O-Ring Face Seal ORFS Male x SAE O-Ring Boss ORB Male 90° Elbow
Male Jic X Male O-Ring Boss 90 Degree 6801 Series Hydraulic Fittings

TEM#	ITEM NAME
FS6801-04-04	FS6801-04-04 - 90° Elbow, 1/4" ORFS x 1/4" ORB Male (Straight Thread)
FS6801-04-06	FS6801-04-06 - 90° Elbow, 1/4" ORFS x 3/8" ORB Male (#6 Straight Thread)
FS6801-04-08	FS6801-04-08 - 90° Elbow, 1/4" ORFS x 1/2" ORB Male (#8 Straight Thread)
FS6801-06-04	FS6801-06-04 - 90° Elbow, 3/8" ORFS x 1/4" ORB Male (Straight Thread)
FS6801-06-06	FS6801-06-06 - 90° Elbow, 3/8" ORFS x 3/8" ORB Male (#6 Straight Thread)
FS6801-06-08	FS6801-06-08 - 90° Elbow, 3/8" ORFS x 1/2" ORB Male (#8 Straight Thread)
FS6801-06-10	FS6801-06-10 - 90° Elbow, 3/8" ORFS x 5/8" ORB Male (#10 Straight Thread)
FS6801-06-12	FS6801-06-12 - 90° Elbow, 3/8" ORFS x 3/4" ORB Male (#12 Straight Thread)
FS6801-06-16	FS6801-06-16 - 90° Elbow, 3/8" ORFS x 1" ORB Male (#16 Straight Thread)
FS6801-08-06	FS6801-08-06 - 90° Elbow, 1/2" ORFS x 3/8" ORB Male (#6 Straight Thread)
FS6801-08-08	FS6801-08-08 - 90° Elbow, 1/2" ORFS x 1/2" ORB Male (#8 Straight Thread)
FS6801-08-10	FS6801-08-10 - 90° Elbow, 1/2" ORFS x 5/8" ORB Male (#10 Straight Thread)
FS6801-08-12	FS6801-08-12 - 90° Elbow, 1/2" ORFS x 3/4" ORB Male (#12 Straight Thread)
FS6801-10-08	FS6801-10-08 - 90° Elbow, 5/8" ORFS x 1/2" ORB Male (#8 Straight Thread)
FS6801-10-10	FS6801-10-10 - 90° Elbow, 5/8" ORFS x 5/8" ORB Male (#10 Straight Thread)
FS6801-10-12	FS6801-10-12 - 90° Elbow, 5/8" ORFS x 3/4" ORB Male (#12 Straight Thread)
FS6801-12-08	FS6801-12-08 - 90° Elbow, 3/4" ORFS x 1/2" ORB Male (#8 Straight Thread)
FS6801-12-10	FS6801-12-10 - 90° Elbow, 3/4" ORFS x 5/8" ORB Male (#10 Straight Thread)
FS6801-12-12	FS6801-12-12 - 90° Elbow, 3/4" ORFS x 3/4" ORB Male (#12 Straight Thread)
FS6801-12-16	FS6801-12-16 - 90° Elbow, 3/4" ORFS x 1" ORB Male (#16 Straight Thread)
FS6801-16-12	FS6801-16-12 - 90° Elbow, 1" ORFS x 3/4" ORB Male (#12 Straight Thread)
FS6801-16-16	FS6801-16-16 - 90° Elbow, 1" ORFS x 1" ORB Male (#16 Straight Thread)
FS6801-16-20	FS6801-16-20 - 90° Elbow, 1" ORFS x 1 1/4" ORB Male (#20 Straight Thread)
FS6801-20-16	FS6801-20-16 - 90° Elbow, 1-1/4" ORFS x 1" ORB Male (#16 Straight Thread)
FS6801-20-20	FS6801-20-20 - 90° Elbow, 1-1/4" ORFS x 1 1/4" ORB Male (#20 Straight Thread)
FS6801-24-24	FS6801-24-24 - 90° Elbow, 1-1/2" ORFS x 1 1/2" ORB Male (#24 Straight Thread)

Dash Size	Inch Size	Nominal Thread Size	Male Thread (O.D.)	Female Thread (I.D.)
4	1/4"	9/16 -18	9/16" (.56)	.51"
6	3/8"	11/16 -16	11/16" (.68)	.63"
8	1/2"	13/16 -16	13/16" (.81)	.75"
10	3/8"	1 -14	1" (1.00)	.93"
12	3/4"	1 3/16 -12	1 3/16" (1.18)	1.10"
16	1"	1 7/16 -12	1 7/16" (1.44)	1.36"
20	1 1/4"	1 11/16 -12	1 11/16" (1.68)	1.60"
24	1 1/2"	2 -12	2" (2.00)	1.92"
