Carbon Steel DIN 24 Cone Sleeve Type Straight Adaptors

Carbon Steel DIN 24 Cone Sleeve Type Straight Adaptors

Customization:	Available
Certification:	GS, RoHS, CE, ISO9001
Pressure:	Medium Pressure

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

GD1C/1D -RN

Work Temperature

Normal Temperature

Thread Type

Internal Thread

Installation

Flared Type

Material

Carbon Steel

Type

Quick Connector

Warranty

12 Months

Surface

Zinc Plated

Other

Stainless Steel

Quantity

Best

Transport Package

Exporting Standard

Specification

1200*1000*1000mm

Trademark

GD

Origin

China

Production Capacity

500000/Month

Packaging & Delivery

Package Size

20.00cm * 20.00cm * 30.00cm

Package Gross Weight

10.000kg

Product Description

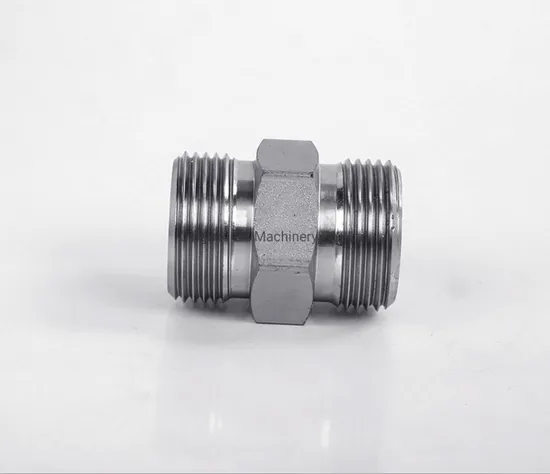

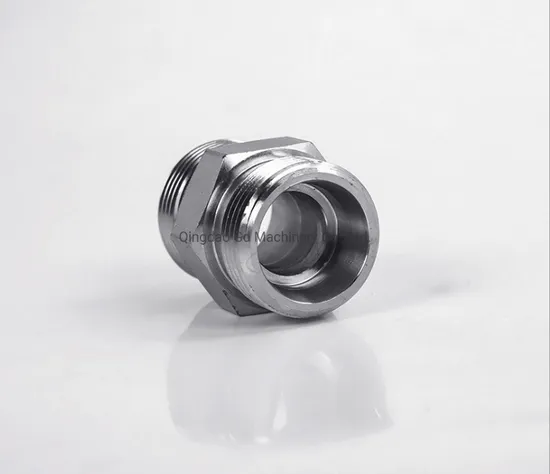

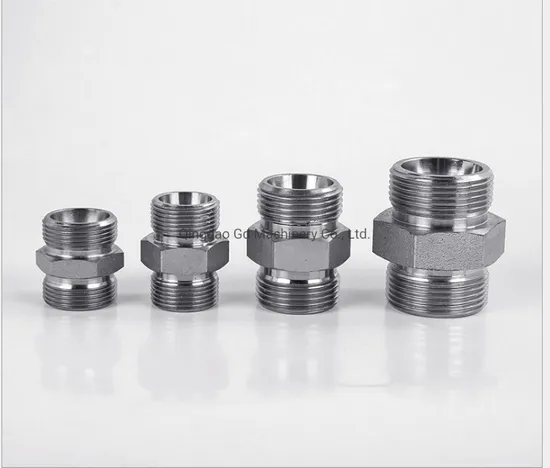

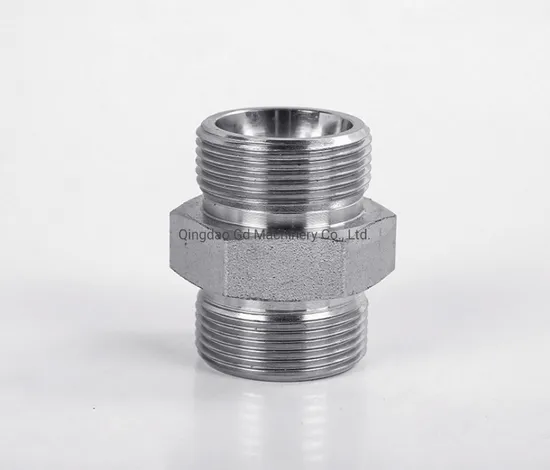

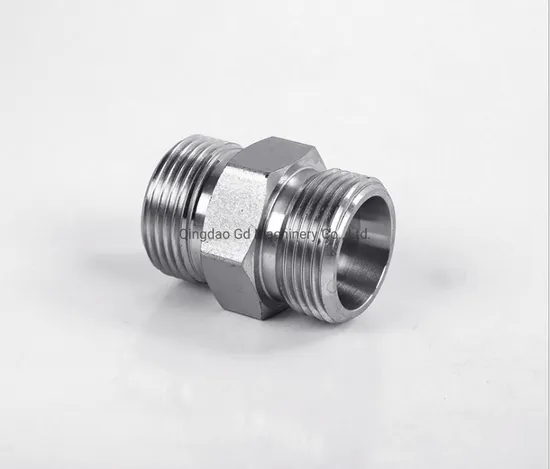

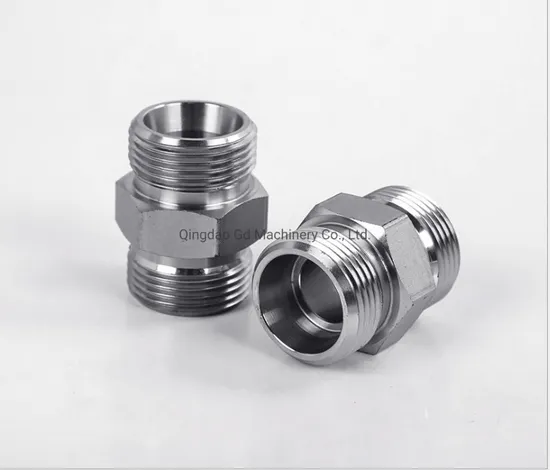

Carbon steel DIN 24 CONE SLEEVE TYPE STRAIGHT ADAPTORS

Straight coupling

hydraulic adaptors
Material: Carbon steel/SS
Equipment: CNC lathe
Surface treatment: Zinc Plated

Body RIng

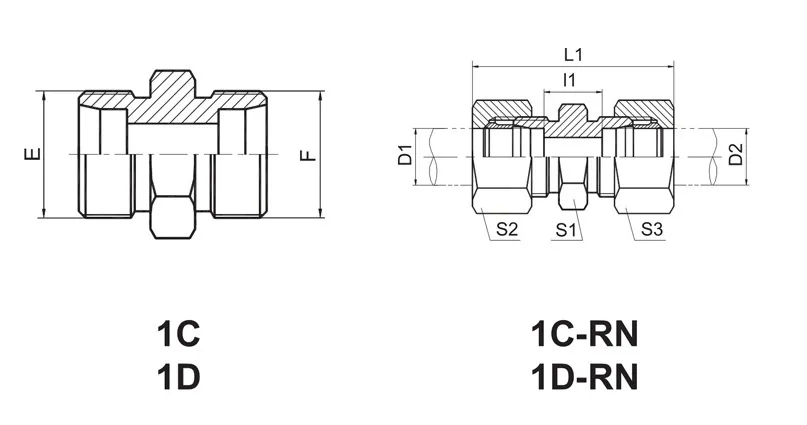

Note:In case if you are interested to order the adapter in complete set with cutting ring and nut,
it is necessary to insert suffix"RN"after our part No.,For example1C-12RN.

We supply the OEM products as per drawings.

For more information please contact us Freely.

Dash Size	Inch Size	Nominal Thread Size	Male Thread (O.D.)	Female Thread (I.D.)
4	1/4"	9/16 -18	9/16" (.56)	.51"
6	3/8"	11/16 -16	11/16" (.68)	.63"
8	1/2"	13/16 -16	13/16" (.81)	.75"
10	3/8"	1 -14	1" (1.00)	.93"
12	3/4"	1 3/16 -12	1 3/16" (1.18)	1.10"
16	1"	1 7/16 -12	1 7/16" (1.44)	1.36"
20	1 1/4"	1 11/16 -12	1 11/16" (1.68)	1.60"
24	1 1/2"	2 -12	2" (2.00)	1.92"
