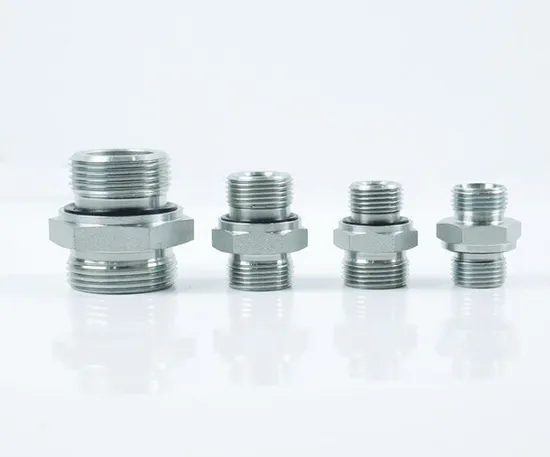

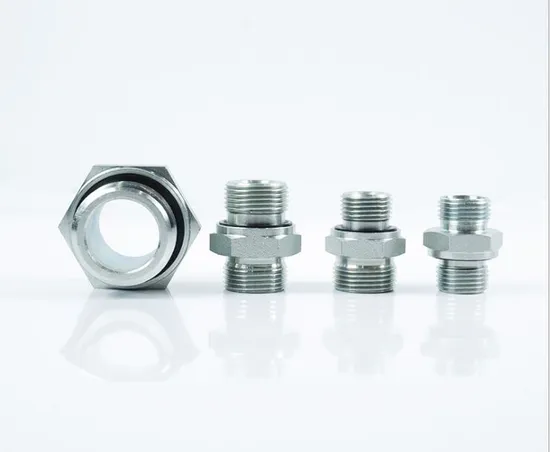

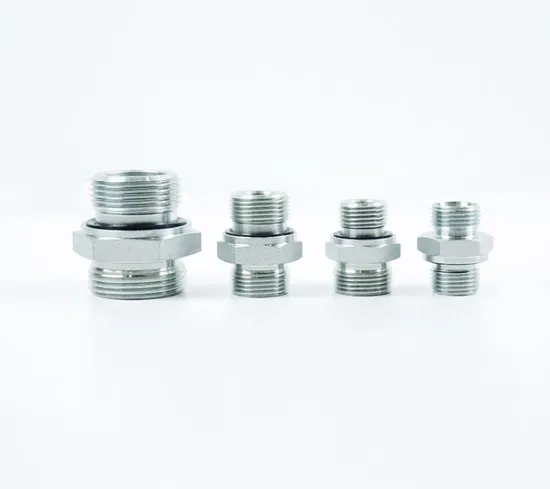

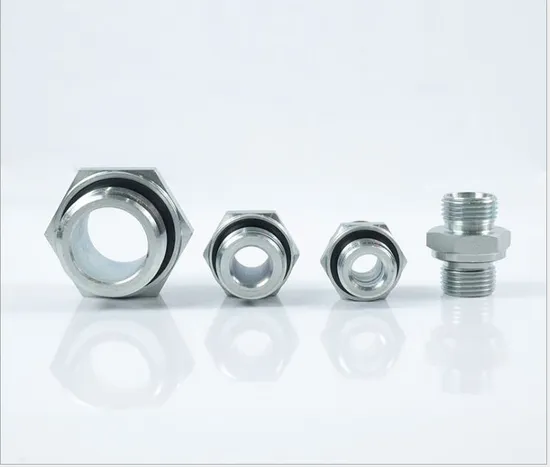

1cm Metric Male Thread Adaptor with Captive Seal

1cm Metric Male Thread Adaptor with Captive Seal

Customization:	Available
Certification:	GS, RoHS, CE, ISO9001
Pressure:	Low Pressure

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

GD1CM

Work Temperature

Normal Temperature

Thread Type

Internal Thread

Installation

Flared Type

Material

Carbon Steel

Type

Cut Through

Transport Package

Exporting Standard

Specification

1200*1000*1000mm

Trademark

GD

Origin

China

Production Capacity

500000/Month

Packaging & Delivery

Package Size

20.00cm * 20.00cm * 30.00cm

Package Gross Weight

3.000kg

Product Description

Cabon steel Metric thread coupling with seal

Carbon steel DIN 24 CONE SLEEVE TYPE STRAIGHT ADAPTORS

Straight coupling

hydraulic adaptors
Material: Carbon steel/SS
Equipment: CNC lathe
Surface treatment: Zinc Plated

Body RIng
1cm Metric Male Thread Adaptor with Captive Seal

PART NO.	THREAD		TUBE O.D.	DIMENSIONS					MPa
PART NO.	E	F	D1	B	l1	L1	S1	S2	MPa
1CM-12-10WD	M12X1.5	M10X1	6	8	8.5	23	14	14	31.5 L
1CM-14-12WD	M14X1.5	M12X1.5	8	12	10	25	17	17
1CM-16-12WD	M16X1.5	M12X1.5	10	12	11	25	17	19
1CM-16-14WD	M16X1.5	M14X1.5	10	12	11	26	19	19
1CM-16-18WD	M16X1.5	M18X1.5	10	12	12.5	27	24	19
1CM-18-16WD	M18X1.5	M16X1.5	12	12	12.5	27	22	22
1CM-18WD	M18X1.5	M18X1.5	12	12	12.5	27	24	22
1CM-18-22WD	M18X1.5	M22X1.5	12	14	14	29	27	22
1CM-22-18WD	M22X1.5	M18X1.5	15	12	13.5	29	24	27
1CM-22WD	M22X1.5	M22X1.5	15	14	15	30	27	27
1CM-26-22WD	M26X1.5	M22X1.5	18	14	14.5	31	27	32	16 L
1CM-30-26WD	M30X2	M26X1.5	22	16	16.5	33	32	36
1CM-30-27WD	M30X2	M27X2	22	16	16.5	33	32	36
1CM-36-33WD	M36X2	M33X2	28	18	17.5	34	41	41
1CM-45-42WD	M45X2	M42X2	35	20	17.5	39	50	50
1CM-52-48WD	M52X2	M48X2	42	22	19	42	55	60
1DM-14-12WD	M14X1.5	M12X1.5	6	12	13	28	17	17	63 S
1DM-16-14WD	M16X1.5	M14X1.5	8	12	15	30	19	19
1DM-18-16WD	M18X1.5	M16X1.5	10	12	15	31	22	22
1DM-20-18WD	M20X1.5	M18X1.5	12	12	17	33	24	24
1DM-22-20WD	M22X1.5	M20X1.5	14	14	19	37	27	27
1DM-24-22WD	M24X1.5	M22X1.5	16	14	18.5	37	27	30	40 S
1DM-30-27WD	M30X2	M27X2	20	16	20.5	42	32	36
1DM-36-33WD	M36X2	M33X2	25	18	23	47	41	46
1DM-42WD	M42X2	M42X2	30	20	23.5	50	50	50
1DM-52-48WD	M52X2	M48X2	38	22	26	57	55	60	31.5S
Note:In case if you are interested to order the adapter in complete set with cutting ring and nut, it is necessary to insert suffix"RN"after our part No.,For example1CB-16-06WD/RN.
