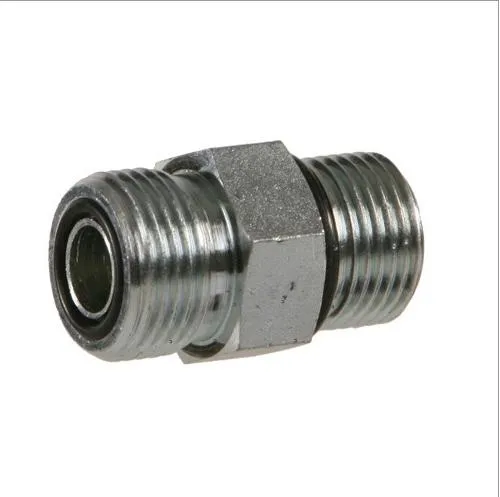

Fs6400 Face Seal Orfs Male SAE O-Ring Boss Orb Male Straight Adapter

Fs6400 Face Seal Orfs Male SAE O-Ring Boss Orb Male Straight Adapter

Customization:	Available
Standard:	DIN, JIS, SAE
Material:	Low Carbon Steel

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

SF6400

Connection

Female

Surface Treatment

White or Yellow Zinc

Head Type

Round

Thread

DIN, ANSI, GB, JIS, Bsw

Transport Package

Plastic Bag+Carton Box+Poly Wood Box

Specification

1/4"-2"

Trademark

GD

Origin

China

Packaging & Delivery

Package Size

20.00cm * 20.00cm * 5.00cm

Package Gross Weight

3.000kg

Product Description

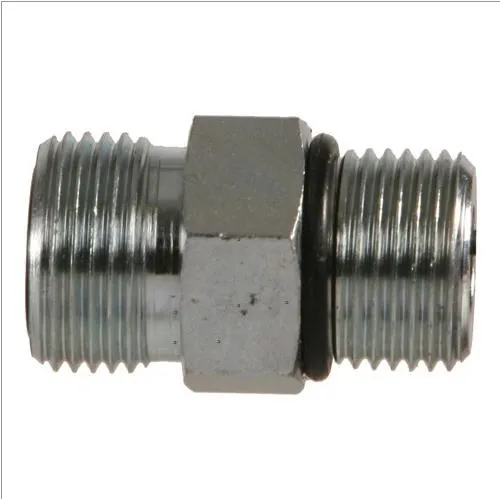

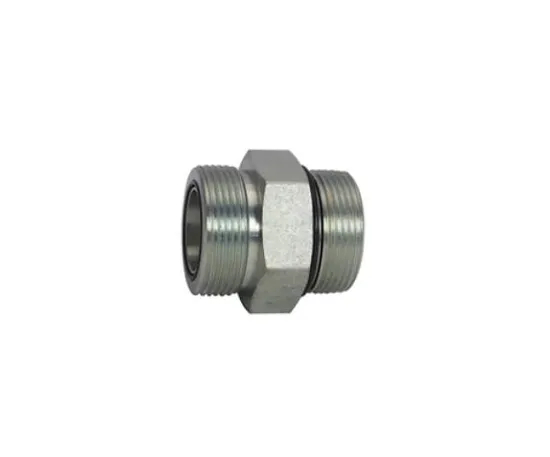

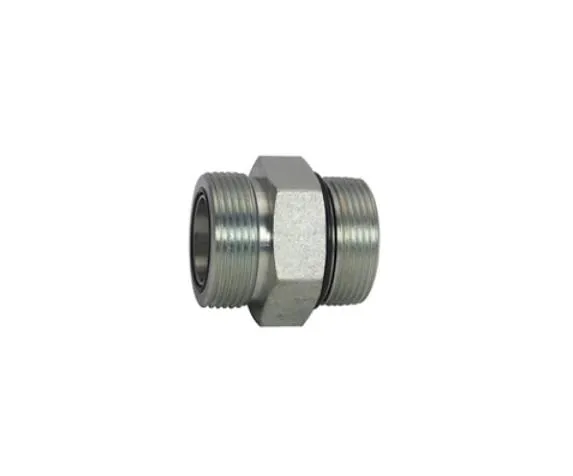

SAE O-Ring Face Seal ORFS Male x SAE O-Ring Boss ORB Male Straight Adapter
Fs6400 Face Seal Orfs Male SAE O-Ring Boss Orb Male Straight Adapter

ITEM#	ITEM NAME
FS6400-04-03	FS6400-04-03 - 1/4" ORFS x 3/16" ORB Male (Straight Thread)
FS6400-04-04	FS6400-04-04 - 1/4" ORFS x 1/4" ORB Male (Straight Thread)
FS6400-04-05	FS6400-04-05 - 1/4" ORFS x 5/16" ORB Male (#5 Straight Thread)
FS6400-04-06	FS6400-04-06 - 1/4" ORFS x 3/8" ORB Male (#6 Straight Thread)
FS6400-04-08	FS6400-04-08 - 1/4" ORFS x 1/2" ORB Male (#8 Straight Thread)
FS6400-06-04	FS6400-06-04 - 3/8" ORFS x 1/4" ORB Male (Straight Thread)
FS6400-06-06	FS6400-06-06 - 3/8" ORFS x 3/8" ORB Male (#6 Straight Thread)
FS6400-06-08	FS6400-06-08 - 3/8" ORFS x 1/2" ORB Male (#8 Straight Thread)
FS6400-06-10	FS6400-06-10 - 3/8" ORFS x 5/8" ORB Male (#10 Straight Thread)
FS6400-06-12	FS6400-06-12 - 3/8" ORFS x 3/4" ORB Male (#12 Straight Thread)
FS6400-08-06	FS6400-08-06 - 1/2" ORFS x 3/8" ORB Male (#6 Straight Thread)
FS6400-08-08	FS6400-08-08 - 1/2" ORFS x 1/2" ORB Male (#8 Straight Thread)
FS6400-08-10	FS6400-08-10 - 1/2" ORFS x 5/8" ORB Male (#10 Straight Thread)
FS6400-08-12	FS6400-08-12 - 1/2" ORFS x 3/4" ORB Male (#12 Straight Thread)
FS6400-08-16	FS6400-08-16 - 1/2" ORFS x 1" ORB Male (#16 Straight Thread)
FS6400-10-08	FS6400-10-08 - 5/8" ORFS x 1/2" ORB Male (#8 Straight Thread)
FS6400-10-10	FS6400-10-10 - 5/8" ORFS x 5/8" ORB Male (#10 Straight Thread)
FS6400-10-12	FS6400-10-12 - 5/8" ORFS x 3/4" ORB Male (#12 Straight Thread)
FS6400-12-08	FS6400-12-08 - 3/4" ORFS x 1/2" ORB Male (#8 Straight Thread)
FS6400-12-10	FS6400-12-10 - 3/4" ORFS x 5/8" ORB Male (#10 Straight Thread)
FS6400-12-12	FS6400-12-12 - 3/4" ORFS x 3/4" ORB Male (#12 Straight Thread)
FS6400-12-16	FS6400-12-16 - 3/4" ORFS x 1" ORB Male (#16 Straight Thread)
FS6400-16-12	FS6400-16-12 - 1" ORFS x 3/4" ORB Male (#12 Straight Thread)
FS6400-16-16	FS6400-16-16 - 1" ORFS x 1" ORB Male (#16 Straight Thread)
FS6400-16-20	FS6400-16-20 - 1" ORFS x 1 1/4" ORB Male (#20 Straight Thread)
FS6400-20-16	FS6400-20-16 - 1-1/4" ORFS x 1" ORB Male (#16 Straight Thread)
FS6400-20-20	FS6400-20-20 - 1-1/4" ORFS x 1 1/4" ORB Male (#20 Straight Thread)
FS6400-20-24	FS6400-20-24 - 1-1/4" ORFS x 1 1/2" ORB Male (#24 Straight Thread)
FS6400-24-20	FS6400-24-20 - 1-1/2" ORFS x 1 1/4" ORB Male (#20 Straight Thread)
FS6400-24-24	FS6400-24-24 - 1-1/2" ORFS x 1 1/2" ORB Male (#24 Straight Thread)

Dash Size	Inch Size	Nominal Thread Size	Male Thread (O.D.)	Female Thread (I.D.)
4	1/4"	9/16 -18	9/16" (.56)	.51"
6	3/8"	11/16 -16	11/16" (.68)	.63"
8	1/2"	13/16 -16	13/16" (.81)	.75"
10	3/8"	1 -14	1" (1.00)	.93"
12	3/4"	1 3/16 -12	1 3/16" (1.18)	1.10"
16	1"	1 7/16 -12	1 7/16" (1.44)	1.36"
20	1 1/4"	1 11/16 -12	1 11/16" (1.68)	1.60"
24	1 1/2"	2 -12	2" (2.00)	1.92"
